Brand: Perlove Medical | Category: Medical Equipment

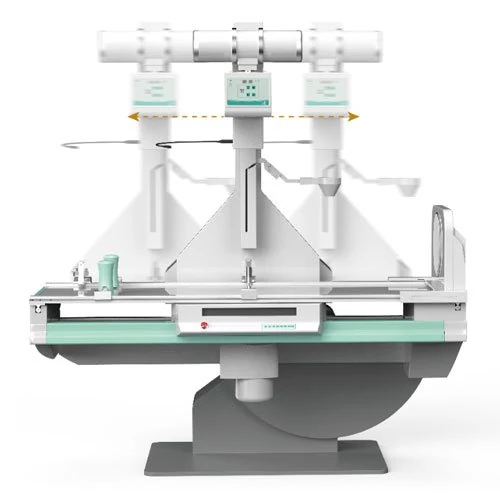

Perlove PLD5000 X-ray System. Radiography and fluoroscopy family with an image-intensifier and CCD imaging chain. The published comparison identifies PLD5000A and PLD5000C, both with 40 kW generators and different foot-stand and SID configurations. For a Bangladesh equipment enquiry, send the examination workload, room dimensions, generator and detector requirements, and patient positioning. Confirm the exact model, detector and software options, installation responsibilities, current documentation, acceptance testing, training and service terms in the written offer. Published manufacturer configurations do not establish local stock or current availability.
| Parameter | Value |
|---|---|
| Published model / family | PLD5000A, PLD5000C |
| Equipment family | Floor & Table Digital Radiography |
| Published output | 40 kW |
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PLD5000A | PLD5000C |
|---|---|---|
| Output power | 40 kW | 40 kW |
| Supply voltage | 380 V ± 38 V | 380 V ± 38 V |
| Radiography voltage | 44–125 kV | 44–125 kV |
| Radiography current | 32–500 mA | 32–500 mA |
| Fluoroscopy voltage | 44–110 kV | 44–110 kV |
| Foot stand | Fixed | Rotating |
| SID | 1100 mm | 1100 mm / 1500 mm |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Perlove Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
X-ray radiography system with a published 40 kW generator and table arrangement. A flat-panel detector is described as an optional digital upgrade; it should be identified explicitly in the offer.
Digital radiography system with a portable flat-panel detector and DICOM 3.0 interface. The published specification lists a 32 kW generator with a 40–150 kV radiography range.
Radiography and fluoroscopy family with an image-intensifier and CCD chain. The published comparison lists PLD5500 at 56 kW and PLD5600 at 50 kW; digital workstation options require confirmation.
