Brand: Perlove Medical | Category: Medical Equipment

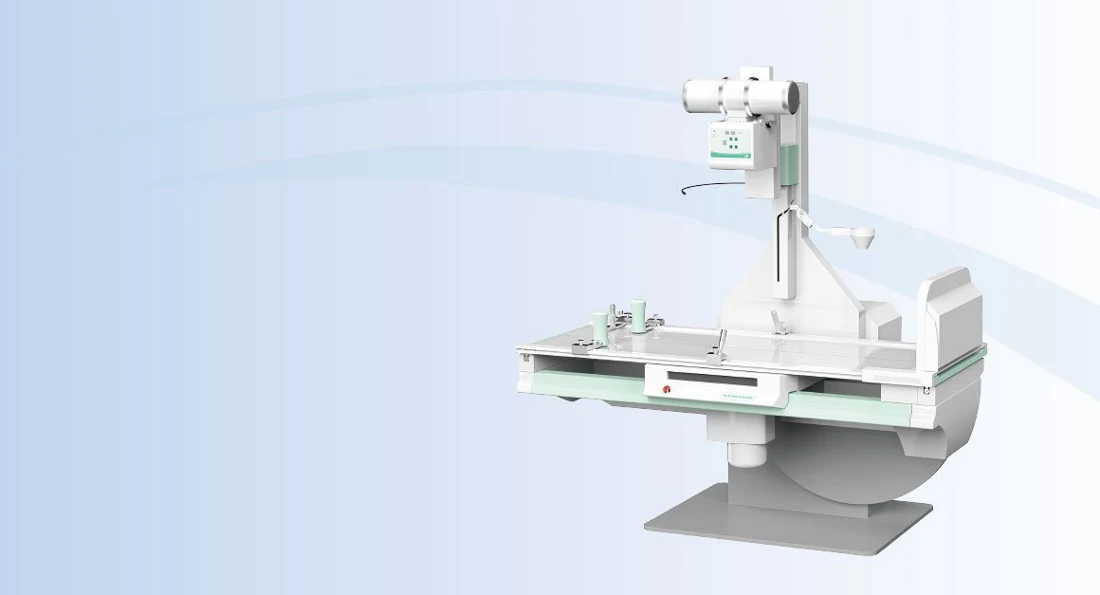

Perlove PLD5500 / PLD5600 X-ray R&F. Radiography and fluoroscopy family with an image-intensifier and CCD chain. The published comparison lists PLD5500 at 56 kW and PLD5600 at 50 kW; digital workstation options require confirmation. For a Bangladesh equipment enquiry, send the examination workload, room dimensions, generator and detector requirements, and patient positioning. Confirm the exact model, detector and software options, installation responsibilities, current documentation, acceptance testing, training and service terms in the written offer. Published manufacturer configurations do not establish local stock or current availability.
| Parameter | Value |
|---|---|
| Published model / family | PLD5500, PLD5600 |
| Equipment family | Floor & Table Digital Radiography |
| PLD5500 output | 56 kW |
| PLD5600 output | 50 kW |
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PLD5500 | PLD5600 |
|---|---|---|
| Output power | 56 kW | 50 kW |
| Supply voltage | 380 V ± 38 V | 380 V ± 38 V |
| Radiography voltage | 40–150 kV | 40–150 kV |
| Radiography current | 10–710 mA | 10–630 mA |
| Fluoroscopy voltage | 40–125 kV | 40–125 kV |
| Fluoroscopy current | 0.5–10 mA | 0.5–10 mA |
| Foot stand | Fixed | Rotating |
Manufacturer catalogue checked 2026-09-28.
