Brand: Meicen | Category: Medical Equipment

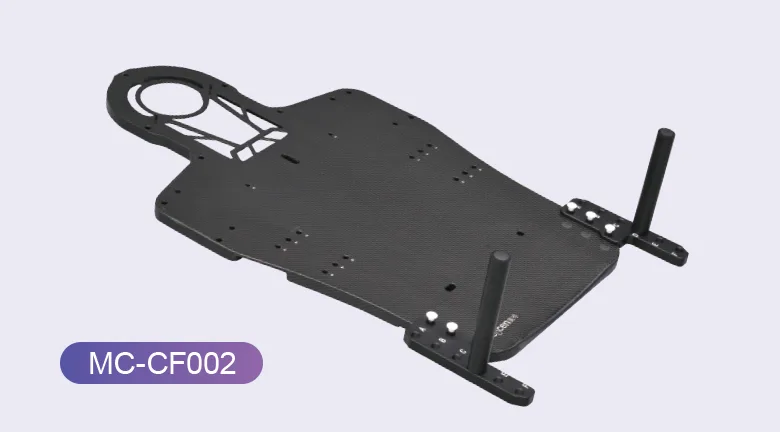

This pin-lock C-Series plate is set up for the head, shoulders and breast and takes all S-Type thermoplastic masks as well as Meicen neck and breast masks. Headrest indexing uses standard silverman pins, and the plate is dual-configured so the same device serves adult and paediatric patients. Meicen lists compatibility with the Overhead Arm Support RC-ASF01 and leg positioner cushions. The underside is curved for patient comfort and several fixing positions are provided so immobilisation can be adapted to the individual.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Meicen equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
Meicen designed the C-Series pelvic baseplate for reproducible and comfortable patient set-up, and configures it for trunk masks in small, medium and large sizes. An adjustable scale accommodates different body widths, the profile is contoured for comfort, and the sides are cut away so the plate is simple to fit and carry. A groin lock for trunk masks is offered as an option, and the plate provides positioning for a leg separator and works with the leg positioner cushions.
Built around a pin-lock fixing, the C-Series all-in-one baseplate supports the head, head and shoulders, thorax, pelvis and full body, and Meicen configures it for both adult and paediatric treatments. It is light in weight and carries an adjustable shoulder retractor for shoulder suppression, with several fixing locations so immobilisation can be tuned patient by patient. Compatibility covers all S-type masks, including standard and narrow shoulder versions, along with Meicen pin-lock type masks. Meicen describes the wider C-Series AIO solution as a modular system for lesions of the brain, head and neck, thorax, breast and lung, and pelvis, adding that the baseplate works with its thermoplastic masks to give submillimetre immobilisation accuracy for stereotactic treatments.
A pin-lock design aimed at head and shoulder immobilisation, this C-Series plate accepts all S-Type thermoplastic masks and indexes headrests with standard silverman pins. Meicen publishes it at 600(L) x 606(W)/mm and states that it is dual-configured for adult and paediatric patients. Several fixing locations are available so the set-up can be matched to each patient.
