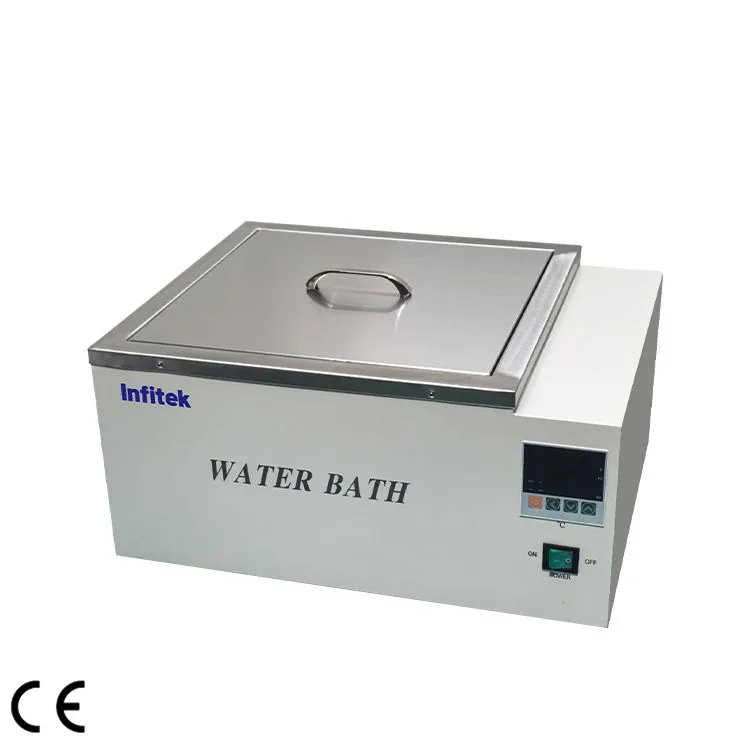

Infitek Water Bath, WB-M Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Water Bath, WB-M Series is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: WB-M20, WB-M30, WB-M40, WB-M45, WB-M50, WB-M80. Compare the remaining models in the specification tables. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | WB-M20 | WB-M30 | WB-M40 | WB-M45 | WB-M50 | WB-M80 | WB-M100 | WB-M150 | WB-M250 |
|---|---|---|---|---|---|---|---|---|---|
| Volume (L) | 20 | 30 | 40 | 45 | 50 | 80 | 100 | 150 | 250 |
| Temperature Range (℃) | RT.-100 | RT.-100 | RT.-100 | RT.-100 | RT.-100 | RT.-100 | RT.-100 | RT.-100 | RT.-100 |
| Temperature Fluctuation(℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±1 |
| Timing Range ( minutes) | 0– 999 | 0– 999 | 0– 999 | 0– 999 | 0– 999 | 0– 999 | 0– 999 | 0– 999 | 0– 999 |
| Dimension of Working Chamber(mm) | 320*320*200 | 400*400*200 | 450*450*200 | 450*450*220 | 480*480*220 | 600*450*300 | 650*480*320 | 800*500*380 | 850*600*500 |
| Power(W) | 1000 | 1500 | 1800 | 2000 | 2200 | 3500 | 4000 | 6000 | 12000 |
| Electricity | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz |
| External Dimension (mm) | 480*390*240 | 560*470*240 | 610*520*240 | 610*520*260 | 640*550*260 | 760*520*340 | 810*550*360 | 960*570*400 | 1010*670*540 |
| N.W./G.W.(kg) | 10/11 | 13/15 | 19/21 | 20/23 | 23/27 | 31/35 | 35/45 | 63/75 | 86/100 |
| Shipping Dimension (mm) | 540*450*280 | 620*530*280 | 670*580*280 | 670*580*300 | 700*610*300 | 700*610*300 | 900*650*450 | 1140*700*660 | 1100*770*630 |
Manufacturer catalogue checked 2026-09-28.
