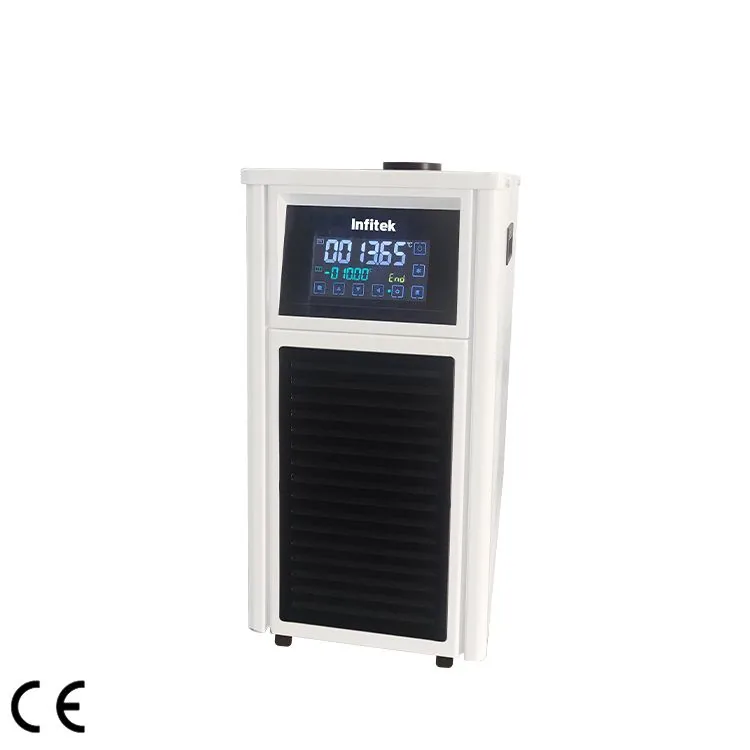

Infitek Low Temperature Circulator, RECL20-2X
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Low Temperature Circulator, RECL20-2X is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: RECL20-2X. Published details include Temperature Range: -20°C to RT.; Tank Volume: 2.5L. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RECL20-2X |
|---|---|
| Temperature Range | -20°C to RT. |
| Min.Temperature (No-load) | -20℃ |
| Temperature Resolution | 0.01℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Tank Volume | 2.5L |
| Bath Fluids | Ethanol, Ethylene glycol, Antifreeze |
| Max. Flow Rate | 18L/min |
| Max. Head | 7m |
| Pressure | 0.6 bar |
| Display | 5-inch touch screen digital display: temperature and time settings, refrigeration and circulation indicators. |
| Cooling Capacity | 700W (20℃), 420W (0℃), 280W (-10℃), 120W (-20℃) |
| Compressor Power/Current | 480W/3.1A |
| Circulation Interface | Pagoda joint with φ10mm outer diameter |
| Tank Material | SUS304 Stainless Steel |
| Refrigerant | R404A |
| Housing Material | Cold-rolled steel with electrostatic spray (SPCC) |
| Drain Valve | Yes |
| Timer Function | Yes |
| Level Indicator Window & Low Level Alarm | Yes |
| Electricity | 220~240V, 50Hz |
| Total Power | 580W |
| Ambient Temperature | 5-35℃ |
| External Dimensions (W*D*H) | 240*420*475mm |
| Package Dimensions (W*D*H) | 310*475*655mm |
| N.W./G.W. | 28kg/34kg |
| Optional Features | RS485 or RS232 communication interface; Parallel interface. |
Manufacturer catalogue checked 2026-09-28.
