Brand: Infitek | Category: Scientific & Laboratory Equipment

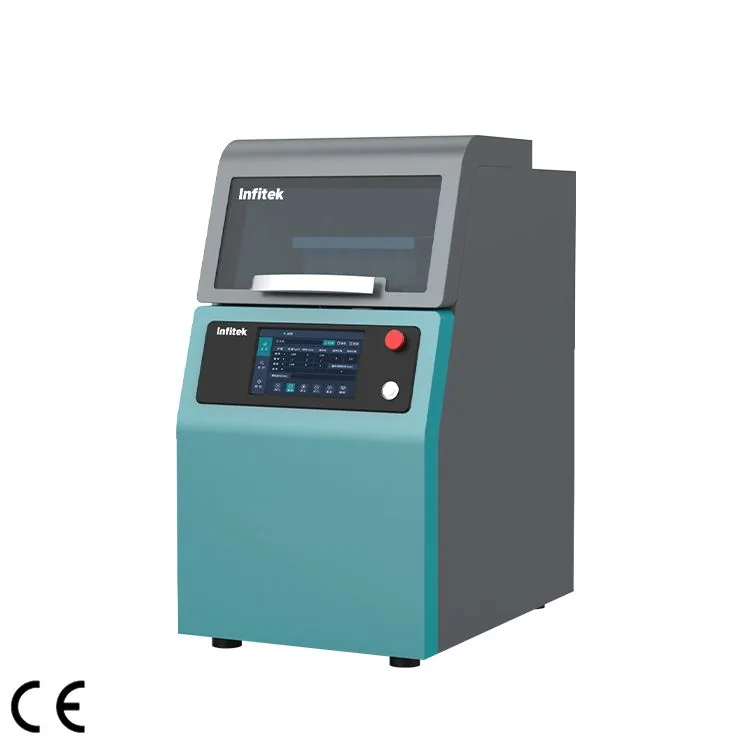

Infitek Vertical Oscillator, SHK-R20V is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: SHK-R20V. Published details include Max. Sample Capacity: 576 positions. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Food Safety | Rapid Sample Processing | Life Science |
|---|
| Model | SHK-R20V |
|---|---|
| High Throughput | Up to 576 samples can be processed in one batch |
| Oscillation Speed | 500-1800rpm, Max. Amplitude: 32mm |
| Oscillation Cycle | Max. 10mins for each oscillation step, max. 4 steps; Able to set max. 20 cycles of repeating the oscillation method, max. rest time between cycles is 60mins. |
| Appointment Operation | Max.12 hours |
| Gradient Program Control | 4 steps of gradient setting |
| Sample Rack | 20*50mL, 38*15mL, 10*100mL, 54*2mL; Other specifications can be customized; |
| Max. Sample Capacity | 576 positions |
| Control Software | 7-inch color touch screen to display real-time operating status |
| Method Storage | Max.50 methods |
| Overweight Detection | Perform weight detection before operation to prevent the equipment from running overweight |
| Non-Operating Storage Environment | Temperature: 0℃~40℃ (32℉~104℉) Humidity: 20%~85% RH |
| Operating Environment | Temperature: 10℃~40℃ (50℉~104℉) Humidity: 20%~80% RH |
| Electricity | AC 200~240V, 50/60Hz, 1500W |
| External Dimension | 370*520*690mm |
| Package Dimension | 800*600*1200mm (Including 1 pallet) |
| N.W./G.W. | 70kg/96kg (Including 1 pallet) |
Manufacturer catalogue checked 2026-09-28.
