Brand: Infitek | Category: Scientific & Laboratory Equipment

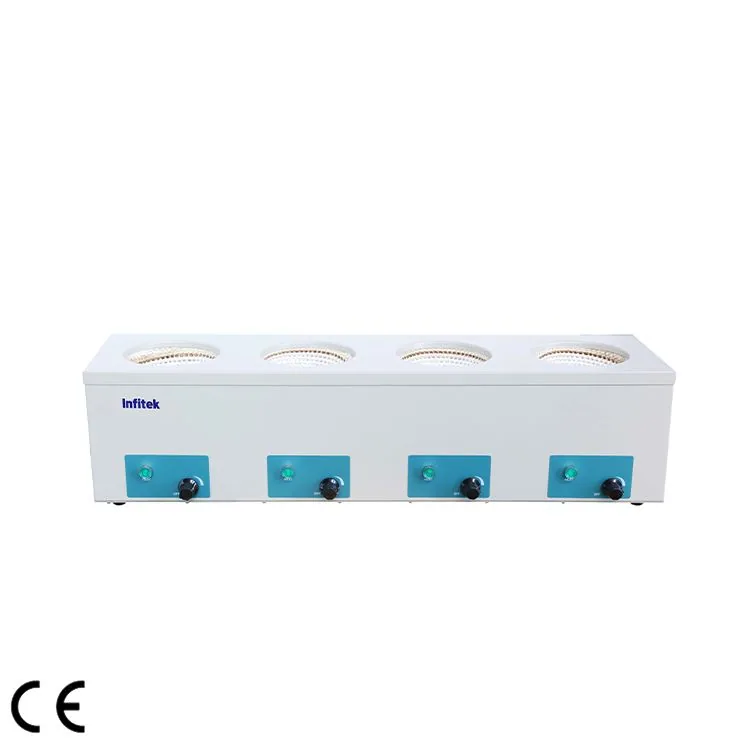

Infitek Several Rows Heating Mantles, HMD Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: HMD-2P5, HMD-2P10, HMD-2P20, HMD-4P5, HMD-4P10, HMD-4P20. Compare the remaining models in the specification tables. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HMD-2P5 | HMD-2P10 | HMD-2P20 | HMD-4P5 | HMD-4P10 | HMD-4P20 | HMD-6P2 | HMD-6P5 | HMD-6P10 | HMD-6P20 |
|---|---|---|---|---|---|---|---|---|---|---|
| Function / Specification; (ml) | 2; ×; 250 | 2; ×; 500 | 2; ×; 1000 | 4; ×; 250 | 4; ×; 500 | 4; ×; 1000 | 6; ×; 100 | 6; ×; 250 | 6; ×; 500 | 6; ×; 1000 |
| Function / Heating; mode | Surface heat conduction | Surface heat conduction | Surface heat conduction | Surface heat conduction | Surface heat conduction | Surface heat conduction | Surface heat conduction | Surface heat conduction | Surface heat conduction | Surface heat conduction |
| Function / Surface; Max.; temperature | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ |
| Function / Temp.; range | Rt+vfc20～250℃ | Rt+vfc20～250℃ | Rt+vfc20～250℃ | Rt+vfc20～250℃ | Rt+vfc20～250℃ | Rt+vfc20～250℃ | Rt+vfc20～250℃ | Rt+vfc20～250℃ | Rt+vfc20～250℃ | Rt+vfc20～250℃ |
| Structure / Heating; element | Nickel chromium alloy wire | Nickel chromium alloy wire | Nickel chromium alloy wire | Nickel chromium alloy wire | Nickel chromium alloy wire | Nickel chromium alloy wire | Nickel chromium alloy wire | Nickel chromium alloy wire | Nickel chromium alloy wire | Nickel chromium alloy wire |
| Structure / Outer; shell | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying |
| Structure / Heating; Power; （kW） | 2×; 0.15 | 2×; 0.25 | 2×; 0.35 | 4×; 0.15 | 4×; 0.25 | 4×; 0.35 | 6×; 0.1 | 6×; 0.15 | 6×; 0.25 | 6×; 0.35 |
| Controller / Work; model | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous |
| Specification / Exterior; Size; (mm) | 320; *160; *170 | 360; *180; *180 | 420; *210; *200 | 610; *160; *170 | 690; *180; *180 | 810; *210; *200 | 820; *140; *160 | 940; *160; *170 | 1060; *180; *180 | 1240; *210; *200 |
| Specification / Packing; size(mm) | 360; *190; *200 | 400; *220; *210 | 570; *180; *190 | 650; *190; *200 | 730; *220; *210 | 850; *250; *230 | 860; *180; *190 | 980; *190; *200 | 1090*280*240 | 1280; *250; *230 |
| Specification / Voltage | 100～120V or 200～240V | 100～120V or 200～240V | 100～120V or 200～240V | 100～120V or 200～240V | 100～120V or 200～240V | 100～120V or 200～240V | 200～240V | 200～240V | 200～240V | 200～240V |
| Specification / N.W.(Kg) | 4 | 4 | 7 | 8 | 8 | 14 | 12 | 12 | 12 | 21 |
| Specification / G.W.(Kg) | 5 | 5 | 8 | 10 | 10 | 16 | 15 | 15 | 14 | 24 |
Manufacturer catalogue checked 2026-09-28.
