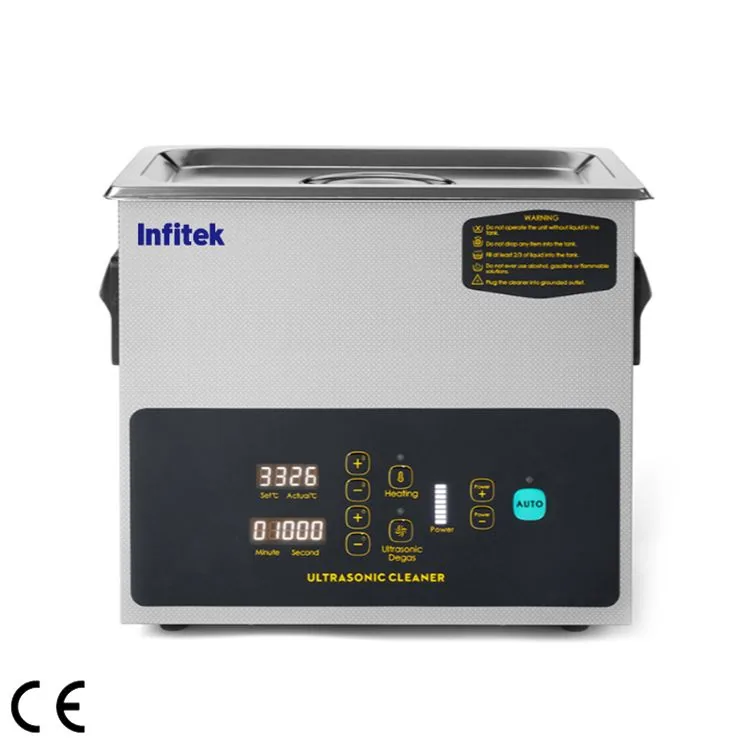

Infitek Ultrasonic Cleaner, USC-DP Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Ultrasonic Cleaner, USC-DP Series is listed in VVON's laboratory washers & ultrasonic cleaners range for Bangladesh. Published models: USC0340DP, USC0440DP, USC0640DP, USC1040DP, USC1540DP, USC2240DP. Compare the remaining models in the specification tables. Match vessel size, load capacity, cleaning process and drying requirements. For a quotation, send the items to clean, load size, cleaning method and water connections. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | USC0340DP | USC0440DP | USC0640DP | USC1040DP | USC1540DP | USC2240DP | USC3040DP |
|---|---|---|---|---|---|---|---|
| Power Supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Frequency (kHz) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Ultrasonic Power (W) | 120 | 180 | 180 | 300 | 480 | 600 | 700 |
| Capacity (L) | 3 | 4 | 6 | 10 | 15 | 22.5 | 30 |
| Tank Dimensions (mm) | 240*140*100 | 300*155*100 | 300*155*150 | 300*240*150 | 330*300*150 | 500*300*150 | 500*300*200 |
| Overall Dimensions (mm) | 265*165*230 | 400*240*315 | 450*255*380 | 450*340*380 | 450*390*395 | 655*420*450 | 655*420*450 |
| Heating Power (W) | 200 | 300 | 400 | 500 | 600 | 800 | 800 |
| Piezoelectric Variable Frequency Transducer | CTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic | CTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic | CTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic | CTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic | CTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic | CTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic | CTV33, PZT (Lead Zirconate Titanate) Piezoelectric Ceramic |
| Temperature Control | RT.-80℃ | RT.-80℃ | RT.-80℃ | RT.-80℃ | RT.-80℃ | RT.-80℃ | RT.-80℃ |
| Power Adjustment | 10%-100% | 10%-100% | 10%-100% | 10%-100% | 10%-100% | 10%-100% | 10%-100% |
| Timer | 0~480 min, Adjustable | 0~480 min, Adjustable | 0~480 min, Adjustable | 0~480 min, Adjustable | 0~480 min, Adjustable | 0~480 min, Adjustable | 0~480 min, Adjustable |
| Net Weight (kg) | 3.2 | 4.2 | 5.4 | 7.4 | 9.4 | 13.3 | 13.8 |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
