Brand: BIOBASE | Category: Scientific & Laboratory Equipment

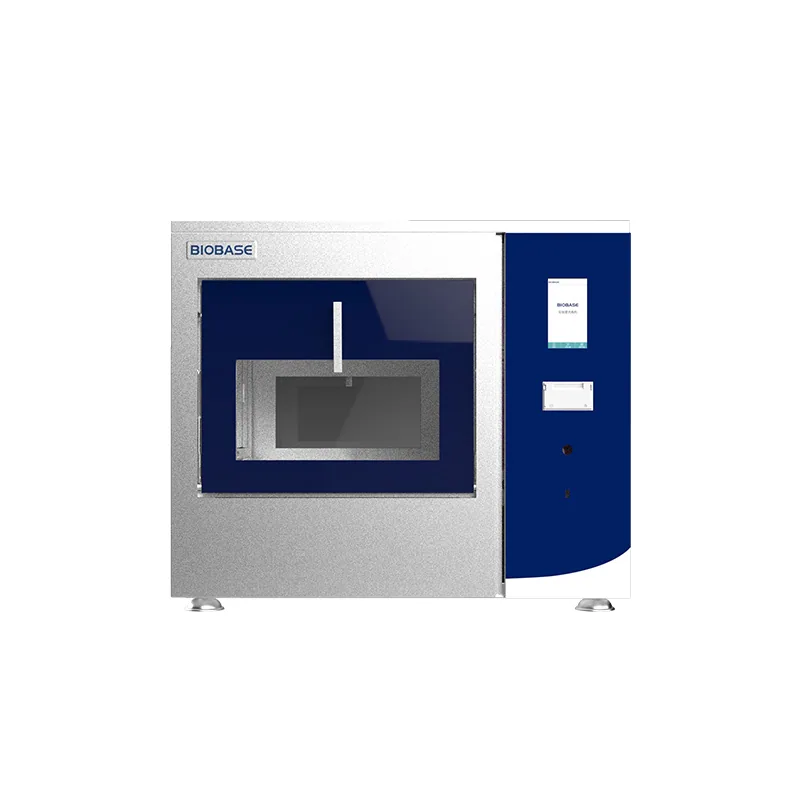

BIOBASE Washer Disinfector (Lab Automatic Glassware Washer) BKX-CQS-120 is listed in VVON's laboratory washers & ultrasonic cleaners range for Bangladesh. Published models: BKX-CQS-120, BKX-CQZ-120, BKX-CQS-220, BKX-CQS-320. Match vessel size, load capacity, cleaning process and drying requirements. For a quotation, send the items to clean, load size, cleaning method and water connections. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKX-CQS-120 | BKX-CQZ-120 | BKX-CQS-220 | BKX-CQS-320 |
|---|---|---|---|---|
| ; ; ; ; ; Cleaning / Capacity | 120L | 120L | 220L | 320L |
| ; ; ; ; ; Cleaning / Washer Load Level | 1 | 1 | 2 | 3 |
| ; ; ; ; ; Cleaning / Water Wash Power | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| ; ; ; ; ; Cleaning / Water Heater Power | 5KW | 5KW | 7KW | 7KW |
| ; ; ; ; ; Cleaning / MAX. Power | 6KW | 6KW | 9KW | 9KW |
| ; ; ; ; ; Cleaning / Water Consumption/Step (L) | 15 | 15 | 20 | 20 |
| ; ; ; ; ; Cleaning / Tank Internal Temperature | 0~95℃ | 0~95℃ | 0~95℃ | 0~95℃ |
| ; ; ; ; ; Cleaning / Water Supply Pressure | Tap water: 0.3~0.8Mpa; pure water: 0~0.8Mpa; | Tap water: 0.3~0.8Mpa; pure water: 0~0.8Mpa; | Tap water: 0.3~0.8Mpa; pure water: 0~0.8Mpa; | Tap water: 0.3~0.8Mpa; pure water: 0~0.8Mpa; |
| ; ; ; ; ; Cleaning / Peristaltic Pump for Cleaning Agent | 2 | 2 | 2 | 2 |
| ; ; ; ; ; Cleaning / Cleaning Agent Level Sensor | YES | YES | YES | YES |
| ; ; ; ; ; Cleaning / Washing Pump | Sweden 430L/min | Sweden 430L/min | Sweden 1000L/min | Sweden 1000L/min |
| ; ; ; ; ; Cleaning / Standard Cleaning Racks | BKIR36, 1pc | BKIR36, 1pc | BKIR36, 2pc | BKIR36, 3pc |
| Drying / Drying Function | YES | YES | YES | YES |
| Drying / Steam Condenser | YES ; | YES ; | YES ; | YES ; |
| Drying / Dry Power | 3KW | 3KW | 4KW | 4KW |
| Control System and Traceability / Control System | 7" color LCD touch screen display, microprocessor | 7" color LCD touch screen display, microprocessor | 7" color LCD touch screen display, microprocessor | 7" color LCD touch screen display, microprocessor |
| Control System and Traceability / Cleaning Program | 11 pre-set programs+299 PLC free programming | 11 pre-set programs+299 PLC free programming | 11 pre-set programs+299 PLC free programming | 11 pre-set programs+299 PLC free programming |
| Control System and Traceability / 4-level Password Protection | YES | YES | YES | YES |
| Control System and Traceability / Safety Emergency Button | YES ; | YES ; | YES ; | YES ; |
| Control System and Traceability / USB port | YES ; | YES ; | YES ; | YES ; |
| Control System and Traceability / Integrated printer | YES ; | YES ; | YES ; | YES ; |
| Control System and Traceability / Online Monitor Performance of Washing | Optional | Optional | Optional | Optional |
| Control System and Traceability / UV Sterilization Function | Optional | Optional | Optional | Optional |
| Dimensions& Weight / Chamber Dimension (W*D*H) | 600*620*560mm | 600*650*560mm | 600*630*730mm | 600*630*930mm |
| Dimensions& Weight / Exterior Dimension (W*D*H) | 980*740*870mm | 890*800*1540mm | 690*820*1800mm | 690*820*2000mm |
| Dimensions& Weight / Package Dimension (W*D*H) | 1150*940*1060mm | 1100*970*1900mm | 850*1000*2250mm | 850*1000*2250mm |
| Dimensions& Weight / Net Weight (Host only) | 190kg | 260kg | 290kg | 310kg |
| Dimensions& Weight / Gross Weight (Host with rack) | 220kg | 290kg | 330kg | 350kg |
| Others / Door | Double-layered glass door, 304 stainless steel | Double-layered glass door, 304 stainless steel | Double-layered glass door, 304 stainless steel | Double-layered glass door, 304 stainless steel |
| Others / Safety Door Lock | YES | YES | YES | YES |
| Others / Built-in RO Water Pump | YES | YES | YES | YES |
| Others / Noise | <50dB | <50dB | <50dB | <50dB |
| Others / Power Supply | AC220V, 50Hz（Standard）; AC220V, 60Hz; 110V, 50/60Hz; 380V, 50/60Hz（Optional） | AC220V, 50Hz（Standard）; AC220V, 60Hz; 110V, 50/60Hz; 380V, 50/60Hz（Optional） | AC220V, 50Hz（Standard）; AC220V, 60Hz; 110V, 50/60Hz; 380V, 50/60Hz（Optional） | AC220V, 50Hz（Standard）; AC220V, 60Hz; 110V, 50/60Hz; 380V, 50/60Hz（Optional） |
Manufacturer catalogue checked 2026-09-28.
