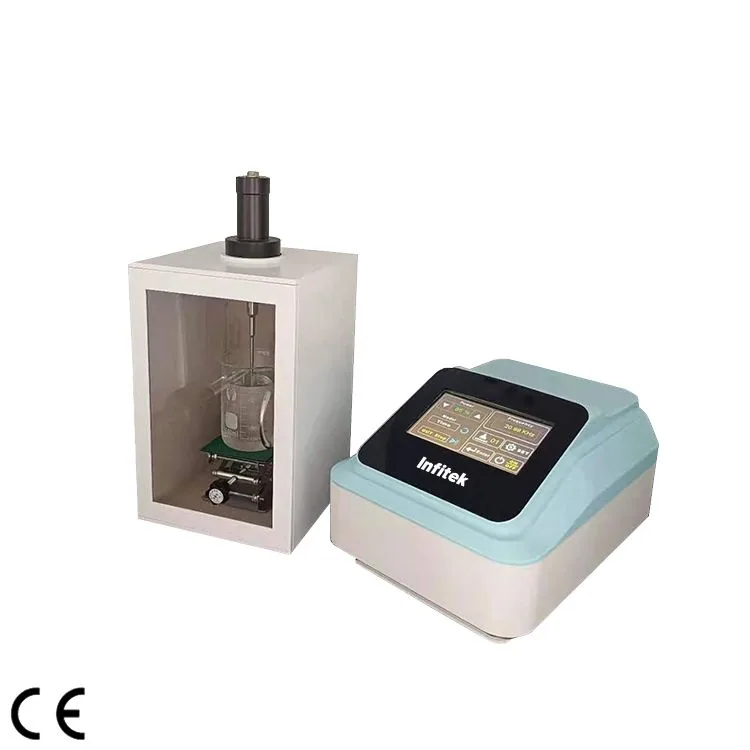

Infitek Ultrasonic Cell Disruptor, USCG-T Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Ultrasonic Cell Disruptor, USCG-T Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: USCG-100T, USCG-200T, USCG-350T, USCG-550T, USCG-750T, USCG-1000T. Compare the remaining models in the specification tables. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | USCG-100T | USCG-200T | USCG-350T | USCG-550T | USCG-750T | USCG-1000T | USCG-1500T | USCG-2000T |
|---|---|---|---|---|---|---|---|---|
| Electricity | 220V/50Hz 100W | 220V/50Hz 200W | 220V/50Hz 350W | 220V/50Hz 550W | 220V/50Hz 750W | 220V/50Hz 1000W | 220V/50Hz 1500W | 220V/50Hz 2000W |
| Nominal frequency | 20KHz | 20KHz | 20KHz | 20KHz | 20KHz | 20KHz | 20KHz | 20KHz |
| Capacity | 0.5-80ml | 2-150ml | 5-250ml | 10ml-400ml | 20ml-800ml | 20ml-1000ml | 50ml-2000ml | 100ml-3000ml |
| Timer | 1 second – 99 hours, 99 minutes, 59 seconds adjustable | 1 second – 99 hours, 99 minutes, 59 seconds adjustable | 1 second – 99 hours, 99 minutes, 59 seconds adjustable | 1 second – 99 hours, 99 minutes, 59 seconds adjustable | 1 second – 99 hours, 99 minutes, 59 seconds adjustable | 1 second – 99 hours, 99 minutes, 59 seconds adjustable | 1 second – 99 hours, 99 minutes, 59 seconds adjustable | 1 second – 99 hours, 99 minutes, 59 seconds adjustable |
| Data storage | Store 10 sets of operation data (can be switched arbitrarily) | Store 10 sets of operation data (can be switched arbitrarily) | Store 10 sets of operation data (can be switched arbitrarily) | Store 10 sets of operation data (can be switched arbitrarily) | Store 10 sets of operation data (can be switched arbitrarily) | Store 10 sets of operation data (can be switched arbitrarily) | Store 10 sets of operation data (can be switched arbitrarily) | Store 10 sets of operation data (can be switched arbitrarily) |
| Power regulation | 1%–100%, 1% progressive | 1%–100%, 1% progressive | 1%–100%, 1% progressive | 1%–100%, 1% progressive | 1%–100%, 1% progressive | 1%–100%, 1% progressive | 1%–100%, 1% increment | 1%–100%, 1% progressive |
| Operation mode | Pulse，Time，Continuous | Pulse，Time，Continuous | Pulse，Time，Continuous | Pulse，Time，Continuous | Pulse，Time，Continuous | Pulse，Time，Continuous | Pulse，Time，Continuous | Pulse，Time，Continuous |
| Liquid crystal display | Color touch screen，resolution：800*480 | Color touch screen，resolution：800*480 | Color touch screen，resolution：800*480 | Color touch screen，resolution：800*480 | Color touch screen，resolution：800*480 | Color touch screen，resolution：800*480 | Color touch screen, resolution: 800*480 | Color touch screen，resolution：800*480 |
| Dimension | 370*265*225 | 370*265*225 | 370*265*225 | 370*265*225 | 370*265*225 | 370*265*225 | 370*265*225 | 370*265*225 |
| Piezoelectric frequency conversion energy converter | CV33，PZT lead zirconate titanate piezoelectric ceramics | CV33，PZT lead zirconate titanate piezoelectric ceramics | CV33，PZT lead zirconate titanate piezoelectric ceramics | CV33，PZT lead zirconate titanate piezoelectric ceramics | CV33，PZT lead zirconate titanate piezoelectric ceramics | CV33，PZT lead zirconate titanate piezoelectric ceramics | CV33, PZT lead zirconate titanate piezoelectric ceramics | CV33，PZT lead zirconate titanate piezoelectric ceramics |
| Diameter：44mm | Diameter：44mm | Diameter：44mm | Diameter：63mm | Diameter：63mm | Diameter：63mm | Diameter: 73mm | Diameter：63mm | |
| Length：152mm | Length：152mm | Length：152mm | Length：153 mm | Length：153 mm | Length：153mm | Length: 163 mm | Length：153mm | |
| Standard configuration amplifying bar | Head diameter (random amplifying bar)：Φ3mm | Head diameter (random amplifying bar)：Φ6mm | Head diameter (random amplifying bar)：Φ8mm | Head diameter (random amplifying bar)：Φ13mm | Head diameter (random amplifying bar)：Φ16mm | Head diameter (random amplifying bar)：Φ13mm | Head diameter (random amplifying bar)：Φ20mm | Head diameter (random amplifying bar)：Φ25mm |
| Total length：128mm | Total length：120mm | Total length：129mm | Total length：134mm | Total length：134mm | Total length：134mm | Total length：132mm | Total length：132mm |
| Model Nominal frequency | Model Nominal frequency | Diameter | Capacity | Optional horn size |
|---|---|---|---|---|
| USCG-100T | 20KHz | φ3mm | 0.5-80ml | φ2(0.1-50ml)φ6(2-80ml) |
| USCG-200T | 20KHz | φ6mm | 2-150ml | φ2(0.1-50ml)φ3(0.5-100ml)φ8(5-150ml) |
| USCG-350T | 20KHz | φ8mm | 5mL-250mL | φ2(0.1-50ml )φ3(0.5-100ml)φ6(2-200ml)φ10(10-250ml) |
| USCG-550T | 20KHz | φ13mm | 10mL~400mL | φ3(0.1-100ml)φ6(2-200ml)φ8(2-300ml)φl0(5-350ml)φ16(20-400ml) |
| USCG-750T | 20KHz | φ16mm | 20mL~800mL | φ3(0.1-100ml)φ6(2-200ml)φ8(5-300ml)φ10(10-500ml)φ13(10-700ml)φ18(50-800ml) |
| USCG-1000T | 20KHz | φ13mm | 20mL~1000mL | φ3(0.1-100ml)φ6(2-200ml)φ8(5-300ml)φl0(5-800ml)φ16(20-1200ml)φ18(50-1200ml) |
| USCG-1500T | 20KHz | φ20mm | 50mL~2000mL | φ3(0.1-100ml)φ6(2-200ml)φ8(5-300ml)φ10(10-1000ml) |
| USCG-1500T | 20KHz | φ20mm | 50mL~2000mL | φ13(20-1000ml)φ16(20-1500ml)φ18(50-2000ml)φ25(100-2000ml) |
| USCG-2000T | 20KHz | φ25mm | 100mL-3000mL | φ6(2-200ml)φ8(5-300ml)φ10(5-1000ml) |
| USCG-2000T | 20KHz | φ25mm | 100mL-3000mL | φ13(20-1500ml)φ16(20-1500ml)φ18(50-2000ml)φ20(50-3000ml)φ30(100-3000ml) |
Manufacturer catalogue checked 2026-09-28.
