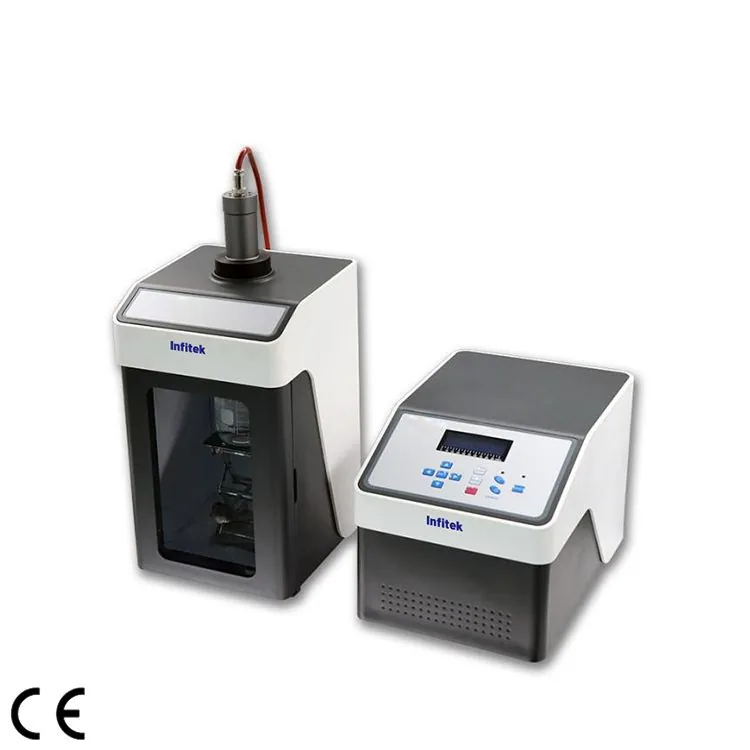

Infitek Sonicator, USCG-N Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Sonicator, USCG-N Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: USCG-150N, USCG-250N, USCG-300N, USCG-450N, USCG-600N, USCG-900N. Compare the remaining models in the specification tables. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | USCG-150N | USCG-250N | USCG-300N | USCG-450N | USCG-600N | USCG-900N | USCG-1200N | USCG-1800N |
|---|---|---|---|---|---|---|---|---|
| Electricity | 220V/50Hz 80W | 220V/50Hz 150W | 220V/50Hz 300W | 220V/50Hz 450W | 220V/50Hz 600W | 220V/50Hz 900W | 220V/50Hz 1200W | 220V/50Hz 1800W |
| Frequency | 20KHz | 20KHz | 20KHz | 20KHz | 20KHz | 20KHz | 20KHz | 20KHz |
| Power regulation | 0%–100%, 5% increment | 0%–100%, 5% increment | 0%–100%, 5% increment | 0%–100%, 5% increment | 0%–100%, 5% increment | 0%–100%, 5% increment | 0%–100%, 5% increment | 0%–100%, 5% increment |
| Ultrasonic mode | Pulse mode / continuous mode | Pulse mode / continuous mode | Pulse mode / continuous mode | Pulse mode / continuous mode | Pulse mode / continuous mode | Pulse mode / continuous mode | Pulse mode / continuous mode | Pulse mode / continuous mode |
| Timing function | LCD, 1s~99h adjustable | LCD, 1s~99h adjustable | LCD, 1s~99h adjustable | LCD, 1s~99h adjustable | LCD, 1s~99h adjustable | LCD, 1s~99h adjustable | LCD, 1s~99h adjustable | LCD, 1s~99h adjustable |
| Piezoelectric frequency conversion energy converter | CV33, PZT lead zirconate titanate piezoelectric ceramics | CV33, PZT lead zirconate titanate piezoelectric ceramics | CV33, PZT lead zirconate titanate piezoelectric ceramics | CV33, PZT lead zirconate titanate piezoelectric ceramics | CV33, PZT lead zirconate titanate piezoelectric ceramics | CV33, PZT lead zirconate titanate piezoelectric ceramics | CV33, PZT lead zirconate titanate piezoelectric ceramics | CV33, PZT lead zirconate titanate piezoelectric ceramics |
| Diameter | 44mm | 44mm | 44mm | 63mm | 63mm | 63mm | 73mm | 73mm |
| Length | 152mm | 152mm | 152mm | 154mm | 154mm | 154mm | 160mm | 160mm |
| Luffing lever material | Titanium alloy material, TI-6AL-4V | Titanium alloy material, TI-6AL-4V | Titanium alloy material, TI-6AL-4V | Titanium alloy material, TI-6AL-4V | Titanium alloy material, TI-6AL-4V | Titanium alloy material, TI-6AL-4V | Titanium alloy material, TI-6AL-4V | Titanium alloy material, TI-6AL-4V |
| Luffing lever length | 128mm | 125mm | 128mm | 134mm | 134mm | 134mm | 135mm | 130mm |
| Processing capacity | 0.5-50ml (need to select the corresponding horn) | 2-100ml (need to select the corresponding horn) | 5-200ml (need to select the corresponding horn) | 10-300ml (need to select the corresponding horn) | 20-1500ml (need to select the corresponding horn) | 20-1000ml (need to select the corresponding horn) | 50-2000ml (need to select the corresponding horn) | 100-3000ml (need to select the corresponding horn) |
| Standard probe | Φ3mm | Φ6mm | Φ8mm | Φ13mm | Φ16mm | Φ13mm | Φ20mm | Φ25mm |
| Host size | 245*365*245mm | 245*365*245mm | 245*365*245mm | 245*365*245mm | 245*365*245mm | 245*365*245mm | 245*365*245mm | 245*365*245mm |
| Soundproof box size | 240*250*390mm | 240*250*390mm | 240*250*390mm | 240*250*390mm | 240*250*390mm | 240*250*390mm | 240*250*390mm | 240*250*390mm |
| Host weight | 8.5Kg | 8.5Kg | 8.5Kg | 10.5Kg | 10.5Kg | 10.5Kg | 13.5Kg | 13.5Kg |
| Soundproof box weight | 4.5Kg | 4.5Kg | 4.5Kg | 4.5Kg | 4.5Kg | 4.5Kg | 4.5Kg | 4.5Kg |
| Lifting table | Stainless steel 100*100mm | Stainless steel 100*100mm | Stainless steel 100*100mm | Stainless steel 100*100mm | Stainless steel 100*100mm | Stainless steel 100*100mm | Stainless steel 100*100mm | Stainless steel 100*100mm |
| Model | Nominal frequency | Diameter | Capacity | Optional horn size |
|---|---|---|---|---|
| USCG-150N | 20KHz | φ3mm | 0.5ml-50mL | φ2(0.1-50ml)φ6(5-50ml) |
| USCG-250N | 20KHz | φ6mm | 2ml-100mL | φ2(0.1-50ml)φ3(0.5-100ml)φ8(5-100ml) |
| USCG-300N | 20KHz | φ8mm | 5mL-200mL | φ2(0.1-50ml)φ3(0.5-100ml)φ6(2-200ml )φ10(10-200ml) |
| USCG-450N | 20KHz | φ13mm | 10mL~300mL | φ3(0.1-100ml)φ6(2-200ml)φ8(5-200ml)φ10(10-300ml)φ16(20-300ml) |
| USCG-600N | 20KHz | φ16mm | 20mL~500mL | φ3(0.1-50ml)φ6(2-200ml)φ8(5-300ml)φ10(10-400ml)φ13(10-500ml)φ18(50-500ml) |
| USCG-900N | 20KHz | φ13mm | 20mL~500mL | φ3(0.1-50ml)φ6(2-200ml)φ8(5-300ml)φ10(10-400ml)φ16(20-1000ml)φ18(50-1000ml) |
| USCG-1200N | 20KHz | φ20mm | 50mL~2000mL | φ3(0.1-50ml)φ6(2-200ml)φ8(5-300ml)φ10(10-400ml) |
| USCG-1200N | 20KHz | φ20mm | 50mL~2000mL | φ13(20-500ml)φ16(20-1000ml)φ18(50-2000ml)φ25(100-2000ml) |
| USCG-1800N | 20KHz | φ25mm | 100mL-3000mL | φ6(2-200ml)φ8(5-300ml)φ10(10-400ml) |
| USCG-1800N | 20KHz | φ25mm | 100mL-3000mL | φ13(20-500ml)φ16(20-1000ml)φ18(50-2000ml)φ20(50-3000ml)φ30(100-3000ml) |
| Temperature sensor | |
| Wrench | |
| Iron support stand |
Manufacturer catalogue checked 2026-09-28.
