Brand: Infitek | Category: Scientific & Laboratory Equipment

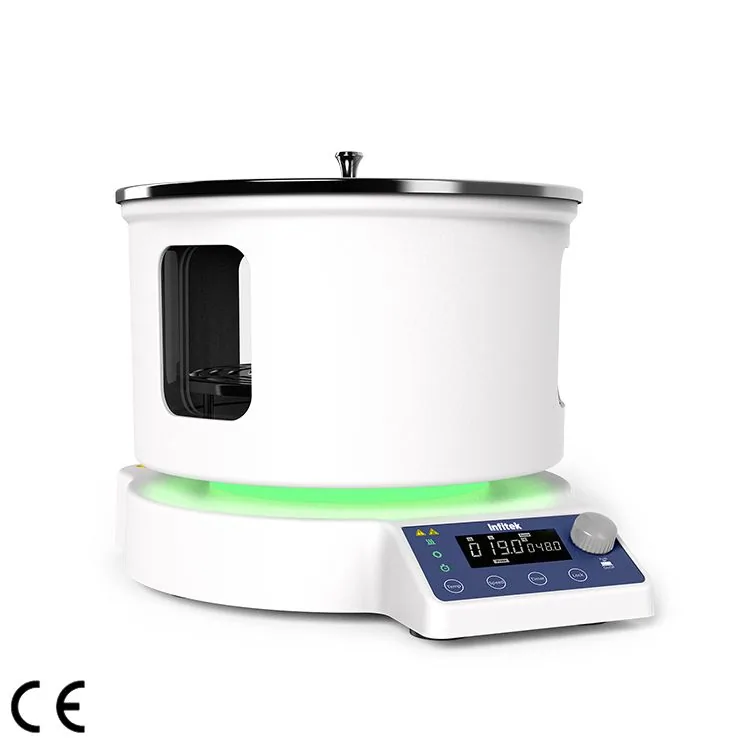

Infitek Thermostatic Magnetic Stirring Bath, WB-H220 Series is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: WB-H220-V3, WB-H220-V5. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | WB-H220-V3 | WB-H220-V5 | WB-H220-V5 |
|---|---|---|---|
| Heating Pan Material | High borosilicate glass + stainless steel base | High borosilicate glass + stainless steel base | High borosilicate glass + stainless steel base |
| Motor Type | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Bath Size | Ø220×105 mm | Ø240×135 mm | Ø240×135 mm |
| Max. Flask Volume | 3 L | 5 L | 5 L |
| Stirring Positions | 1 | 1 | 1 |
| Max. Stirring Quantity [H₂O] | 3 L | 5 L | 5 L |
| Max. Magnetic Bar Length | 40 mm | 40 mm | 40 mm |
| Speed Range | 100–1500 rpm, ±10 rpm | 100–1500 rpm, ±10 rpm | 100–1500 rpm, ±10 rpm |
| Speed Display | LCD | LCD | LCD |
| Temperature Display | LCD | LCD | LCD |
| Heating Temperature Range | RT–220°C | RT–220°C | RT–220°C |
| Heating Liquid Temperature Control Accuracy | ±1°C | ±1°C | ±1°C |
| Overheat Protection | 350°C | 350°C | 350°C |
| Temperature Display Accuracy | 0.1 °C | 0.1 °C | 0.1 °C |
| External Temperature Sensor | PT1000 | PT1000 | PT1000 |
| Residual Heat Warning (“HOT”) | 50 °C | 50 °C | 50 °C |
| Buzzer | Yes | Yes | Yes |
| Reversible Stirring | Yes | Yes | Yes |
| Protection Class | IP21 | IP21 | IP21 |
| Timer Function | 1 min – 99 h 59 min | 1 min – 99 h 59 min | 1 min – 99 h 59 min |
| Motor Rating Output | 20 W | 20 W | 20 W |
| Heating Output | 800 W | 800 W | 1250 W |
| Total Power | 850 W | 850 W | 1300 W |
| Electricity | 100-120V/200-240V, 50/60Hz | 100-120V/200-240V, 50/60Hz | 100-120V/200-240V, 50/60Hz |
| Permissible Ambient Temperature and Humidity | 5–40 °C, 80% RH | 5–40 °C, 80% RH | 5–40 °C, 80% RH |
| Dimensions (W*D*H) | 283*343*215 mm | 283*343*215 mm | 283*343*228 mm |
| Weight | 6.0 kg | 6.0 kg | 6.7 kg |
Manufacturer catalogue checked 2026-09-28.
