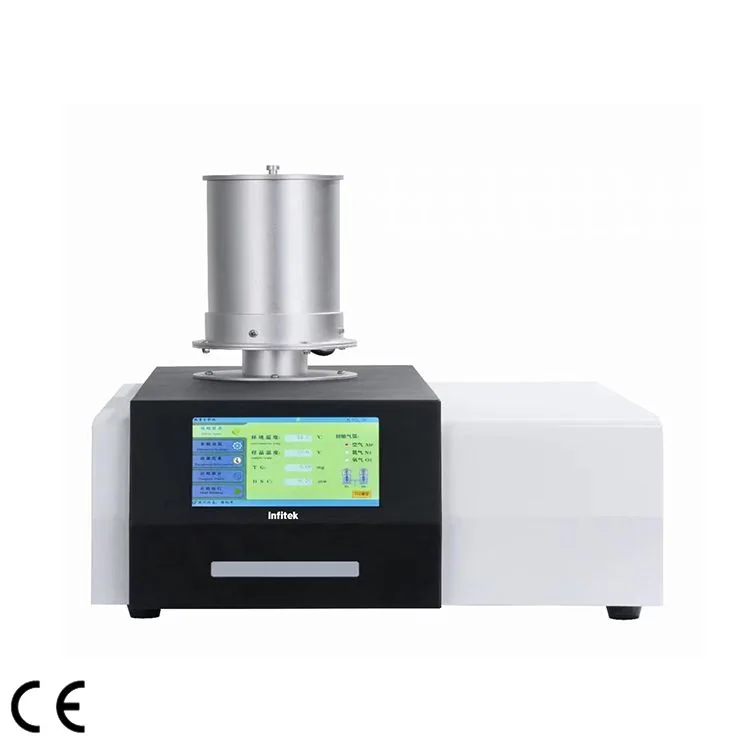

Infitek Thermogravimetric Analyzer, TGA-1550
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Thermogravimetric Analyzer, TGA-1550 is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: TGA-1550. Published details include Temperature Range: RT.~1550℃. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | TGA-1550 |
|---|---|
| Temperature Range | RT.~1550℃ |
| Temperature Resolution | 0.01℃ |
| Temperature Fluctuation | ±0.1℃ |
| Heating Rate | 0.1~100℃/min |
| Temperature Control Mode | PID control, heating, constant temperature and cooling |
| Program Control | Program setting multi-stage temperature rise and constant temperature, and five sections can be set at the same time |
| Balance Measuring Range | 3g, can be extended to 50g |
| Precision | 0.01mg |
| Constant Temperature Time | Program control, 0-300min, which can be extended to 72h |
| Resolution | 0.1μg |
| Display | LCD display |
| Atmosphere Device | Built-in gas flow meter, including two-way gas switching and flow control |
| Software | Intelligent software can automatically record TG curve for data processing, TG / DTG, mass, percentage coordinates can be arbitrarily switched;Software with automatic adjustment function, according to the map display, automatic extension, scaling |
| Gas Path | Can be set with multi-stage automatic switching without manual adjustment. |
| Data Interface | Standard USB interface, special software (software upgrade for free from time to time) |
| Electricity | AC220/110V, 50/60Hz |
| Curve Scanning | Heating scanning and cooling scanning |
| Test Map | Five test maps can be opened at the same time for comparative analysis |
| Cooling Time | ≤15min,1000℃~RT.;Air cooled cooling device is selected to reduce temperature quickly and improve test efficiency |
| Crucible Type | Ceramic crucible, aluminum crucible |
| External Dimension | 531*463.5*416mm |
| N.W./G.W. | 26kg/39kg |
| Shipping Dimension | 730*600*480mm |
Manufacturer catalogue checked 2026-09-28.
