Brand: Infitek | Category: Medical Equipment

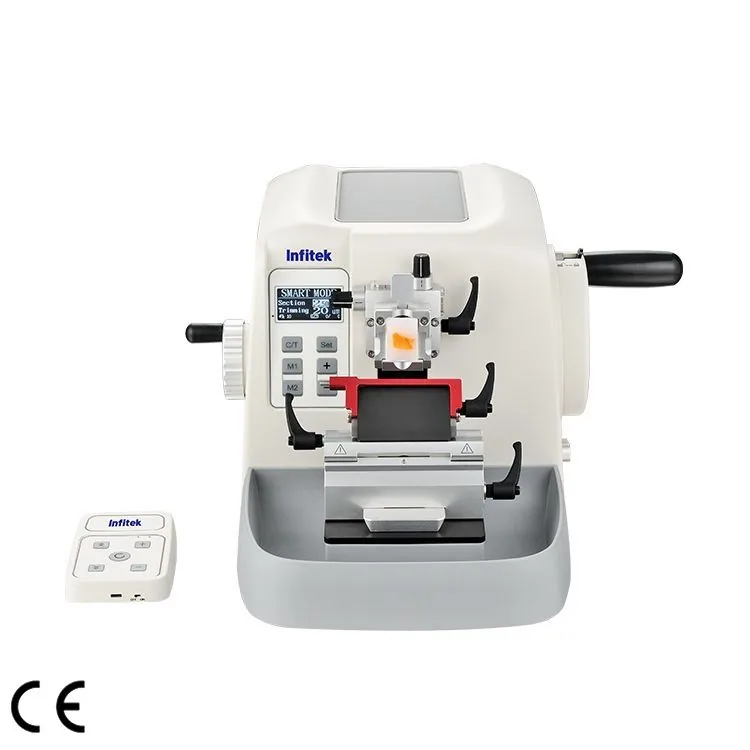

Infitek Rotary Microtome, RMT-SA500 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: RMT-SA500. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RMT-SA500 |
|---|---|
| Section Thickness Range | 0.25~100μm 0.25~2.5μm, increment 0.25μm 2.5~5μm, increment 0.5μm 5.0~10μm, increment 1μm 10~30μm, increment 2μm 30~60μm, increment 5μm 60~100μm, increment 10μm |
| Trimming Thickness Range | 1~600μm 1~10μm, increment 1μm 10~20μm, increment 2μm 20~50μm, increment 5μm 50~150μm, increment 10μm 150~600μm, increment 50μm |
| Retraction Range | 0~100μm(0 means off) 1~5~10~15—-100μm adjustable |
| Full Slice Interval Span | 10~6000μm 10~12~15~20~25–5000~6000μm adjustable |
| Counting Range of Slicing and Trimming | 0~9999 |
| Horizontal Feed | 30mm |
| Vertical Stroke | 70mm |
| Moving Range of Blade Holder ((left to right) | 0~26mm |
| Moving Range of Blade Holder ((front to back) | 0~65mm |
| Sample Orientation | Horizontal 8°, vertical 8° |
| Minimum Scale Value of Slice Adjustment | 0.25μm |
| Maximum Specimen Size | Standard wax block clip39mm×40 mm （Other sizes available） |
| Feed Speed | 2000μm/s |
| Small Hand Wheel Feed | 100~1000μm/circle adjustable |
| Memory Position of Sample Head | 2 positions can be set at will |
| Slicing Accuracy | ±1% |
| Electricity | AC110V~120V/AC220V~240V, 50Hz/60Hz |
| Power | 100VA |
| External Dimension | 595*465*295mm |
| Net Weight | 28kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Temperature Control Range of Floating Slide: RT.~70℃; Temperature Control Range of Baking Slide: RT.~99℃. Match specimen throughput, preparation steps and consumables to the histology workflow.
