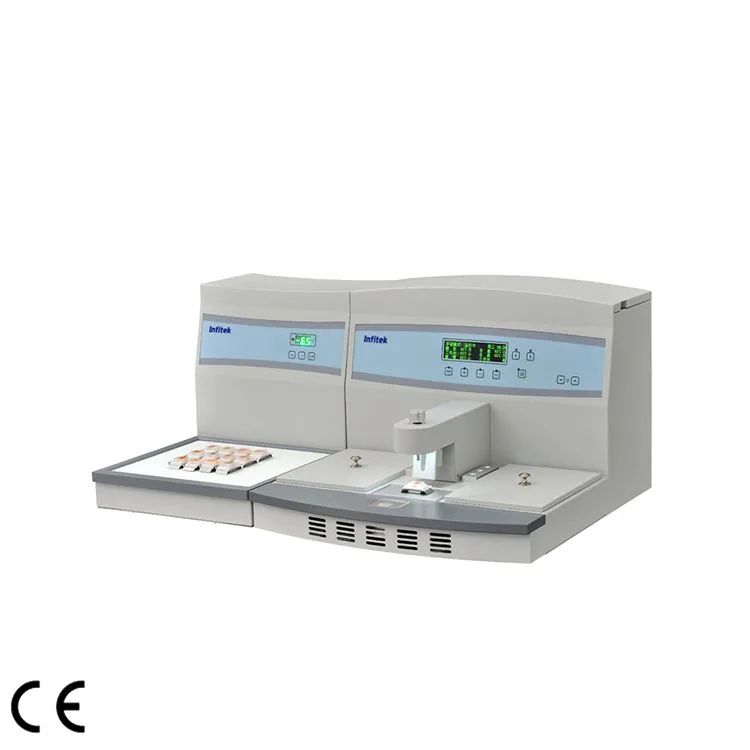

Infitek Tissue Embedding & Cooling System, EBD-3, EBD-CL3
Brand: Infitek | Category: Medical Equipment
Infitek Tissue Embedding & Cooling System, EBD-3, EBD-CL3 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: EBD-3, EBD-CL3. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | EBD-3 | EBD-CL3 |
|---|---|---|
| Paraffin Chamber Capacity | 4L | 4L |
| Temperature Range of Forceps Wells | RT – 99℃ | RT – 99℃ |
| Temperature Range of Paraffin Chamber | RT – 99℃ | RT – 99℃ |
| Temperature Range of Thermal Storage Compartment | RT – 99℃ | RT – 99℃ |
| Temperature Range of Paraffin Dispenser | RT – 99℃ | RT – 99℃ |
| Temperature Range of Thermal Storage Plate | RT – 99℃ | RT – 99℃ |
| Temperature Control Precision | ±1% | ±1% |
| Paraffin Flow Control | Paraffin flow control via finger touch plate and foot pedal | Paraffin flow control via finger touch plate and foot pedal |
| Temperature Range of Storage Plate | RT~99℃ | RT~99℃ |
| Temperature Range of Cryo Module | +5~ -20℃ (Temperature control mode); The lowest temperature can reach -28℃ (Super cooling mode) | +5~ -20℃ (Temperature control mode); The lowest temperature can reach -28℃ (Super cooling mode) |
| Temperature of Small Cold Plate | ﹤-5℃ | ﹤-5℃ |
| Dimensions | Working Plate: 155×90mm; Small Cold Plate: 60×50mm | Cryo Module: 340×322mm |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 1000W (EBD-3), 300W (EBD-CL3) | 1000W (EBD-3), 300W (EBD-CL3) |
| Package Dimensions | 670×590×445 mm (W×D×H) | 685×380×430 mm (W×D×H) |
| Net weight | 33kg | 26kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
