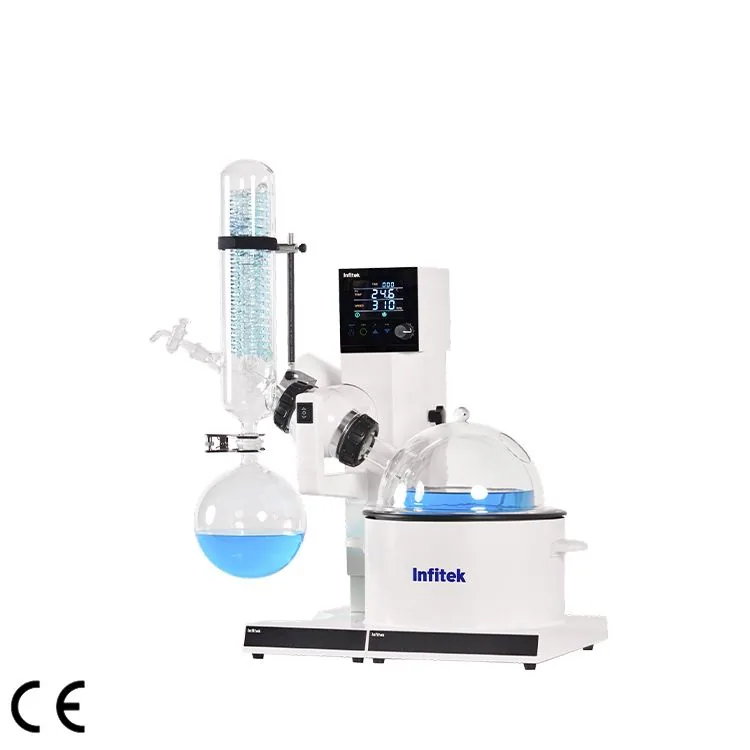

Infitek Rotary Evaporator, REV-3000AC
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Rotary Evaporator, REV-3000AC is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: REV-3000AC. Published details include Evaporation Capacity: Max. 27mL/min (H_(2)O); Evaporating Flask Volume: 250~3000mL. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | REV-3000AC |
|---|---|
| Rotation Speed | 0 ~310 rpm (LCD color display) |
| Evaporation Capacity | Max. 27mL/min (H_(2)O) |
| Vacuum Control (Optional) | Built-in vacuum controller (adjustable vacuum degree as required); Setting range: -0.1~0MPa (0 ~1013mbar); Accuracy: ±1mbar |
| Temperature Range | Water & Oil dual-purpose bath: Water bath: Room temperature ~ 99 ℃ (±0.5 ℃) Oil bath: Room temperature ~ 210 ℃ (±2 ℃) |
| Heating Bath Design | Integrated Teflon coating for easy cleaning, corrosion & high-temp resistance. Size: φ26 × 15 cm (approx. 8 L). Equipped with safety handles and insulated outer shell to prevent burns. |
| Safety Cover (Optional) | Transparent PC protective cover (Water bath only): Heat preservation, energy saving, explosion-proof, and splash-proof. |
| Rotation Mode | Interval rotation (Clockwise/Counter-clockwise) with adjustable pause (0–60s); suitable for drying powder samples. |
| Lifting System | Electric lift with touch & handle dual-mode; Stroke: 150 mm. Features a 60 mm safety distance at the lower limit to prevent flask collision. |
| Temperature Control | Microcomputer PID controller with digital display |
| Temperature Setting | ① Knob encoder ② Rotary input setting ③ Large LCD screen for easy and quick operation |
| Safety Performance | Timer function (0~999 min); Automatic stop and standby mode upon completion. |
| Heating Element | Fully enclosed integrated heater; Power: 1.5 kW |
| Evaporating Flask Volume | 250~3000mL |
| Sealing Unit | Imported PTFE and special synthetic materials processed with special technology, providing improved sealing, corrosion resistance and wear resistance. |
| Condenser | Vertical three-layer ball-joint serpentine condenser with large condensing area. |
| Condensing Area | 0.21m^(2), with drip point and anti-back flow design for enhanced efficiency. |
| Ambient Temperature | 5 ℃ ~ 40 ℃ |
| Electricity | AC 220V/50Hz |
| External Dimensions | 710*645*790mm |
| Package Dimensions | 700*430*860mm |
| Gross Weight | 35kg |
| Standard Configuration | 3L Flange Round-bottom Flask*1; 29# 1L Eggplant-shaped Flask*1; Flange to 29# Ground Joint Adapter*1; S35 Ball-Ground Joint 2L Collection Flask*1; |
| Supporting Products | Rotary Evaporator REV-3000AC+Diaphragm Vacuum Pump VACP-D20+Low Temperature Circulator RECL20-2X |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
