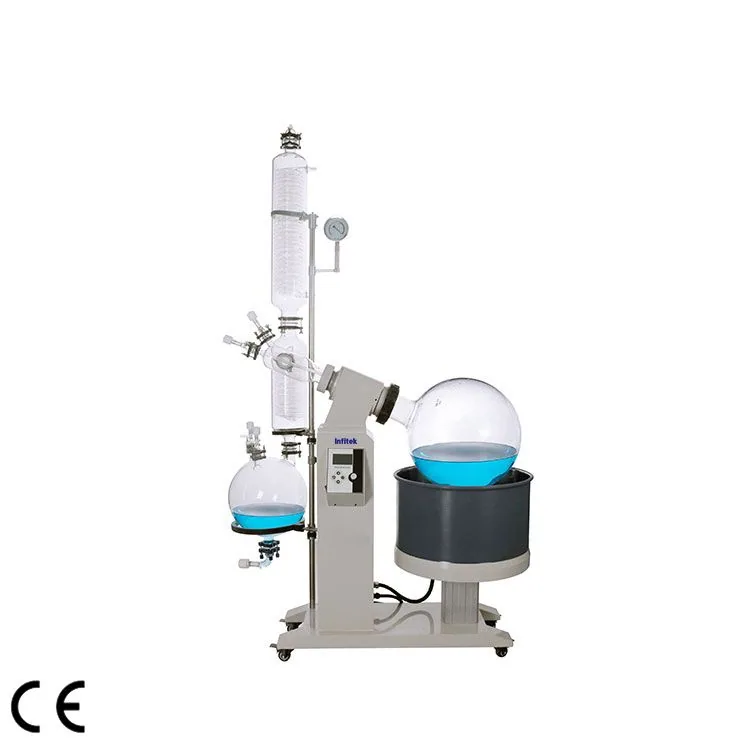

Infitek Rotary Evaporator, REV-1050II
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Rotary Evaporator, REV-1050II is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: REV-1050II. Published details include Rotary flask volume: 50LΦ470mm/Φ125 flange port; Collecting flask volume: 20LΦ355mm/upper Φ60 flange port×Φ35 flange port×2pcs×lower Φ50 flange port. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | REV-1050II |
|---|---|
| Voltage/Frequency | 220V 50Hz/110V 60Hz |
| Total Power | 6640W |
| Rotary motor power | 100W |
| Lifting motor power | 40W |
| Heating power | 6500W |
| Vacuum | 0.095Mpa |
| Rotary flask volume | 50LΦ470mm/Φ125 flange port |
| Collecting flask volume | 20LΦ355mm/upper Φ60 flange port×Φ35 flange port×2pcs×lower Φ50 flange port |
| Rotary speed | 0-120rpm |
| Temperature control range | Room temperature-180℃ |
| Temperature control accuracy | ±1℃ |
| Bath lifting stroke | 215mm |
| Condenser dimension | Main condenser Φ160×835H(mm), upper Φ60 flange port, lower Φ80 flange port Auxiliary condenser Φ160×530H(mm), upper Φ80 flange port, lower Φ60 flange port, side Φ60 flange port |
| Condensing area | 1.44(0.95+0.49)㎡ |
| Gas cylinder | Left Φ35 flange port, upper Φ35 flange port, side Φ60 flange port, right Φ70 flange port |
| Material feeding valve | Φ35 flange port, glass + PTFE valve, material feeding valve (pagoda joint) with 12mm outer diameter |
| Multi-function port | Φ35 flange port, glass + PTFE valve, glass valve (pagoda joint) with 12mm outer diameter |
| Releasing valve | Φ35 flange port×2pcs, glass + PTFE valve, releasing valve (pagoda joint) with 12mm outer diameter |
| Material discharging valve | Φ50 flange port, side discharging valve (pagoda joint) with 20mm outer diameter, 300mm from the ground |
| Vacuum nozzle | Φ60 flanged glass nozzle（pagoda joint)with 10mm outer diameter |
| In and out circulating nozzle of condenser coil | Pagoda joint with 16mm outer diameter |
| Bath dimension/weight | Φ550×320H(mm) about 76L |
| Overall dimension(W*D*H) | 1390×700×2300mm |
| Net weight | 97KG |
| Packing dimension | 980×520×1190mm wooden package 0.61m³ |
| Packing weight | 142KG |
Manufacturer catalogue checked 2026-09-28.
