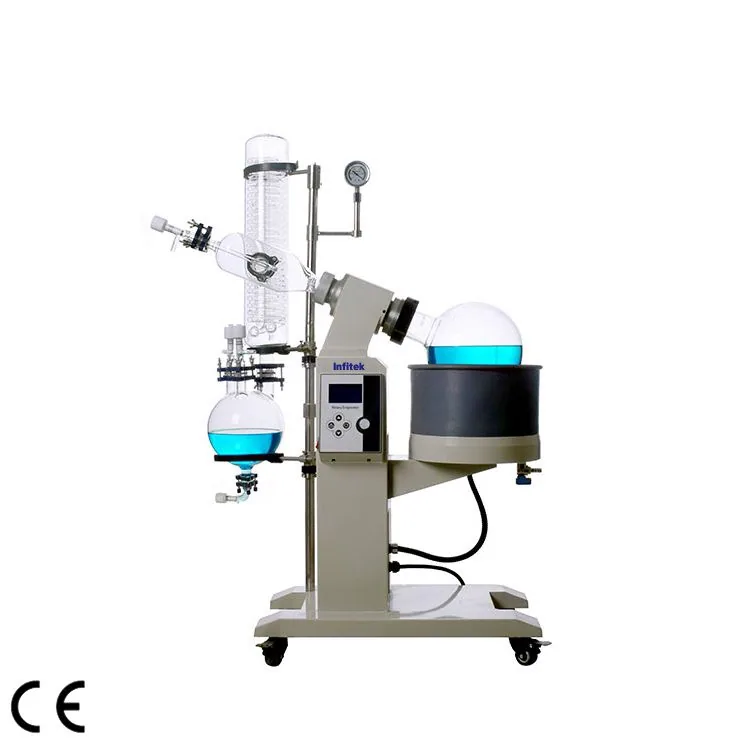

Infitek Rotary Evaporator, REV-1005II
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Rotary Evaporator, REV-1005II is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: REV-1005II. Published details include Rotary flask volume: 5LΦ230mm/Φ80 flange port; Collecting flask volume: 3LΦ195mm/upper Φ50 flange port×Φ35 flange port×2 pcs × lower Φ50 flange port. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | REV-1005II |
|---|---|
| Voltage/Frequency | 220V 50Hz/110V 60Hz |
| Total Power | 2100W |
| Rotary motor power | 60W |
| Lifting motor power | 40W |
| Heating power | 2000W |
| Vacuum | 0.095Mpa |
| Rotary flask volume | 5LΦ230mm/Φ80 flange port |
| Collecting flask volume | 3LΦ195mm/upper Φ50 flange port×Φ35 flange port×2 pcs × lower Φ50 flange port |
| Rotary speed | 0-120rpm |
| Temperature control range | Room temperature-180℃ |
| Temperature control accuracy | ±1℃ |
| Bath lifting stroke | 140mm |
| Condenser dimension | Φ120×600H(mm) side Φ50 flange port × lower Φ50 flange port |
| Condensing area | 0.5㎡ |
| Gas cylinder | Left Φ35 flange port, side Φ50 flange port, rightΦ50 flange port |
| Material feeding valve | Φ35 flange port, glass + PTFE valve, material feeding valve (pagoda joint) with 12mm outer diameter |
| Releasing valve | Φ35 flange port×2, glass + PTFE valve, releasing valve (pagoda joint)with 12mm outer diameter |
| Material discharging valve | Φ50 flange port, side discharging valve (pagoda joint) with 20mm outer diameter, 260mm from the ground |
| Vacuum nozzle | Pagoda joint with 10mm outer diameter |
| In and out circulating nozzle of condenser coil | Pagoda joint with 16mm outer diameter |
| Bath dimension/weight | Φ295×175H(mm) about 12L |
| Overall dimension(W*D*H) | 980×480×1260mm |
| Net weight | 46KG |
| Packing dimension | 800×450×1090mm wooden package 0.39m³ |
| Packing weight | 68KG |
| Supporting products | REV-1005II+Water Circulating Vacuum PumpVACP-WC3Y+Low Temperature Circulator RECL20-20 |
Manufacturer catalogue checked 2026-09-28.
