Brand: Infitek | Category: Scientific & Laboratory Equipment

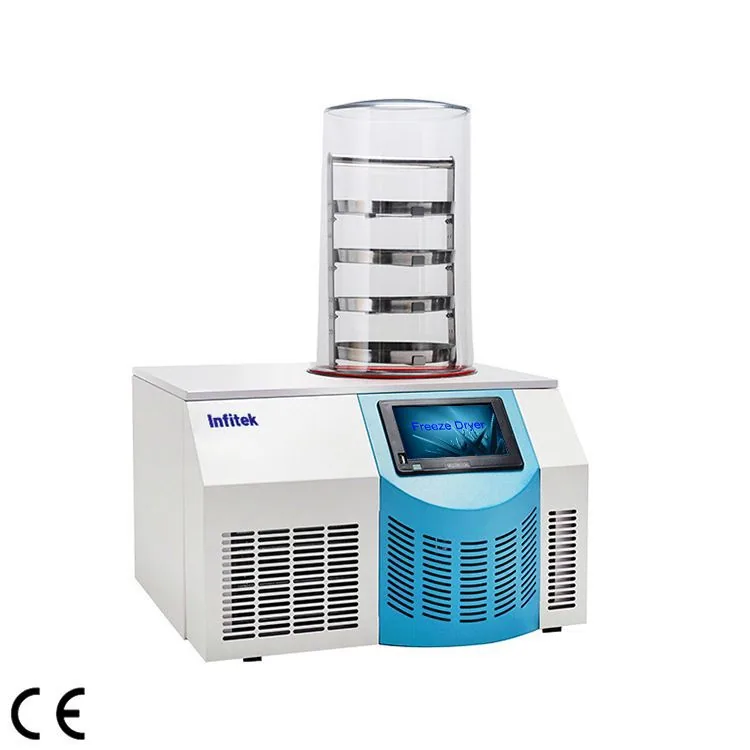

Infitek Benchtop Freeze Dryer, LYO60B Series is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: LYO60B-1S, LYO60B-1P, LYO60B-1T, LYO60B-1PT. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | LYO60B-1S | LYO60B-1P | LYO60B-1T | LYO60B-1PT |
|---|---|---|---|---|
| Type | Standard chamber | Standard chamber with 8 port manifolds | Stoppering chamber | Stoppering chamber with 8 port manifolds |
| Freeze Drying Area(m^(2)) | 0.12 | 0.12 | 0.09 | 0.09 |
| Tray(Qty) | 4/6(Optional)pcs | 4/6(Optional)pcs | 3pcs | 3pcs |
| Tray Dimensions(Diameter*H)(mm) | Φ200*20 | Φ200*20 | Φ200*20 | Φ200*20 |
| Height Between Trays(mm) | 76/50 | 76/50 | 70(average) | 70(average) |
| Condenser Temperature (℃) | -60 | -60 | -60 | -60 |
| Condenser Capacity (L) | 6.5 | 6.5 | 6.5 | 6.5 |
| Condenser Dimensions(Diameter*H)(mm) | Φ215*190 | Φ215*190 | Φ215*190 | Φ215*190 |
| Vacuum Degree(no-loading) (Pa) | ≤5 | ≤5 | ≤5 | ≤5 |
| Ice Condensing Capacity (kg/24h) | 3 | 3 | 3 | 3 |
| Loading Capacity/ Shelf (mL) | 300 | 300 | 300 | 300 |
| Total Loading Capacity of Material Tray (mL) | 1200 | 1200 | 900 | 900 |
| Drying Chamber Dimensions(standard) | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm | Lower circle:Φ260mm;Upper circle:Φ240mm;Height:Φ450mm |
| Total Qty. Of Vial Φ22 | 260 | 260 | 195 | 195 |
| Total Qty. Of Vial Φ16 | 480 | 480 | 360 | 360 |
| Total Qty. Of Vial Φ12 | 920 | 920 | 690 | 690 |
| Refrigerant | CFC-free | CFC-free | CFC-free | CFC-free |
| Standard Accessories | Vacuum pump 2L/s,8m³/h,material tray,material rack,PMMA cover(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) | Vacuum pump 2L/s,8m³/h,material tray,material rack,PMMA cover(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) | Vacuum pump 2L/s,8m³/h,material tray,material rack,PMMA cover(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) | Vacuum pump 2L/s,8m³/h,material tray,material rack,PMMA cover(for all modes) Conical-mouth flask 500mL*8 pcs,switch valve*8 pcs(only for model 1P/PT) |
| Optional Function&Accessories | Electric defrost function(for all modes) 800mL wide-mouth flask(only for model 1P/PT) | Electric defrost function(for all modes) 800mL wide-mouth flask(only for model 1P/PT) | Electric defrost function(for all modes) 800mL wide-mouth flask(only for model 1P/PT) | Electric defrost function(for all modes) 800mL wide-mouth flask(only for model 1P/PT) |
| Consumption | 0.85kW | 0.85kW | 0.85kW | 0.85kW |
| Electricity | AC220V,50Hz(standard), other electricity type can be customized | AC220V,50Hz(standard), other electricity type can be customized | AC220V,50Hz(standard), other electricity type can be customized | AC220V,50Hz(standard), other electricity type can be customized |
| External Dimensions(W*D*H)(mm) | 600*540*374/820 | 600*540*374/820 | 600*540*374/880 | 600*540*374/880 |
| Shipping Dimensions(W*D*H) / Main body | 710*680*600mm | 710*680*600mm | 710*680*600mm | 710*680*600mm |
| Shipping Dimensions(W*D*H) / Drying chamber | 360*360*590mm | 360*360*590mm | 360*360*590mm | 360*360*590mm |
| Shipping Dimensions(W*D*H) / Vacuum pump | 590*230*380mm | 590*230*380mm | 590*230*380mm | 590*230*380mm |
| Gross Weight | 110kg | 110kg | 110kg | 110kg |
Manufacturer catalogue checked 2026-09-28.
