Brand: Infitek | Category: Scientific & Laboratory Equipment

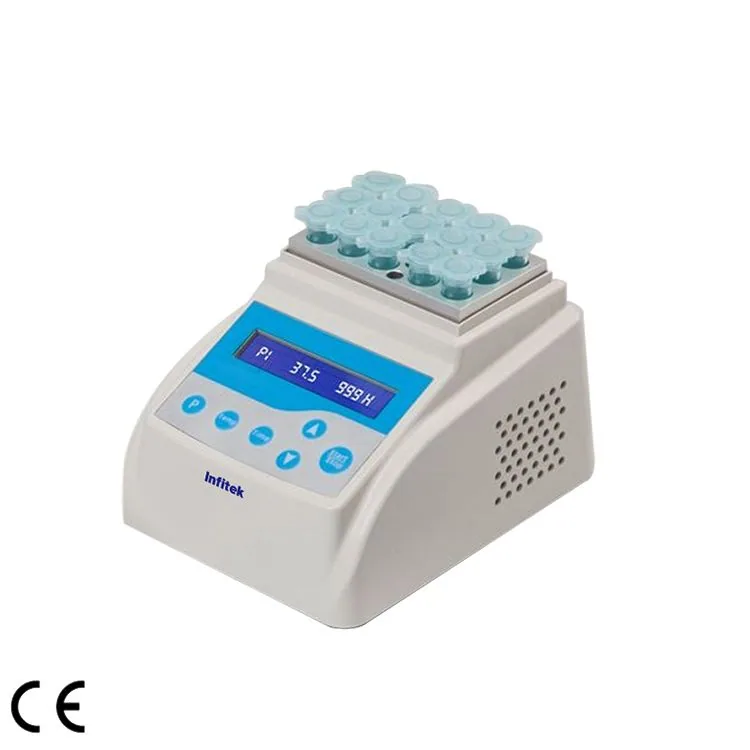

Infitek Dry Bath / Block Heater, DBI-Mini100/100R is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: DBI-Mini100, DBI-Mini100R. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Project | Parameters | Parameters |
|---|---|---|
| Product Model | DBI-Mini100 | DBI-Mini100R |
| Temp. setting range | 0℃~100℃ | -10℃~100℃ |
| Temp. control range | RT+5℃~100℃ | RT-20℃~100℃ |
| Timing range | 1sec ~ 99min59sec/∞ | 1sec ~ 99min59sec/∞ |
| Temp accuracy | ≤±0.3℃ | ≤±0.3℃ |
| Temp. uniformity | ≤±0.3℃ | ≤±0.3℃ |
| Display accuracy | 0.1℃ | 0.1℃ |
| Heating time | ≤20min(from 40℃ to 100℃) | ≤20min(from 25℃ to 100℃) |
| Cooling time 1 | — | ≤20min(from 100℃ to 25℃) |
| Cooling time 2 | — | ≤25min(from RT to RT-15℃) |
| AUTO-4℃ | — | Yes |
| Multi points running | — | Yes(Max. 5points) |
| Multi cycle | — | Yes(Max. 99times) |
| Auto heating | — | Yes |
| Auto running | Yes | Yes |
| Auto resume to run | Yes | Yes |
| Voltage | DC24V/1.67A | DC12V/5A |
| Power | 40W | 60W |
| Dimensions(L*W*H)(mm) | 145×113×110 | 145×113×140 |
| Weight(kg) | 0.5 | 1.0 |
| Type | Description |
|---|---|
| MiniBoxA | 15×2.0ml |
| MiniBoxB | 15×1.5ml |
| MiniBoxC | 24×0.5ml |
| MiniBoxD | 32×0.2ml (for 0.2ml PCR 8-tube strip) |
Manufacturer catalogue checked 2026-09-28.
