Brand: Infitek | Category: Scientific & Laboratory Equipment

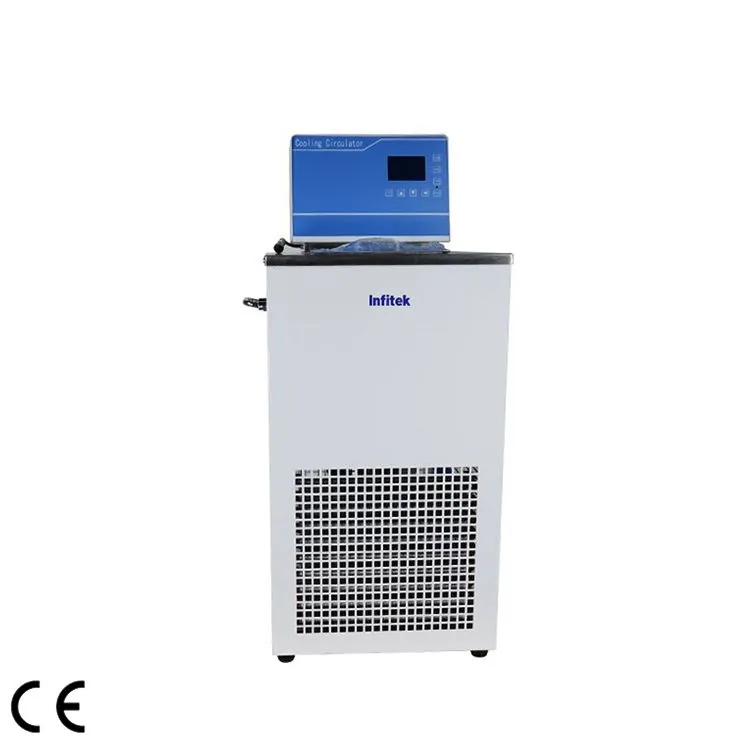

Infitek Recirculating Chiller, RCHL-L Series is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: RCHL-L10-5, RCHL-L10-15, RCHL-L10-20, RCHL-L10-30, RCHL-L10-50, RCHL-L15-5. Compare the remaining models in the specification tables. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | Temp.Range(℃) | Volume(L) | Cooling Consumption(W) | Whole Consumption（W) | Temp. Stability; (℃) | Pump Flow; (L/min) | Opening Dimension; (L*W)(mm) | Internal Dimension; (L*W*H)(mm) | External Dimension; (L*W*H)(mm) | N.W. ; (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| RCHL-L10-5 | -10~RT | 5 | 350 | 300 | ±0.5 | 15 | 180*140 | 280*220*120 | 400*320*660 | 22 |
| RCHL-L10-15 | -10~RT | 15 | 800 | 600 | ±0.5 | 15 | 180*140 | 300*230*200 | 400*345*820 | 30.5 |
| RCHL-L10-20 | -10~RT | 20 | 1000 | 800 | ±0.5 | 15 | 300*220 | 400*320*180 | 485*400*925 | 43 |
| RCHL-L10-30 | -10~RT | 30 | 1500 | 1200 | ±0.5 | 15 | 300*220 | 400*320*230 | 485*400*925 | 45 |
| RCHL-L10-50 | -10~RT | 50 | 3000 | 1800 | ±0.5 | 25 | 330*320 | 500*400*250 | 630*560*1010 | 49 |
| RCHL-L15-5 | -15~RT | 5 | 300 | 600 | ±0.5 | 15 | 180*140 | 280*220*120 | 400*320*660 | 22 |
| RCHL-L15-10 | -15~RT | 10 | 600 | 600 | ±0.5 | 15 | 180*140 | 280*220*120 | 400*345*820 | 30.5 |
| RCHL-L20-5 | -20~RT | 5 | 180 | 600 | ±0.5 | 15 | 180*140 | 280*220*120 | 400*320*660 | 22 |
| RCHL-L20-10 | -20~RT | 10 | 500 | 800 | ±0.5 | 15 | 180*140 | 280*220*165 | 400*345*820 | 30.5 |
| RCHL-L20-20 | -20~RT | 20 | 1300 | 800 | ±0.5 | 15 | 300*220 | 400*320*180 | 485*400*925 | 43 |
| RCHL-L20-30 | -20~RT | 30 | 1600 | 1200 | ±0.5 | 15 | 300*220 | 400*325*230 | 485*400*925 | 45 |
| RCHL-L20-50 | -20~RT | 50 | 3500 | 1800 | ±0.5 | 25 | 330*320 | 500*400*250 | 630*560*1010 | 49 |
| RCHL-L30-5 | -30~RT | 5 | 150 | 1000 | ±0.5 | 15 | 180*140 | 280*220*120 | 400*345*820 | 34.5 |
| RCHL-L30-10 | -30~RT | 10 | 300 | 1000 | ±0.5 | 15 | 180*140 | 280*220*165 | 400*345*820 | 35 |
| RCHL-L30-20 | -30~RT | 20 | 1400 | 1200 | ±0.5 | 15 | 300*220 | 400*320*180 | 485*400*925 | 49 |
| RCHL-L30-30 | -30~RT | 30 | 1700 | 1200 | ±0.5 | 15 | 300*220 | 400*320*230 | 485*400*925 | 51.6 |
| RCHL-L30-50 | -30~RT | 50 | 3800 | 1800 | ±0.5 | 25 | 330*320 | 500*400*250 | 630*560*1010 | 52 |
| RCHL-L40-5 | -40~RT | 5 | 200 | 1000 | ±0.5 | 15 | 180*140 | 280*220*120 | 400*345*820 | 34.5 |
| RCHL-L40-10 | -40~RT | 10 | 400 | 1000 | ±0.5 | 15 | 180*140 | 280*220*165 | 400*345*820 | 35 |
| RCHL-L40-20 | -40~RT | 20 | 1700 | 1200 | ±0.5 | 15 | 300*220 | 400*320*180 | 485*400*925 | 49 |
| RCHL-L40-30 | -40~RT | 30 | 4200 | 1800 | ±0.5 | 15 | 300*220 | 400*320*230 | 485*400*925 | 51.6 |
| RCHL-L40-50 | -40~RT | 50 | 4800 | 2100 | ±0.5 | 25 | 330*320 | 500*400*250 | 630*560*1010 | 54 |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
