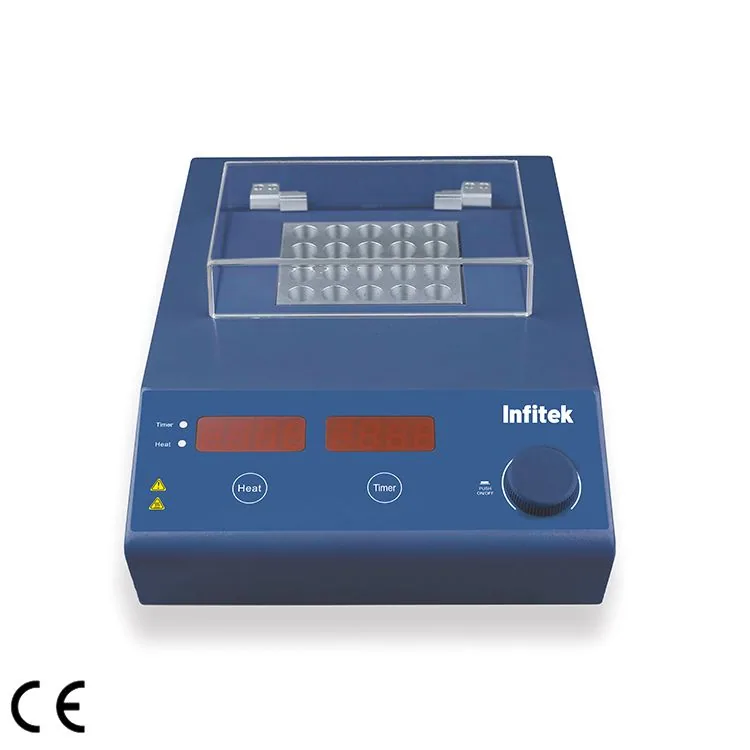

Infitek Mini Dry Bath / Block Heater, DBI-1 Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Mini Dry Bath / Block Heater, DBI-1 Series is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | DBI-105-1 | DBI-105-2 | DBI-150-1 | DBI-150-2 |
|---|---|---|---|---|
| Temperature range (℃) | Room temp.+5~105 | Room temp.+5~105 | Room temp.+5~150 | Room temp.+5~150 |
| Temperature setting range (℃) | 25~105 | 25~105 | 25~150 | 25~150 |
| Temperature control accuracy (℃) | 25~90: ±0.3 | 25~90: ±0.3 | 25~90: ±0.3 | 25~90: ±0.3 |
| Temperature control accuracy (℃) | 90~105: ±0.6 | 90~105: ±0.6 | 90~105: ±0.6 | 90~105: ±0.6 |
| Temperature uniformity@37℃ (℃) | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Power (W) | 100 | 200 | 100 | 200 |
| Time setting range | 0~99h59min | 0~99h59min | 0~99h59min | 0~99h59min |
| External sensor | Yes | Yes | Yes | Yes |
| Display | LED | LED | LED | LED |
| Power supply | 110V/220V, 50Hz/60Hz | 110V/220V, 50Hz/60Hz | 110V/220V, 50Hz/60Hz | 110V/220V, 50Hz/60Hz |
| External dimension (mm) | 290×210×120 | 290×210×120 | 290×210×120 | 290×210×120 |
| Weight (kg) | 3.2 | 3.2 | 3.2 | 3.2 |
| Operating temperature (℃) | +10~40 | +10~40 | +10~40 | +10~40 |
| Operating humidity (%RH) | < 80 | < 80 | < 80 | < 80 |
| Cat. No. | Block types | Capacity | Diameter; Depth |
|---|---|---|---|
| 18900459 | 30×0.2 mL | 6.4 mm; 15 mm | |
| 18900410 | 20×0.5 mL | 8.2 mm; 26.4 mm | |
| 18900461 | 20×1.5 mL | 11 mm; 24.7 mm | |
| 18900462 | 20×2 mL | 11 mm; 34.7 mm | |
| 18900413 | 4×50 mL | 29.8 mm; 48 mm | |
| 18900522 | Two-in-one block, bead bath/water bath; Adapt to S1 | Two-in-one block, bead bath/water bath; Adapt to S1 | |
| 18900523 | Two-in-one block, bead bath/water bath; Adapt to S2 | Two-in-one block, bead bath/water bath; Adapt to S2 | |
| 18900520 | Aluminum beads | Aluminum beads | Aluminum beads |
Manufacturer catalogue checked 2026-09-28.
