Brand: Infitek | Category: Scientific & Laboratory Equipment

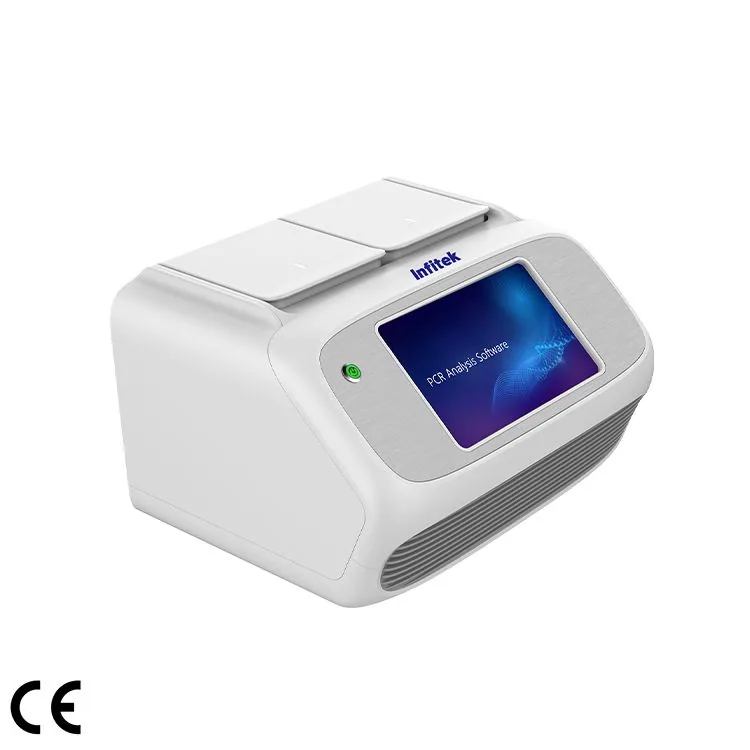

Infitek Real Time PCR System, PCR-Q16 Series is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published models: PCR-Q16-1B, PCR-Q16-4F. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PCR-Q16-1B | PCR-Q16-4F |
|---|---|---|
| Sample Capacity | 16×0.2ml(2×8well, dual block) | 16×0.2ml(2×8well, dual block) |
| Consumable | Clear 0.2 ml PCR tube /8-tube strips | Clear 0.2 ml PCR tube /8-tube strips |
| Reaction Volume | 15-100μL | 15-100μL |
| Temperature control technology | Marlow customized Peltier allow 1,000,000 cycles | Marlow customized Peltier allow 1,000,000 cycles |
| Temperature Range | 0-100℃ (Resolution：0.1℃) | 0-100℃ (Resolution：0.1℃) |
| MAX. Ramp Rate | 6℃/s | 7℃/s |
| Temperature fluctuation | ±0.1℃ | ±0.1℃ |
| Uniformity | ±0.25℃ | ±0.25℃ |
| Accuracy | ±0.25℃ | ±0.25℃ |
| Hot Lid Temperature | 30-115℃(Adjustable, default 105℃) | 30-115℃(Adjustable, default 105℃) |
| Temperature Control | Block/Tube | Block/Tube |
| Excitation Wavelength | 300-800nm | 300-800nm |
| Detection Wavelength | 500-800nm | 500-800nm |
| Factory Calibrated Dyes | F1：FAM/SYBR Green I; | F1：FAM/SYBR Green I; F2：HEX/VIC/JOE/TET F3: ROX F4: CY5 |
| Excitation | Long life LED | Long life LED |
| Detection | High sensitivity photoelectric detector | High sensitivity photoelectric detector |
| Dynamic Range | 1-10^(10 )Copies | 1-10^(10 )Copies |
| Sensitivity | 1 copy | 1 copy |
| Feature function | Quantitative/qualitative analysis, Melting curve， Genotyping | Quantitative/qualitative analysis, Melting curve， Genotyping |
| Date Export Formats | Excel, CSV，Txt | Excel, CSV，Txt |
| Printing | Report can be printed (optional USB thermal printer) | Report can be printed (optional USB thermal printer) |
| Control Method | 7 inch color TFT touch screen， Can be connected to computer control | 7 inch color TFT touch screen， Can be connected to computer control |
| Communication | WIFI/USB2.0 | WIFI/USB2.0 |
| Dimension (L×W×H) | 300×267×198mm | 300×267×198mm |
| Net Weight | 8 Kg | 8 Kg |
| Electricity | 220VAC、50Hz ; DC15V 255W | 220VAC、50Hz ; DC15V 255W |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
