Brand: Infitek | Category: Scientific & Laboratory Equipment

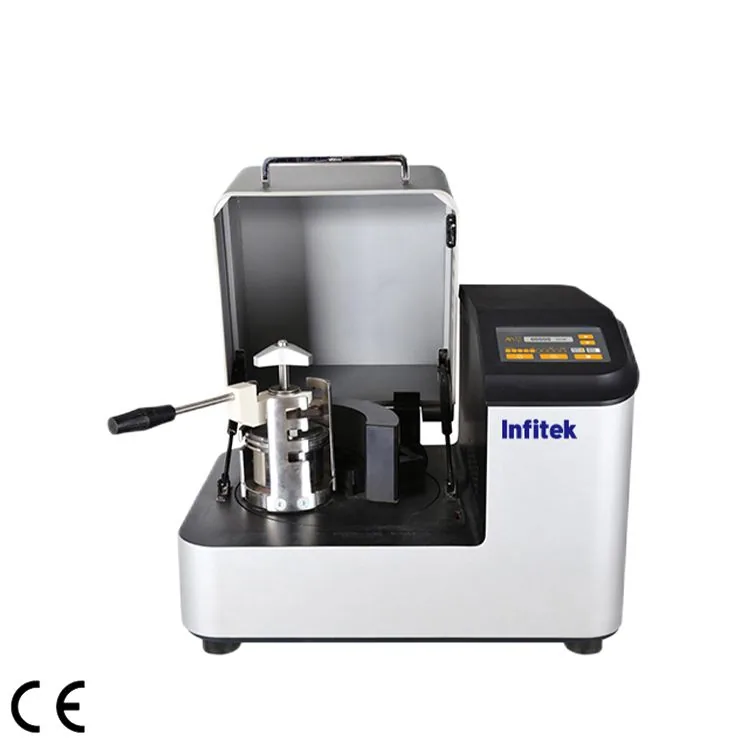

Infitek Planetary Ball Mill, PBM-G Series is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: PBM-G40, PBM-G6P, PBM-G20. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PBM-G40 | PBM-G6P | PBM-G20 |
|---|---|---|---|
| Feed Size | <10mm | <10mm | <10mm |
| Final Fineness | <0.1μm (up to nanometer for colloidal grinding) | <0.1μm (up to nanometer for colloidal grinding) | <0.1μm (up to nanometer for colloidal grinding) |
| Speed | 30-400rpm | 100-650rpm | 50-650rpm |
| Speed Ratio | 1:-2.2 | 1:-2 | 1:-2 |
| Time Setting | 0-99min(cycle times 01-99) | 0-99min(cycle times 01-99) | 0-99min(cycle times 01-99) |
| Effective Sun Wheel Diameter | 360mm | 260mm | 290mm |
| Grinding Pot Capacity | 12/50/80/125/250/500ml | 12/50/80/125/250/500ml | 12/50/80/125ml |
| Number of Grinding Stations | 2, 4 | 1 | 2 |
| Rated Power | 1.5KW | 750W | 750W |
| Electricity | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz |
| External Dimension | 784*598*577mm | 685*510*506mm | 685*510*506mm |
| Package Dimension | 900*1020*890mm | 860*960*780mm | 860*960*780mm |
| Net Weight | 190kg | 125kg | 145kg |
Manufacturer catalogue checked 2026-09-28.
