Brand: Infitek | Category: Scientific & Laboratory Equipment

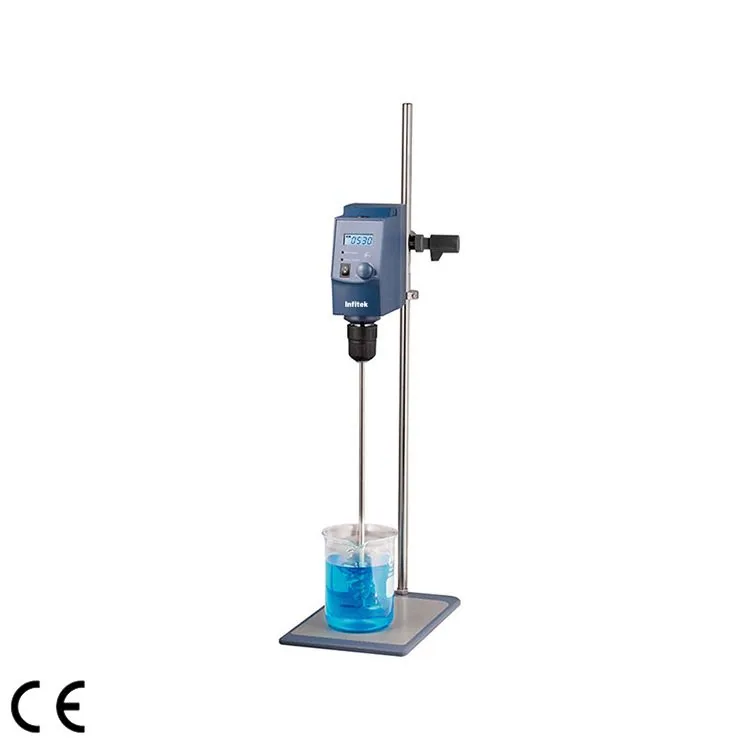

Infitek Overhead Stirrer, OHS-P Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | OHS-20P | OHS-40P | OHS-70P |
|---|---|---|---|
| Max. stirring quantity [H_(2)O] | 20L | 40L | 70L |
| Speed range | 50~2200rpm | 50~2200rpm | 50~1100rpm |
| Speed display accuracy | ±3rpm | ±3rpm | ±10rpm |
| Time settings range | – | – | 0-99h59min |
| Max. torque | 40Nžcm | 60Nžcm | 300Nžcm |
| Viscosity max. | 10000mPa·s | 50000mPa·s | 100000mPa·s |
| Weight | 2.8kg | 2.8kg | 3.2kg |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Voltage | 100~240V, 50/60 Hz | 100~240V, 50/60 Hz | 100~240V, 50/60 Hz |
| Speed display | LCD | LCD | LCD |
| Torque display | LCD | LCD | LCD |
| Overload protection display | LCD | LCD | LCD |
| Chuck range diameter | 0.5~10mm | 0.5~10mm | 0.5~10mm |
| Motor input/output power | 60W/50W | 120W/100W | 180W/160W |
| Power | 70W | 130W | 200W |
| Dimension [WxHxD] | 83 x 220 x 186mm | 83 x 220 x 186mm | 83 x 220 x 186mm |
| Protection class | IP21 | IP21 | IP21 |
| Permissible ambient temperature and humidity | 5~40°C,80%RH | 5~40°C,80%RH | 5~40°C,80%RH |
| Data interface | RS232 | RS232 | RS232 |
Manufacturer catalogue checked 2026-09-28.
