Brand: Infitek | Category: Scientific & Laboratory Equipment

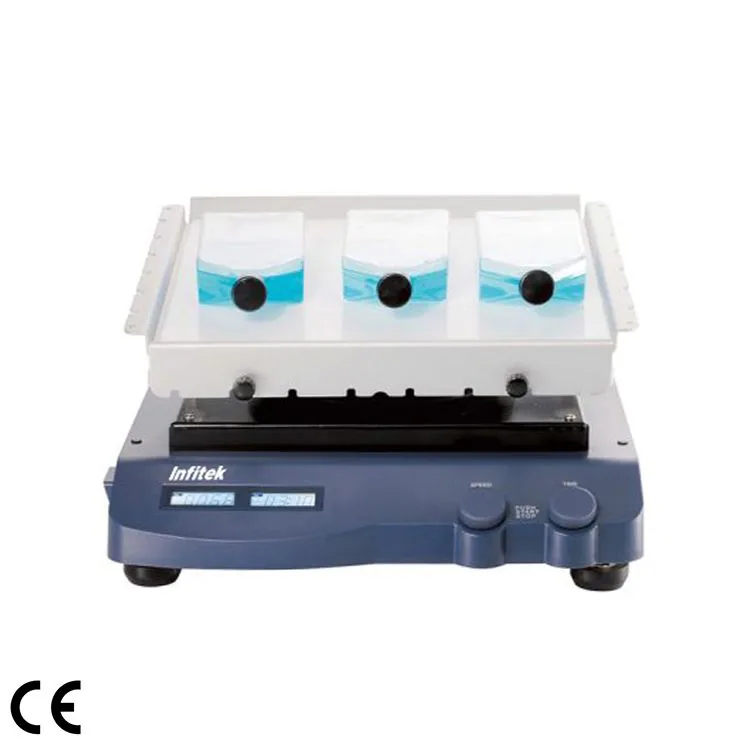

Infitek 3D Shaker, SHK-TD0509 is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published details include Max. load capacity (with platform): 5kg. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | SHK-TD0509 |
|---|---|
| Tilt angle | 9° |
| Max. load capacity (with platform) | 5kg |
| Motor type | DC motor |
| Motor input power | 40W |
| Motor output power | 24W |
| Speed range | 10-70rpm |
| Speed display | LCD |
| Timer display | LCD |
| Time settings range | 1min-99h59min |
| Voltage | 100-240V, 50/60Hz |
| Power | 50W |
| Weight | 9kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
| Dimension (W*D*H) (mm) | 360×430×106 |
| Package Dimension (W*D*H) (mm) | 600*430*510 |
| G.W.(kg) | 16.7 |
| Protection class | IP21 |
| Data connector | – |
Manufacturer catalogue checked 2026-09-28.
