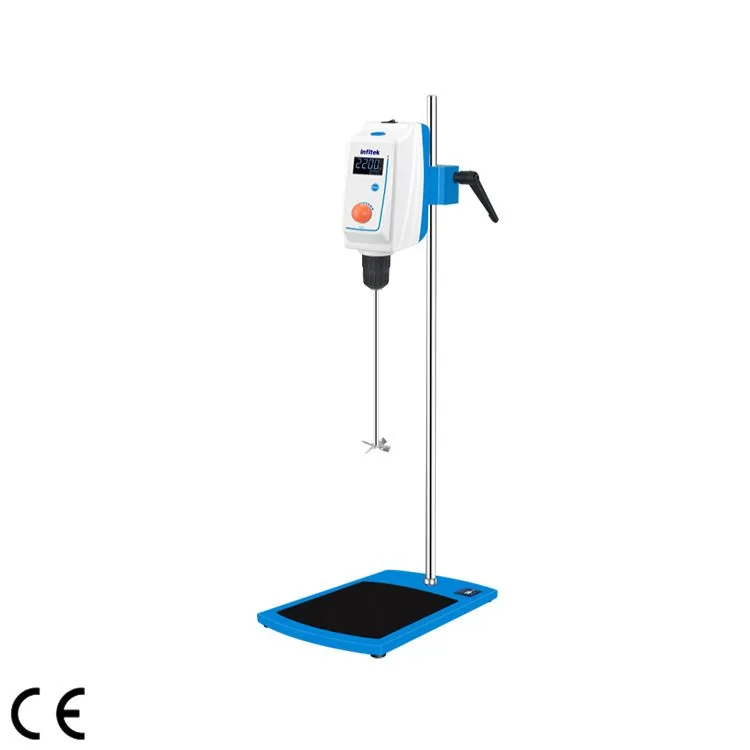

Infitek Overhead Stirrer, OHS-100
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Overhead Stirrer, OHS-100 is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: OHS-100. Published details include Max.Mixing Volume: 40L. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | OHS-100 |
|---|---|
| Max.Mixing Volume | 40L |
| Speed Range | 30~2200 rpm |
| Speed Accuracy | ±1 rpm |
| Speed Display | LCD |
| Speed Mode | Coarse and fine adjustment |
| Timing Range | 1~9999 min |
| Max.Torque | 60 N·cm |
| Max. Viscosity | 50000mPa·s |
| Input Power | 120W |
| Output Power | 100W |
| Protection Class | IP42 |
| Overload Protection | Display failure and stop automatically |
| Motor Protection | Display failure and stop automatically |
| Safety Protection | Chuck protective cover and anti-slip pad |
| Electricity | 100~240V, 50/60Hz |
| Allowable Ambient Temperature | 5~40℃ |
| Allowable Ambient Humidity | 80% |
| Instrument Dimensions | 315*200*780 mm |
| Instrument Package Dimensions | 475*340*200 mm |
| Instrument Set Package Dimensions | 803*400*140 mm |
| N.W./G.W. of Instrument | 4.7kg/6.5kg |
| N.W./G.W. of Instrument Set | 7.5kg/12.5kg |
Manufacturer catalogue checked 2026-09-28.
