Brand: Infitek | Category: Scientific & Laboratory Equipment

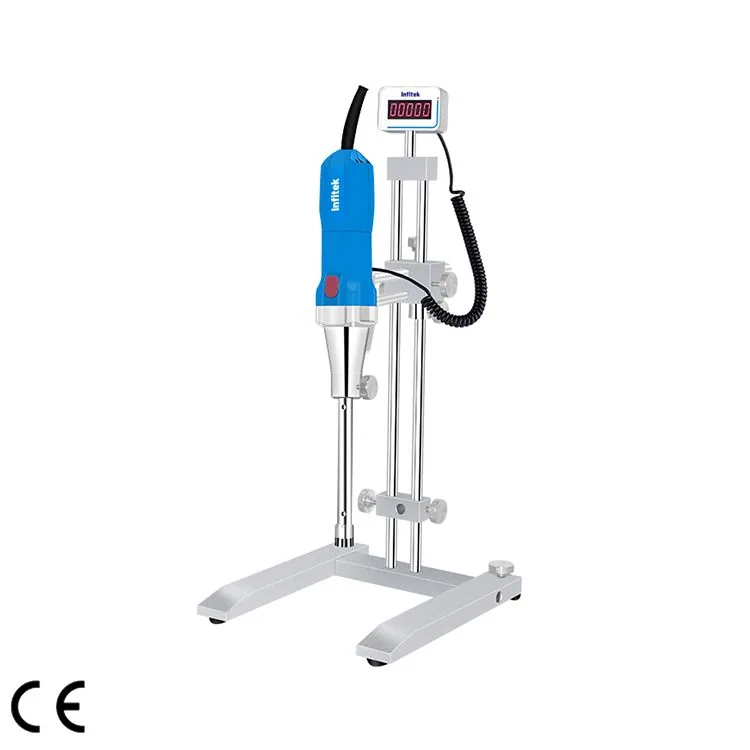

Infitek Homogenizer, HMG-500C, HMG-500D is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: HMG-500C, HMG-500D. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HMG-500C | HMG-500D |
|---|---|---|
| Speed Range | 10000-31000rpm | 10000-31000rpm |
| Processing Capacity | 0.2ml~7000ml (H_(2)O) | 0.2ml~7000ml (H_(2)O) |
| Standard Working Head | 25G | 25G |
| Max. Viscosity | 5,000cP | 5,000cP |
| Speed Display | Graduate display | LCD display |
| Speed Control | Stepless Regulation | Stepless Regulation |
| Material-Contact Parts | 316L Stainless steel | 316L Stainless steel |
| Immersion Shaft Sleeve | PTFE | PTFE |
| Operating Temperature | ≤120℃ | ≤120℃ |
| Ambient Temperature Range | 5~40℃ | 5~40℃ |
| Max. Relative Humidity | 80% | 80% |
| Process Type | Batch processing | Batch processing |
| Electricity | 220V, 50/60Hz | 220V, 50/60Hz |
| Input Power | 500W | 500W |
| Host Net Weight (excl. working head) | 3 kg | 3 kg |
| Host Gross Weight | 3.7kg | 4 kg |
| Host Dimensions (L × Ø) | 275*65 mm | 275*65 mm |
| Specification | Processing Capacity (ml) | Viscosity (cP) | Stator Diameter (mm) | Linear Speed(m/s) | Material | Functional Description |
|---|---|---|---|---|---|---|
| 6G | 0.2-10 | 100 | 6 | 6 | 316 | Suitable for dispersion, fragmentation, homogenization of animal and plant tissues. |
| 8G | 1-60 | 100 | 8 | 8 | 316 | Suitable for dispersion, fragmentation, homogenization of animal and plant tissues. |
| 10G | 10-150 | 200 | 10 | 10 | 316 | Suitable for dispersion, fragmentation, homogenization of animal and plant tissues. |
| 18G | 50-1500 | 3000 | 18 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 18F | 100-1500 | 2000 | 18 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-low viscosity systems. |
| 20G | 50-1500 | 3000 | 20 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 20F | 50-1500 | 3000 | 20 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 25GST | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 25G | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 25F | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-low viscosity systems. |
| 25DG | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. under vacuum and pressurized environments. |
| 25DF | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. under vacuum and pressurized environments. |
| 25JX | 100-5000 | 8000 | 25 | 35 | 316 | Vertical convection shear mixing, suitable for medium-shear dispersion and solid/liquid mixing. |
| 25JQ | 100-5000 | 8000 | 25 | 35 | 316 | Vertical convection shear mixing, suitable for medium-shear dispersion and solid/liquid mixing. |
| 25T1 | 100-5000 | 8000 | 25 | 27 | 316 | Rapid liquid-liquid mixing and dissolution of suspended powders in medium viscosity systems. |
| 25T2 | 100-5000 | 5000 | 25 | 27 | 316 | Rapid liquid-liquid mixing and dissolution of suspended powders in medium viscosity systems. |
| 25T3 | 100-5000 | 5000 | 25 | 27 | 316 | Solid/liquid dispersion mixing, suitable for wet grinding, effectively reducing material size and increasing uniformity. |
| 25T4 | 100-5000 | 5000 | 25 | 27 | 316 | Ultra-strong dispersion and tissue disruption, suitable for pulverization, homogenization, dispersion, and shearing of animal and plant tissues. |
| 25T5 | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for dispersion and homogenization in medium-high viscosity systems. |
| 25T6 | 100-5000 | 5000 | 25 | 27 | 316 | Ultra-high-speed stirring, suitable for dissolution and dispersion in medium-high viscosity systems. |
| 30JX | 250-10000 | 15000 | 30 | 47 | 316 | Suitable for paste, fibrous materials, liquids. |
| 30JQ | 250-8000 | 15000 | 30 | 47 | 316 | Suitable for paste, fibrous materials, liquids. |
Manufacturer catalogue checked 2026-09-28.
