Brand: Infitek | Category: Scientific & Laboratory Equipment

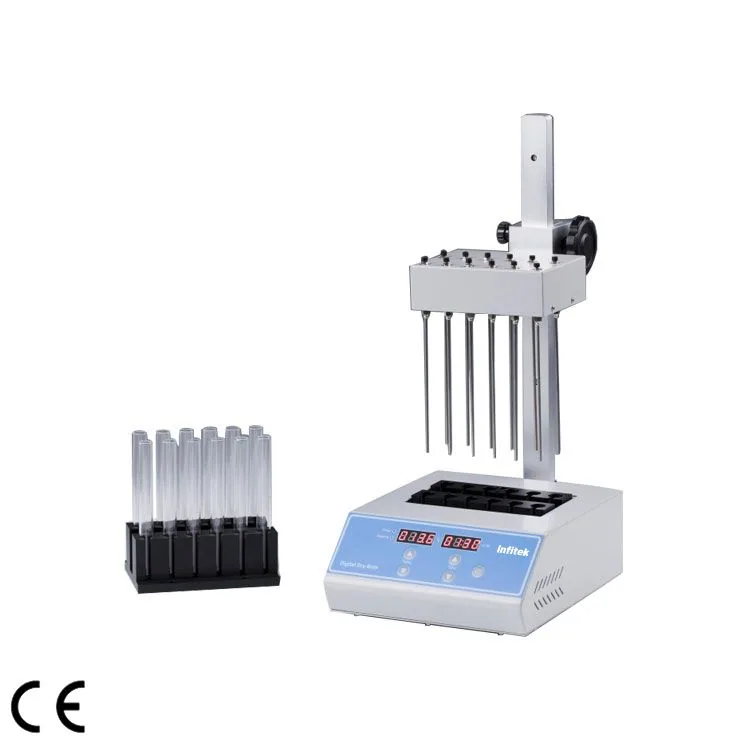

Infitek Nitrogen Evaporator, NEC160-1C is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: NEC160-1C, RC02 027 001, RC02 027 002, RC02 027 003, RC02 027 004, RC02 027 005. Compare the remaining models in the specification tables. Published details include Temp range: RT.+5°C -160°C. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | NEC160-1C |
|---|---|
| Temp range | RT.+5°C -160°C |
| Temp accuracy | ±0.5℃(@40℃) |
| Temp accuracy | ±1℃(@120℃) |
| Temp uniformity | ±0.5℃ |
| Display accuracy | 0.1℃ |
| Time range | 1-99h59min/∞ |
| Heating time | ≤15min(from 25℃ to 160℃) |
| Max vertical travel | 200mm |
| Max gas usage | 15L/min |
| Max gas pressure | 0.1Mpa |
| Block qty | 1 |
| Max. power | 500W |
| Electricity | AC220V or AC110V /50~60Hz |
| Dimensions | 260*220*475mm |
| Weight | 7.3kg |
| Model | Diameter(mm) | Depth(mm) | Capacity |
|---|---|---|---|
| RC02 027 001 | 10.5 | 50 | 12 |
| RC02 027 002 | 12.5 | 50 | 12 |
| RC02 027 003 | 13.5 | 50 | 12 |
| RC02 027 004 | 15.5 | 50 | 12 |
| RC02 027 005 | 16.5 | 50 | 12 |
| RC02 027 006 | 19.5 | 50 | 12 |
| RC02 027 007 | 20.5 | 50 | 12 |
Manufacturer catalogue checked 2026-09-28.
