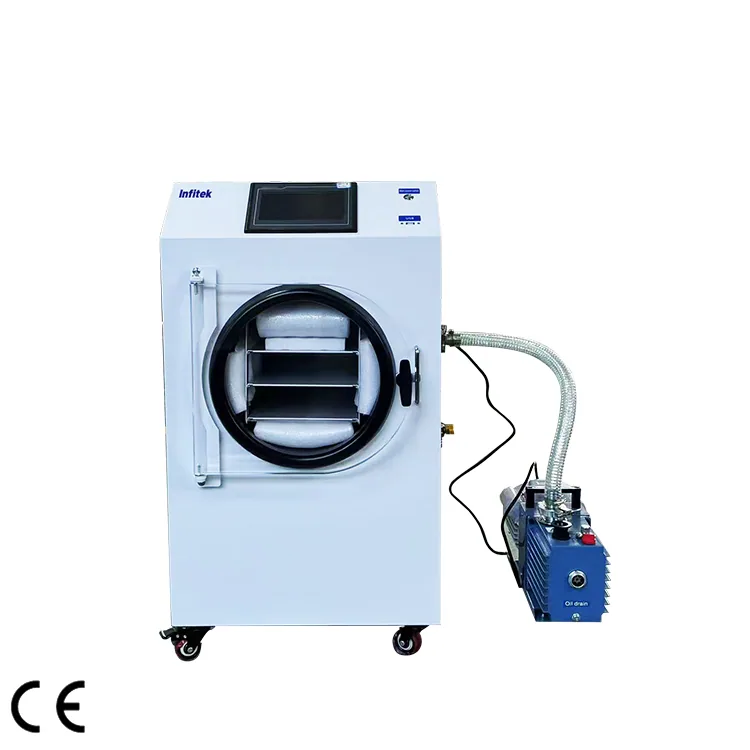

Infitek Freeze dryer, LYO40-ISF Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Freeze dryer, LYO40-ISF Series is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: LYO40-IS1F, LYO40-IS4F, LYO40-IS6F. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | LYO40-IS1F | LYO40-IS4F | LYO40-IS6F |
|---|---|---|---|
| Freeze Drying Area(m^(2)) | 0.12 | 0.34 | 0.55 |
| Tray(Qty) | 3 | 4 | 4 |
| Tray Dimensions(W*D)(mm) | 140* 275 | 200 * 425 | 330 *440 |
| Height Between Trays(mm) | 45 | 45 | 45 |
| Condenser Temperature (no-loading)(℃) | -40 | -40 | -40 |
| Vacuum Degree(no-loading) (Pa) | 15 | 15 | 15 |
| Ice Condenser Capacity (kg/24h) | 2 | 4 | 6 |
| Handling Capacity (kg/batch) | 1-2 | 4-6 | 6-8 |
| Refrigerant | CFC-free | CFC-free | CFC-free |
| Consumption(kW) | 0.75 | 1.1 | 2.3 |
| Electricity | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz | AC220V/50Hz or AC110V/60Hz |
| External Dimensions(W*D*H)(mm) | 550*600*780 | 500*640*900 | 640*680*1180 |
| Package Dimension (W*D*H)(mm) | 710*600*1230 | 840*630*1270 | 820*800*1540 |
| Gross Weight(kg) | 118 | 140 | 200 |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
