Brand: Infitek | Category: Scientific & Laboratory Equipment

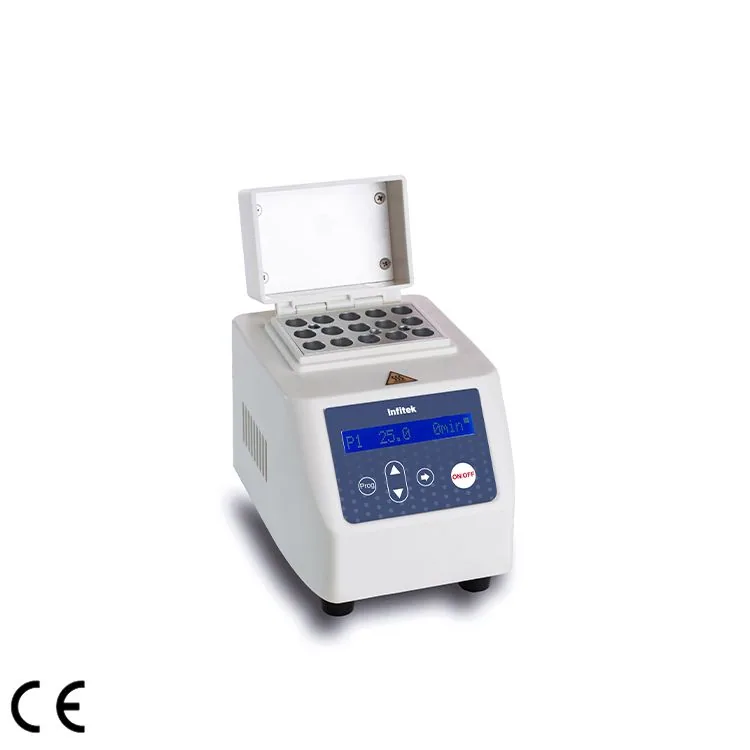

Infitek Mini Dry Bath / Block Heater, DBI-R100II, DBI-100II is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | DBI-R100II | DBI-100II |
|---|---|---|
| Temperature setting range (℃) | 0-100 | 25-100 |
| Temperature range (℃) | Room temperature-23~100 | Room temperature+5~100 |
| Temperature control accuracy (℃) | ±0.5 | ±0.5 |
| Temperature display accuracy (℃) | 0.1 | 0.1 |
| Minimum time taken for heating (25℃-100℃) | ≤20min | ≤20min |
| Minimum time for cooling (20℃-10℃) | ≤25min | / |
| Max. Heating Rate | 8℃/min | 6.5℃/min |
| Max. Cooling Rate | 3℃/min | / |
| Time setting range | 0-999min/0-999sec | 0-999min/0-999sec |
| Display | LCD | LCD |
| No. of programs in memory | 9 (2 steps for each) | 9 (2 steps for each) |
| Rapid calibration | Support | Support |
| USB interface | Support | Support |
| Error code reminder | Support | Support |
| External dimension (mm) | 110×162×140 | 110×162×140 |
| Overall weight (kg) | ≤1 | ≤1 |
| Power supply | DC12V, AC100V-240V, 50Hz/60Hz | DC12V, AC100V-240V, 50Hz/60Hz |
| Power (W) | 60 | 60 |
| Operation temperature (℃) | +10-40 | +10-40 |
| Operation humidity (%RH) | ≤80 | ≤80 |
| Cat. No. | Block types | Capacity | Diameter×depth |
|---|---|---|---|
| 18900414 | 40×0.2 mL | 6.4mm×20mm | |
| 18900415 | 24×0.5 mL | 8.2mm×28.4mm | |
| 18900416 | 15×1.5 mL | 11.2mm×31mm | |
| 18900428 | 15×2 mL | 11mm×31mm | |
| 18900417 | 6×5 mL | 17mm×31mm | |
| 18900426 | 4×15 mL | 16.4mm×45mm | |
| 18900427 | 2×50 mL | 29mm×45mm |
Manufacturer catalogue checked 2026-09-28.
