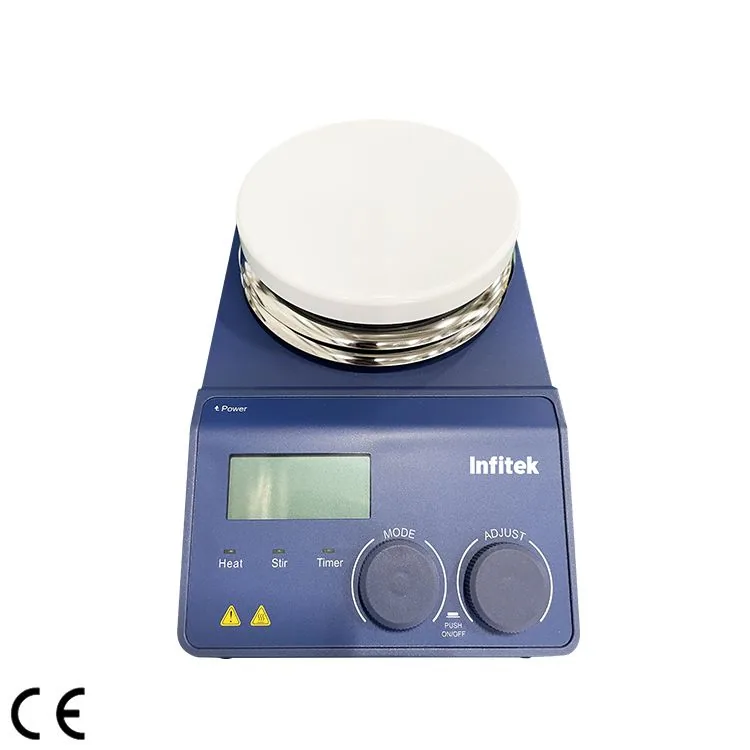

Infitek Magnetic Hotplate Stirrer, 340℃, HPS-340A
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Magnetic Hotplate Stirrer, 340℃, HPS-340A is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published details include Heating temperature range: Room temp.-340℃,. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | HPS-340A |
|---|---|
| Work plate dimension | φ135 mm (5 inch) |
| Work plate material | Aluminum cover with ceramic coating |
| Motor type Brushless | Brushless DC motor |
| Heating temperature range | Room temp.-340℃, |
| increment | 1℃ |
| Temperature display accuracy | ±0.1℃ |
| Speed range | 100-1500rpm resolution±1rpm |
| Time settings range | 1min-99h59min |
| Max. stirring quantity [H2O] | 20L |
| Speed display | LCD |
| Temperature display | LCD |
| Max. magnetic bar[length] | 80mm |
| Temperature control accuracy | ±1°C(<100℃) ±1%(>100℃) |
| External temperature sensor | PT1000 (accuracy ±0.2℃) |
| Over temperature protection | 420℃ |
| “Hot” warning | 50℃ |
| Data connector | RS232 |
| Protection class | IP21 |
| Voltage | 100~120/200-240V 50/60Hz |
| Heating power | 600w |
| Power | 650w |
| Motor rating input | 18w |
| Motor rating output | 10w |
| Dimension [WxDxH] | 280×160×100mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40℃；80%RH |
Manufacturer catalogue checked 2026-09-28.
