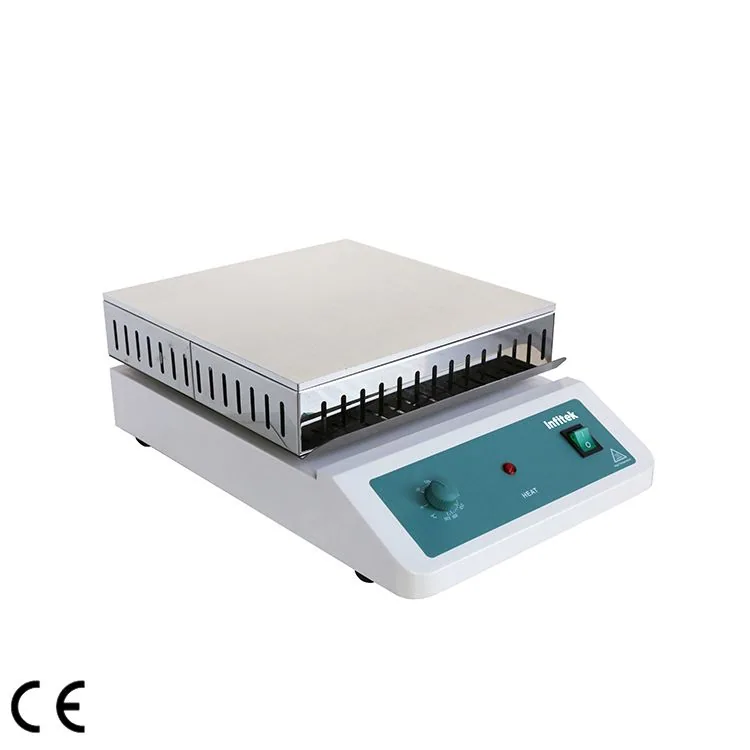

Infitek Hot Plate, HPT Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Hot Plate, HPT Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: HPT-320-5B, HPT-320-8B, HPT-320-9B, HPT-350-5B, HPT-350-8B, HPT-350-9B. Compare the remaining models in the specification tables. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HPT-320-5B | HPT-320-8B | HPT-320-9B | HPT-350-5B | HPT-350-8B | HPT-350-9B | HPT-400-5B | HPT-400-8B | HPT-400-9B |
|---|---|---|---|---|---|---|---|---|---|
| Work plate dimension(mm) | 300×300 | 350×450 | 400×600 | 300×300 | 350×450 | 400×600 | 300×300 | 350×450 | 400×600 |
| Work plate load(kg) | 20 | 30 | 40 | 20 | 30 | 40 | 20 | 30 | 40 |
| Work plate material | Aluminum-tensile | Aluminum-tensile | Aluminum-tensile | Aluminum-tensile | Aluminum-tensile | Aluminum-tensile | Graphite Plate | Graphite Plate | Graphite Plate |
| Time setting | No | No | No | 0~9999min/h | 0~9999min/h | 0~9999min/h | 0~9999min/h | 0~9999min/h | 0~9999min/h |
| Temperature setting | Scale | Scale | Scale | Digital display | Digital display | Digital display | Digital display | Digital display | Digital display |
| Max Temp.(℃) | 320 | 320 | 320 | 350 | 350 | 350 | 400 | 400 | 400 |
| Temp. accuracy | ±10% | ±10% | ±10% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Plate Temp. uniformity | ±15% | ±15% | ±15% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Temperature sensor | K model | K model | K model | K model | K model | K model | K model | K model | K model |
| Heating power(W) | 800 | 1500 | 2200 | 1200 | 2400 | 3500 | 1800 | 3000 | 4500 |
| Power supply(50/60Hz) | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
| Plug | Yes | Yes | Yes | Yes | Yes | No | Yes | Yes | No |
| Exterior size(W×D×H) (mm) | 340×370×220 | 420×500×220 | 470×650×220 | 340×370×220 | 420×500×220 | 470×650×220 | 340×370×220 | 420×500×220 | 470×650×220 |
| Packing size(W×D×H) (mm) | 520×380×250 | 570*530*260 | 660×620×250 | 520×380×250 | 560×520×250 | 700*660*260 | 550×410×270 | 600×560×270 | 700×660×270 |
| NW/GW (kg) | 9/10 | 11/16 | 15/17 | 9/10 | 11/12 | 15/25 | 12/13.5 | 19/20 | 28/30 |
Manufacturer catalogue checked 2026-09-28.
