Brand: Infitek | Category: Scientific & Laboratory Equipment

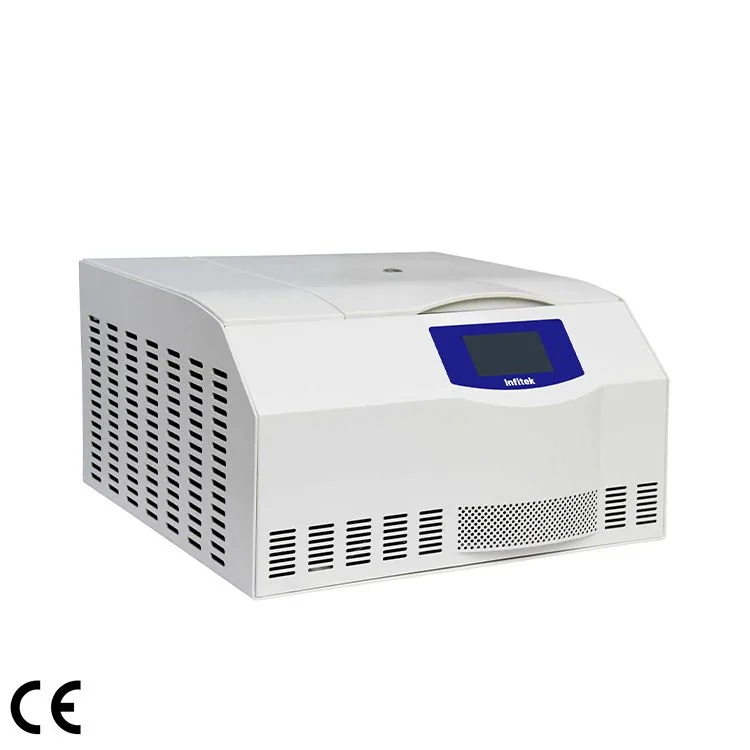

Infitek Low Speed Refrigerated Centrifuge, CFGR-5SY is listed in VVON's laboratory centrifuges range for Bangladesh. Published models: CFGR-5SY. Published details include Max. Speed: 5000rpm; Max. RCF: 4730×g. Compare RCF, rotor format, sample capacity and temperature control. For a quotation, send the sample type, tube sizes, required RCF, rotor and refrigeration needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | CFGR-5SY |
|---|---|
| Max. Speed | 5000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×800ml Swing rotor |
| Temperature Range | -20℃～40℃ |
| Timer | 1s～99h59min59s |
| Speed Accuracy | ±10rpm |
| Temperature Accuracy | ±1℃ |
| Sound Emission | ≤65dBA |
| Electricity | AC 110V/220V, 50/60Hz |
| External Dimension | 675*725*400mm |
| N.W./G.W. | 118kg/148kg |
| Package Dimension | 930*830*580mm |
| Rotor No. | Rotor Type | Max. Speed | Max. Capacity | Max. RCF | Notes |
|---|---|---|---|---|---|
| No.05254 | Swing Rotor | 4000rpm | 4×25×5/7ml | 3450×g | For 2-7ml vacuum tube |
| No.05207 | Swing Rotor | 4000rpm | 4×800ml(round) | 3450×g | Optional biosafety cover |
| Adapter | 4×500ml(falcon) | 500ml falcon | |||
| Adapter | 4×250ml(falcon) | 250ml falcon | |||
| Adapter | 4×24×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×19×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×14×10/15ml | For 10/15ml tube | |||
| Adapter | 4×5×50ml | For 50ml tube | |||
| No.05608 | Swing Rotor | 4000rpm | 4×500ml(round) | 3530×g | Optional biosafety cover |
| Adapter | 4×18×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×14×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×9×10/15ml | For 10/15ml tube | |||
| Adapter | 4×3×50ml | For 50ml tube | |||
| No.05609 | Swing Rotor | 4000rpm | 4×500ml(rectangle) | 3450×g | Optional biosafety cover |
| Adapter | 4×20×5/7ml vacuum tube | For 2-7ml vacuum tube | |||
| Adapter | 4×16×10ml vacuum tube | For 10ml vacuum tube | |||
| Adapter | 4×12×10/15ml | For 10/15ml tube | |||
| Adapter | 4×5×50ml | For 50ml tube | |||
| No.05611 | Swing Rotor | 4000rpm | 4×4×96 well | 2940×g | Optional |
| No.05610 | Swing Rotor | 4000rpm | 4×7×50ml | 3470×g | For 50ml falcon tube |
| No.05612 | Swing Rotor | 4000rpm | 4×600ml(oval) | 3530×g | 200-500ml Blood Bag |
| No.05213 | Swing Rotor | 4000rpm | 2×5×96 well | 3210×g | Optional |
| No.05629 | Swing Rotor | 5000rpm | 4×1×50ml | 4730×g | Optional |
| No.05630 | Swing Rotor | 5000rpm | 4×1×100ml | 4730×g | Optional |
| No.05635 | Swing Rotor | 4000rpm | 4×2×100ml | 3200×g | Optional |
| No.05634 | Swing Rotor | 4000rpm | 4×2×50ml | 3200×g | Optional |
| No.05631 | Swing Rotor | 4000rpm | 4×8×15ml | 3200×g | For 5-15ml tube |
| No.05639 | Swing Rotor | 4000rpm | 4×16×5ml vacuum tube | 2530×g | For 2ml vacuum tube |
| No.05638 | Swing Rotor | 4000rpm | 4×16×7ml vacuum tube | 2890×g | For 5ml vacuum tube |
| No.05640 | Swing Rotor | 4000rpm | 4×12×10ml vacuum tube | 2880×g | For 10ml vacuum tube |
| No.05614 | Swing Rotor | 4000rpm | 4×30×7ml vacuum tube | 3160×g | For 5ml vacuum tube |
| No.05615 | Swing Rotor | 4000rpm | 4×40×7ml vacuum tube | 3270×g | For 5ml vacuum tube |
| No.05618 | Swing Rotor | 4000rpm | 4×28×10m vacuum tube | 3270×g | For 10ml vacuum tube |
| No.05237 | Swing Rotor | 4000rpm | 4×Pasteur milk bottle | 3830×g | Pasteur milk bottle |
| No.05183 | Angle Rotor | 2000rpm | 16×Gabor milk fat meter | 896×g | For Gabor milk fat meter |
| No.05141 | Angle Rotor | 5000rpm | 30×15ml | 3830×g | Optional |
| No.05144 | Angle Rotor | 5000rpm | 12×50ml | 3860×g | Optional |
| No.05145 | Angle Rotor | 4000rpm | 24×50ml | 2970×g | Optional |
| No.05148 | Angle Rotor | 4000rpm | 12×100ml | 2970×g | Optional |
Manufacturer catalogue checked 2026-09-28.
