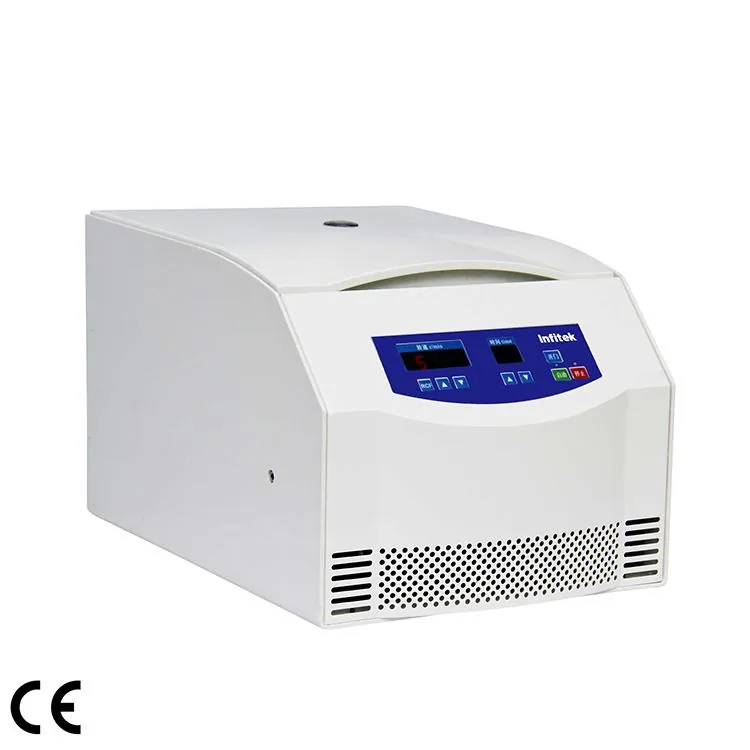

Infitek High Speed Centrifuge, CFG-16BY
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek High Speed Centrifuge, CFG-16BY is listed in VVON's laboratory centrifuges range for Bangladesh. Published models: CFG-16BY. Published details include Max. Speed: 16000rpm; Max. RCF: 20600×g. Compare RCF, rotor format, sample capacity and temperature control. For a quotation, send the sample type, tube sizes, required RCF, rotor and refrigeration needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | CFG-16BY |
|---|---|
| Max. Speed | 16000rpm |
| Max. RCF | 20600×g |
| Max. Capacity | 6×100ml Angle rotor |
| Timer | 1s～99min |
| Speed Accuracy | ±10rpm |
| Sound Emission | ≤62dBA |
| Electricity | AC 110V/220V, 50/60Hz |
| External Dimension | 510*370*320mm |
| N.W./G.W. | 42kg/50kg |
| Package Dimension | 715*435*420mm |
| Rotor No. | Rotor Type | Max. Speed | Max. Capacity | Max. RCF |
|---|---|---|---|---|
| No.05106 | Angle rotor | 14000rpm | 40×0.5ml | 19970×g |
| No.05101 | Angle rotor | 16000rpm | 12×1.5/2ml | 17940×g |
| No.05102 | Angle rotor | 15000rpm | 24×1.5/2ml | 20600×g |
| No.05103 | Angle rotor | 13500rpm | 30×1.5/2ml | 19340×g |
| No.05104 | Angle rotor | 13000rpm | 48×1.5/2ml | 17930×g |
| No.05107 | Angle rotor | 15000rpm | 16×5ml | 19350×g |
| No.05108 | Angle rotor | 14000rpm | 12×7ml | 16370×g |
| No.05109 | Angle rotor | 14000rpm | 6×10ml | 16460×g |
| No.05110 | Angle rotor | 12000rpm | 12×10ml | 14510×g |
| No.05113 | Angle rotor | 11000rpm | 8×15ml | 12730×g |
| No.05114 | Angle rotor | 10000rpm | 12×15ml | 11840×g |
| No.05116 | Angle rotor | 12000rpm | 8×20ml | 14510×g |
| No.05117 | Angle rotor | 12000rpm | 6×30ml | 14000×g |
| No.05120 | Angle rotor | 11000rpm | 6×50ml | 13480×g |
| No.05122 | Angle rotor | 7000rpm | 8×50ml | 6190×g |
| No.05128 | Angle rotor | 10000rpm | 4×100ml | 10310×g |
| No.05129 | Angle rotor | 10000rpm | 6×100ml | 11380×g |
| No.05140 | Angle rotor | 5000rpm | 24×15ml | 3500×g |
| No.05224 | Swing rotor | 15000rpm | 4×5ml | 19920×g |
| No.05216 | Swing rotor | 4000rpm | 2×3×48 well | 2300×g |
Manufacturer catalogue checked 2026-09-28.
