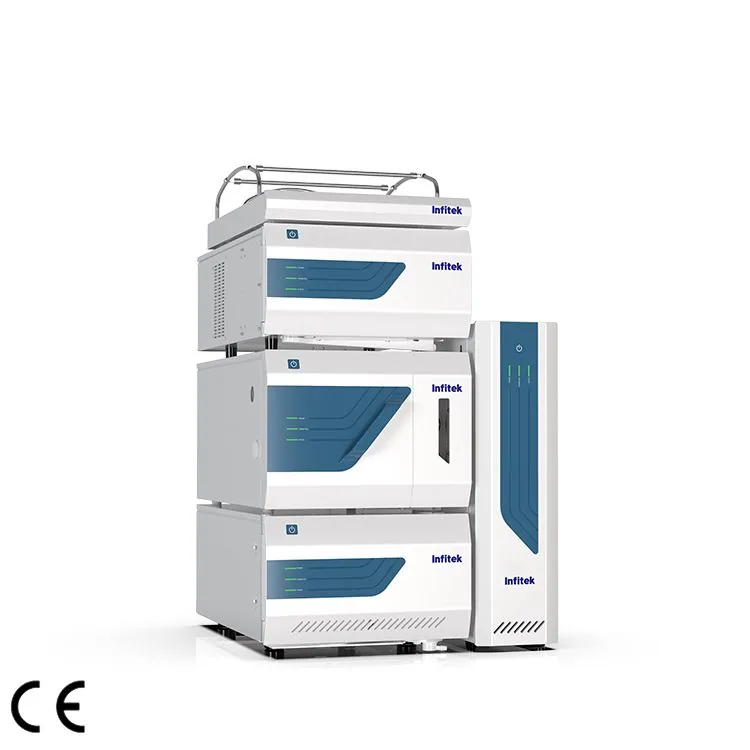

Infitek Liquid Chromatograph, HPLC-W3400

Brand: Infitek | Category: Scientific & Laboratory Equipment

Infitek Liquid Chromatograph, HPLC-W3400

Infitek Liquid Chromatograph, HPLC-W3400 is listed in VVON's chromatography systems & consumables range for Bangladesh. Match the analytical method, detector, column and sample-handling configuration. For a quotation, send the analytes, method, detector, columns, samples per day and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications 1
High-Pressure Pump Maximum Pressure and Compatibility: Capable of withstanding up to 75MPa, compatible with smaller particle size chromatographic columns, enabling seamless method transfer. Acetonitrile-Resistant Valve: Features a high-precision, self-restoring, acetonitrile-resistant one-way check valve, ensuring stable fluid delivery in acetonitrile applications. The further optimized two-stage floating technology significantly reduces wear on highpressure seals, extending the lifespan of consumables. Flow Stability and Gradient Accuracy: Proprietary fluid compression compensation technology with real-time feedback electronic pulsation suppression control ensures stable flow and precise gradient accuracy. Quaternary Pump with Degassing: Quaternary pump integrated with 5-channel degassing (A, B, C, D, AS). Binary Pump with Solvent Switching: The binary pump comes with a standard solvent switching valve, enabling binary and four-way expansion for analysis. User-Friendly Design: Equipped with a touch panel switch, meeting the needs for offline operation and human-machine separation.
Auto sampler Needle-in-flow design ensures zero sample loss during injection. Compatible with different specifications of sample trays, expanding user application scenarios. Metering pump for precise sampling, offering longer lifespan and higher accuracy compared to syringe pumps. Optimized needle cleaning flow path minimizes cross-contamination, ensuring sample purity. Standard obstacle protection function effectively prevents damage to the injection needle. Standard empty bottle detection function to prevent invalid sample injection. Full range of sample pretreatment functions supporting online enrichment, online derivatization, online dilution and mixing, further expanding user method development scenarios. Optional refrigeration component to ensure detection accuracy of thermally unstable substances. Optional condensation peristaltic pump active drainage function to effectively prevent damage to the equipment from overflow of condensation accumulation. Pump and autosampler can be linked for purge operation, eliminating the need for manual purge valve operation.
Column Oven Default configuration with semiconductor cooling module and electric-resistive heating module, achieving full temperature range control with heating and cooling functions. Two control modes ensure longer lifespan and higher reliability of temperature control components. Forced air circulation for precise and uniform temperature control throughout the chamber. Standard preheating module with the same temperature range as the set temperature to ensure optimal temperature consistency. Multi-column capacity design supporting up to 3 chromatographic columns of 300mm. Supports upgrade to 2D configuration with built-in high-pressure switching valve, and can be expanded to support multiple external switching valve. Optional chromatographic column GLP information recording function
Manufacturer specifications 2
Diode Array Detector Capable of acquiring chromatographic signals across all wavelengths from 190 to 800nm, exhibiting detailed spectral structures. Features a high-intensity deuterium lamp, concave holographicgrating, 1024-element photodiode array, and all-solid-state, highly stable optical path structure. Provides three-dimensional spectra, contour plots, chromatograms, spectra, maximum intensity plots, and other information to supportmultiple application needs, including advanced functions such as peak purity calculations. Achieves extreme low signal noise and drift through independent chamber temperature control, active fan speed control, and passive temperature stabilization of internal materials.
Refractive Index Detector Designed with a two-chamber configuration and upgraded to a long-life LED light source for maintenance-free operation over its lifetime. Freely switchable between entryand exit of rinse modes for automatic rinsing of the reference flow Utilizesa high-precision data acquisition system with sequential rinsing, polarity control, and temperature control. Imported PD tube ensures high sensitivity. Equipped with temperature and leak detection alarms for real-time monitoring of instrument status. Features a touch-sensitive LCD display supporting both local user control and chromatography software workstation modes. Supports analog and digital signal outputs, compatible with chromatography systems from other brands.
Ultraviolet Detector Dual-lamp design with a high-transparency deuterium lamp and an optional tungsten lamp, greatly extending the detector’s detection range and enabling full-range detection from 188nm to 900nm. Built-in multi-dimensional wavelength calibration functions (including holmium oxide, potassium dichromate, erbium perchlorate, and deuterium lamp characteristic wavelength calibration) for extremely high wavelength accuracy. Capabilities include flow-stop spectra scanning, dual-wavelength detection, and wavelength programming. Supports proportional chromatogram analysis and aids in extended peak purity analysis.
Fluorescence Detector Dual monochromator structure allows flexible setting of excitation and emission wavelengths,simultaneously monitoring four wavelength channels. Supportsmultiple scanning modes including laser spectral scanning, emission spectral scanning, and lamp spectrum scanning. Provides a stable light source with a direct-current xenon lamp, and multi-level precision detection gain settings for a large dynamic range and high signal-to-noise ratio. Features a touch-sensitive LCD display supporting both local user control and chromatography software workstation modes. Supports analog and digital signal outputs, compatible with chromatography systems from other brands.
Evaporative Light Scattering Detector Designed for low-temperature evaporation, offering high sensitivity for thermally unstable and semi-volatile compounds. Built-in gas mass flow meter with capillaryheat transfer differential calorimetry for precise gas flow control. Independent flow control for nebulization, evaporation, and detection ensures excellent response reproducibility. Drift tube features corrosion-resistant treatment and stainless steel construction (excluding fragile glass and easily corroded components). Imported nebulizer and photomultiplier tube ensure high signal sensitivity, long lifespan, and wide adjustable range. Equipped with temperature, leak, and gas leakage detection alarms for real-time monitoring of instrument status. Features a touch-sensitive LCD display supporting both local user control and chromatography software workstation modes. Supports analog and digital signal outputs, compatible with chromatography systems from other brands.

Manufacturer catalogue checked 2026-09-28.

View on manufacturer website
