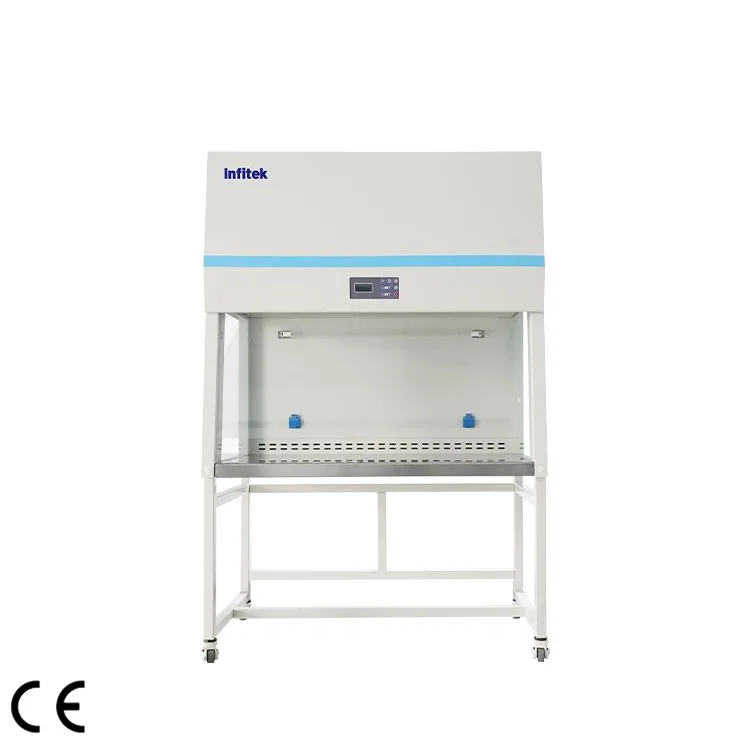

Infitek Laminar Flow Cabinet, Vertical Type, LCB-VY Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Laminar Flow Cabinet, Vertical Type, LCB-VY Series is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: LCB-V1300Y, LCB-V1800Y. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | LCB-V1300Y | LCB-V1800Y |
|---|---|---|
| External Dimensions (W*D*H) | 1300*750*2020mm | 1800*750*2020mm |
| Internal Dimensions (W*D*H) | 1200*640*625mm | 1700*640*625mm |
| Work Surface Height | 750mm, Can be customized as needed | 750mm, Can be customized as needed |
| Airflow Velocity | 0.30~0.5m/s | 0.30~0.5m/s |
| Material | Working area: 304 stainless steel; Main body: Cold rolled steel with antimicrobial powder coating; Front window: 5mm toughened glass, anti-UV. | Working area: 304 stainless steel; Main body: Cold rolled steel with antimicrobial powder coating; Front window: 5mm toughened glass, anti-UV. |
| Pre-Filter | Polyester fiber | Polyester fiber |
| HEPA Filter Efficiency | ≥99.995% at particle size of 0.3μm | ≥99.995% at particle size of 0.3μm |
| Sound Emission | ≤65dB(A) | ≤65dB(A) |
| Illumination | 700lx | 700lx |
| Safety | Colonies Number≤0.5CFU/30min | Colonies Number≤0.5CFU/30min |
| Cleanliness Level | ISO Level 5 (Class 100) | ISO Level 5 (Class 100) |
| LED Lamp | 14W*1 | 22W*1 |
| UV Lamp | 30W*1 | 40W*1 |
| Electricity | AC 220V±10%, 50/60Hz | AC 220V±10%, 50/60Hz |
| Rated Power (including load) | 1400W | 1500W |
| Standard Accessories | Base stand, UV Lamp, LED Lamp, Waterproof socket, HEPA Filter, Pre-Filter. | Base stand, UV Lamp, LED Lamp, Waterproof socket, HEPA Filter, Pre-Filter. |
| Optional Accessorie | HEPA Filter, Pre-Filter, UV Lamp, Centrifugal Fan, Water tap, Air tap. | HEPA Filter, Pre-Filter, UV Lamp, Centrifugal Fan, Water tap, Air tap. |
Manufacturer catalogue checked 2026-09-28.
