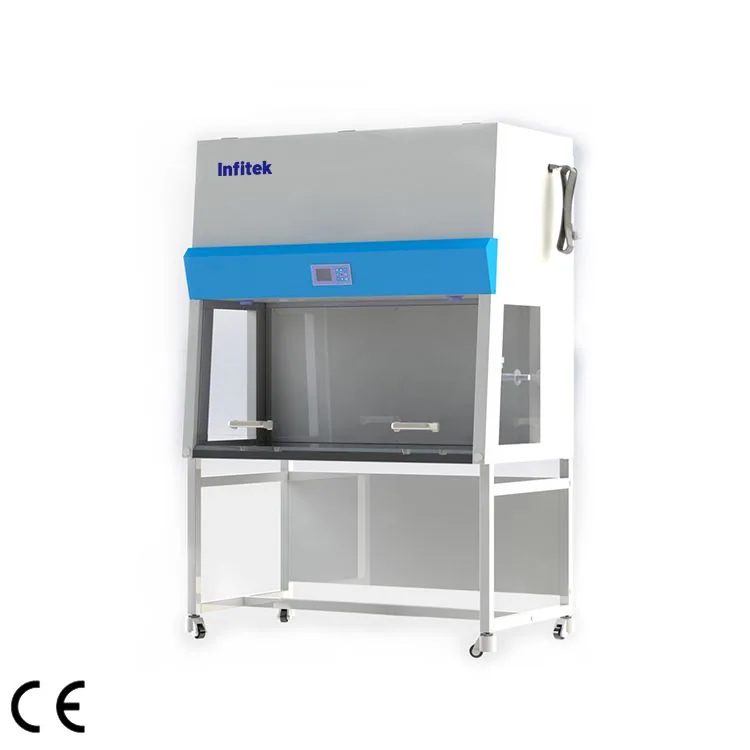

Infitek Laminar Flow Cabinet, Horizontal Type, LCB-HF Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Laminar Flow Cabinet, Horizontal Type, LCB-HF Series is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: LCB-H3F, LCB-H4F, LCB-H5F, LCB-H6F. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | LCB-H3F | LCB-H4F | LCB-H5F | LCB-H6F |
|---|---|---|---|---|
| External Dimensions (W*D*H)(mm) | 1050*805*1950 | 1320*805*1950 | 1625*805*1950 | 1930*805*1950 |
| Internal Dimensions (W*D*H)(mm) | 950*490*574 | 1220*490*574 | 1525*490*574 | 1830*490*574 |
| Control System | Microprocessor controller with LCD display, graphical and digital display of the operating status of each function. | Microprocessor controller with LCD display, graphical and digital display of the operating status of each function. | Microprocessor controller with LCD display, graphical and digital display of the operating status of each function. | Microprocessor controller with LCD display, graphical and digital display of the operating status of each function. |
| Work Surface Height | 750mm | 750mm | 750mm | 750mm |
| Airflow Velocity | Adjustable, 0.2~0.5 m/s | Adjustable, 0.2~0.5 m/s | Adjustable, 0.2~0.5 m/s | Adjustable, 0.2~0.5 m/s |
| HEPA Filter / Efficiency | > 99.995% at particle size at 0.3 μm | > 99.995% at particle size at 0.3 μm | > 99.995% at particle size at 0.3 μm | > 99.995% at particle size at 0.3 μm |
| HEPA Filter / Dimensions(W*D*H)(mm) | 930*500*70 | 1190*500*70 | 1505*500*70 | 905*500*70 |
| HEPA Filter / Quantity | 1pc | 1pc | 1pc | 2pcs |
| Pre-Filter / Material | made of washable polyester fiber | made of washable polyester fiber | made of washable polyester fiber | made of washable polyester fiber |
| Pre-Filter / Dimensions(W*D*H)(mm) | 500*425*2 | 800*425*2 | 800*425*2 | 800*425*2 |
| Pre-Filter / Quantity | 1pc | 1pc | 1pc | 1pc |
| Sound Emission | ≤62dB(A) | ≤62dB(A) | ≤62dB(A) | ≤62dB(A) |
| Lighting Lamp | 20W*1; 450-650LX | 30W*1; 750-950LX | 30W*1; 750-950LX | 20W*2; 450-650LX |
| Lighting Lamp | LED type | LED type | LED type | LED type |
| UV Lamp | 20W*1 | 30W*1 | 30W*1 | 18W*2 |
| UV Lamp | With timing function, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | With timing function, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | With timing function, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. | With timing function, Interlock with front sliding sash. Emission of 253.7 nanometers for best sterilization effect. |
| Power Consumption | 165W | 305W | 405W | 510W |
| Power Consumption | The power consumption does not include external device connected via power socket | The power consumption does not include external device connected via power socket | The power consumption does not include external device connected via power socket | The power consumption does not include external device connected via power socket |
| Cabinet Construction | Main Body: Electro-galvanized steel with antimicrobial powder coating | Main Body: Electro-galvanized steel with antimicrobial powder coating | Main Body: Electro-galvanized steel with antimicrobial powder coating | Main Body: Electro-galvanized steel with antimicrobial powder coating |
| Cabinet Construction | Work Zone: Stainless steel, grade 304 | Work Zone: Stainless steel, grade 304 | Work Zone: Stainless steel, grade 304 | Work Zone: Stainless steel, grade 304 |
| Cabinet Construction | Manual Sliding Sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | Manual Sliding Sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | Manual Sliding Sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle | Manual Sliding Sash: 5 mm UV resistant tempered glass with counter-balance system and ergonomic handle |
| Cabinet Construction | Side Windows: 5 mm UV resistant tempered glass | Side Windows: 5 mm UV resistant tempered glass | Side Windows: 5 mm UV resistant tempered glass | Side Windows: 5 mm UV resistant tempered glass |
| Electricity | AC220V ±10%, 50/60Hz,1P | AC220V ±10%, 50/60Hz,1P | AC220V ±10%, 50/60Hz,1P | AC220V ±10%, 50/60Hz,1P |
| Standard Accessories | Base stand*1; LED lamp*1(only 2 for LCB-H6F); UV lamp*1(only 2 for LCB-H6F); Waterproof socket*2； Foma casters*4 | Base stand*1; LED lamp*1(only 2 for LCB-H6F); UV lamp*1(only 2 for LCB-H6F); Waterproof socket*2； Foma casters*4 | Base stand*1; LED lamp*1(only 2 for LCB-H6F); UV lamp*1(only 2 for LCB-H6F); Waterproof socket*2； Foma casters*4 | Base stand*1; LED lamp*1(only 2 for LCB-H6F); UV lamp*1(only 2 for LCB-H6F); Waterproof socket*2； Foma casters*4 |
| Optional Accessories | Wind speed sensor; Gas tap; Water tap; Casters with brakes; Hook and hook bar | Wind speed sensor; Gas tap; Water tap; Casters with brakes; Hook and hook bar | Wind speed sensor; Gas tap; Water tap; Casters with brakes; Hook and hook bar | Wind speed sensor; Gas tap; Water tap; Casters with brakes; Hook and hook bar |
| Shipping Weight（kg） | 220 | 260 | 300 | 340 |
| Shipping Dimensions（W*D*H）(mm) | 1190*1010*1430 | 1470*1020*1430 | 1010*1780*1440 | 2080*1020*1440 |
| Shipping Volume (m3) | 1.7 | 2.3 | 2.55 | 3.1 |
Manufacturer catalogue checked 2026-09-28.
