Brand: Infitek | Category: Scientific & Laboratory Equipment

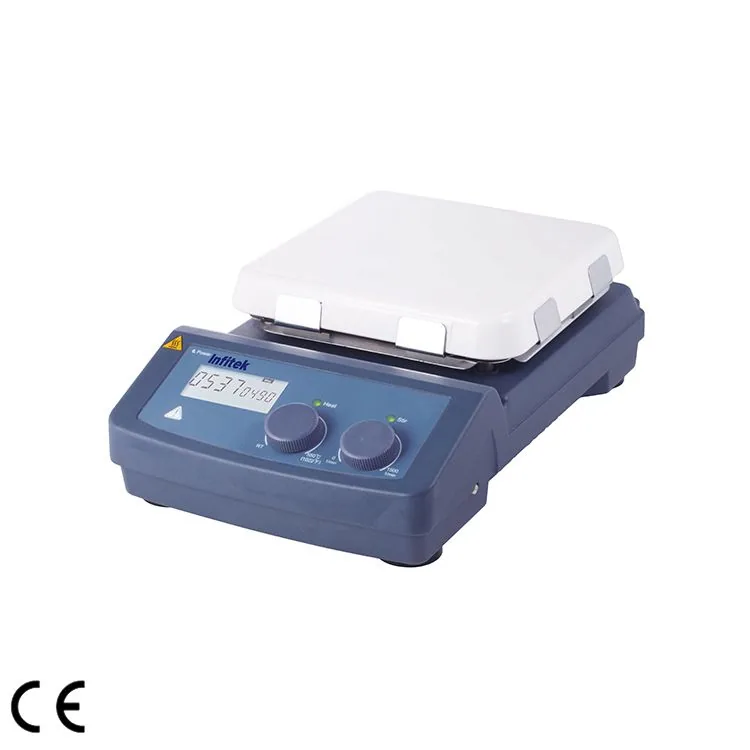

Infitek Hotplate Magnetic Stirrer, 500 Degree, HPS-550 Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | HPS-550P | HPS-550 |
|---|---|---|
| Work plate Dimension [W x D] | 184x184mm (7 inch) | 184x184mm (7 inch) |
| Work plate material | Glass ceramic | Glass ceramic |
| Motor type | Brushless DC motor | Shaded pole motor |
| Stirring positions | 1 | 1 |
| Max. stirring quantity, [H_(2)O] | 20L | 10L |
| Max. magnetic bar[length] | 80mm | 80mm |
| Speed range | 100-1500rpm resolution ±1rpm | 0-1500rpm |
| Speed display | LCD | Scale |
| Temperature display | LCD | LED |
| Heating temperature range | Room Temp.-550°C, increment 1°C | Room temp.-550°C, increment 5°C |
| Temperature control accuracy | ±1°C(<100°C) ±1%(>100°C) | ±10°C |
| Overheating protection | 580°C | 580°C |
| Temperature display accuracy | ±0.1°C | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) | PT1000 (accuracy ±0.2) |
| “Hot” warning | 50°C | 50°C |
| Data connector | RS232 | – |
| Protection class | IP21 | IP21 |
| Motor rating input | 18W | 15W |
| Motor rating output | 10W | 1.5W |
| Power | 1050W | 1030W |
| Heating output | 1000W | 1000W |
| Voltage | 100-120/200-240V 50/60Hz | 100-120/200-240V 50/60Hz |
| Dimension [WxDxH] | 215x360x112mm | 215x360x112mm |
| Package Dimension [WxDxH] | 500x370x280mm | 500x360x270mm |
| N.W. | 5.3kg | 4.5kg |
| G.W. | 7.5kg | 7kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH | 5-40°C, 80%RH |
Manufacturer catalogue checked 2026-09-28.
