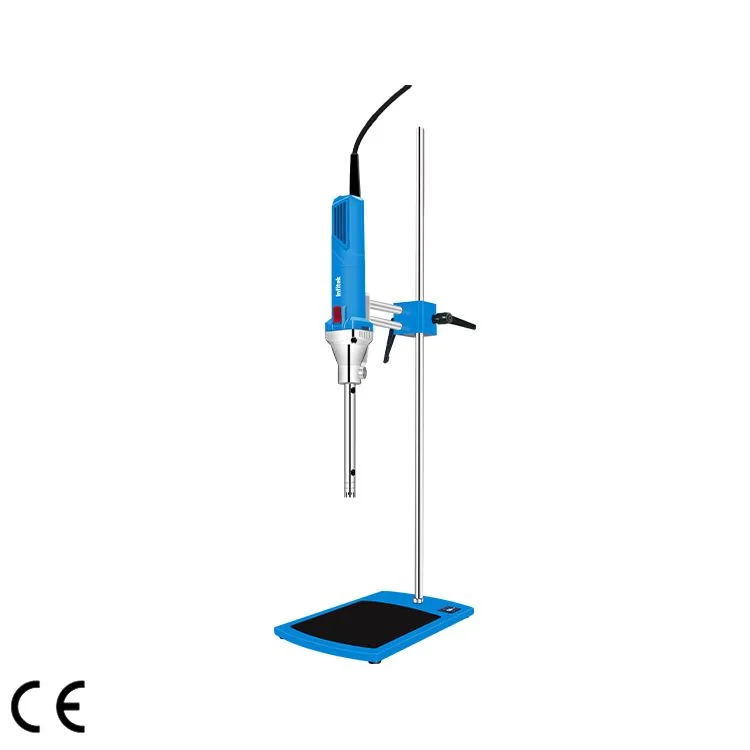

Infitek Homogenizer, HMG-25, HMG-25D
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Homogenizer, HMG-25, HMG-25D is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: HMG-25, HMG-25D. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HMG-25 | HMG-25D |
|---|---|---|
| Type | Basic | Digital |
| Speed Range | 7500~30000rpm | 4000~26000rpm |
| Speed Range (H_(2)O) | 7500~26000rpm | 4000~21000rpm |
| Speed Accuracy | No data | ±100rpm |
| Speed Control | Gear adjustment | Knob adjustment |
| Capacity | 0.2~10000ml (Optional) | 0.2~10000ml (Optional) |
| Time Display | No Data | LCD |
| Standard Configuration | Machine+working head+stand | Machine+working head+stand |
| Standard Working Head | 25G | 25G |
| Electricity | 200-240V (optional 110V), 50-60Hz | 200-240 (optional 110V), 50-60Hz |
| Motor Type | DC Brushless motor | DC Brushless motor |
| External Dimension | 410*φ90mm | 365*φ90mm |
| Net Weight | 2.6kg | 2.5kg |
| Package Dimension | 803*400*140mm | 810*410*150mm |
| Set Gross Weight | 8kg | 13kg |
| Specification | Processing Capacity (ml) | Viscosity (cP) | Stator Diameter (mm) | Linear Speed (m/s) | Material | Functional Description |
|---|---|---|---|---|---|---|
| 6G | 0.2-10 | 100 | 6 | 6 | 316 | Suitable for dispersion, fragmentation, homogenization of animal and plant tissues. |
| 8G | 1-60 | 100 | 8 | 8 | 316 | Suitable for dispersion, fragmentation, homogenization of animal and plant tissues. |
| 10G | 10-150 | 200 | 10 | 10 | 316 | Suitable for dispersion, fragmentation, homogenization of animal and plant tissues. |
| 18G | 50-1500 | 3000 | 18 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 18F | 100-1500 | 2000 | 18 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-low viscosity systems. |
| 20G | 50-1500 | 3000 | 20 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 20F | 50-1500 | 3000 | 20 | 19 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 25GST | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 25G | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-high viscosity systems. |
| 25F | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. in medium-low viscosity systems. |
| 25DG | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. under vacuum and pressurized environments. |
| 25DF | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for solid-liquid mixing, oil-water emulsification, cream preparation, emulsion polymerization, silicone oil emulsification, homogenization, etc. under vacuum and pressurized environments. |
| 25JX | 100-5000 | 8000 | 25 | 35 | 316 | Vertical convection shear mixing, suitable for medium-shear dispersion and solid/liquid mixing. |
| 25JQ | 100-5000 | 8000 | 25 | 35 | 316 | Vertical convection shear mixing, suitable for medium-shear dispersion and solid/liquid mixing. |
| 25T1 | 100-5000 | 8000 | 25 | 27 | 316 | Rapid liquid-liquid mixing and dissolution of suspended powders in medium viscosity systems. |
| 25T2 | 100-5000 | 5000 | 25 | 27 | 316 | Rapid liquid-liquid mixing and dissolution of suspended powders in medium viscosity systems. |
| 25T3 | 100-5000 | 5000 | 25 | 27 | 316 | Solid/liquid dispersion mixing, suitable for wet grinding, effectively reducing material size and increasing uniformity. |
| 25T4 | 100-5000 | 5000 | 25 | 27 | 316 | Ultra-strong dispersion and tissue disruption, suitable for pulverization, homogenization, dispersion, and shearing of animal and plant tissues. |
| 25T5 | 100-5000 | 5000 | 25 | 27 | 316 | Suitable for dispersion and homogenization in medium-high viscosity systems. |
| 25T6 | 100-5000 | 5000 | 25 | 27 | 316 | Ultra-high-speed stirring, suitable for dissolution and dispersion in medium-high viscosity systems. |
Manufacturer catalogue checked 2026-09-28.
