Brand: Infitek | Category: Scientific & Laboratory Equipment

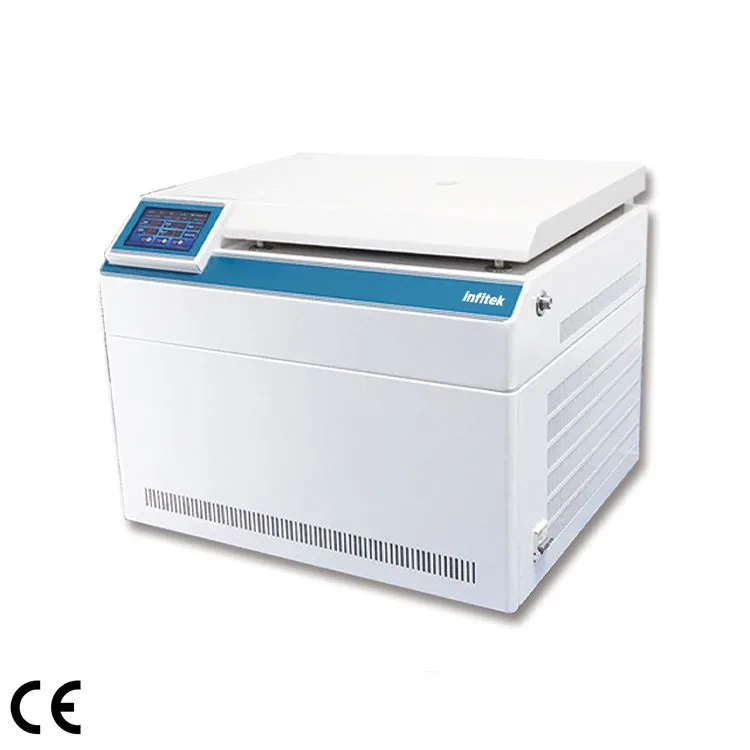

Infitek High Speed Refrigerated Centrifuge, CFGR-24JP is listed in VVON's laboratory centrifuges range for Bangladesh. Published models: CFGR-24JP. Published details include Max.Speed: 23500rpm; Max.RCF: 38487xg. Compare RCF, rotor format, sample capacity and temperature control. For a quotation, send the sample type, tube sizes, required RCF, rotor and refrigeration needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | CFGR-24JP |
|---|---|
| Max.Speed | 23500rpm |
| Max.RCF | 38487xg |
| Max.Capacity | 300mlx4 |
| Speed Accuracy | ±10rpm |
| Temp.Range | -20℃~40℃ |
| Temp.Accuracy | ±1℃ |
| Timing Range | 1s～99h59min59s/Jog (short spin) |
| Sound Emission | ≤ 58dB |
| Electricity | AC 220V, 50Hz, 10A |
| Power | 1800W |
| Dimension(W*D*H) | 610*570*505mm |
| N.W./G.W. | 93kg/155kg |
| Package Dimension(W*D*H) | 780*700*660mm |
| Rotor | Capacity | Max. Speed | Max. RCF |
|---|---|---|---|
| H0.136 | Blood Capillary L75mmx36tube | 12000rpm | 16904xg |
| H0.232 | 0.2mlx4x8tube | 14500rpm | 16219xg |
| H0.264 | 0.2mlx8x8tube | 13000rpm | 14926xg |
| H0.512 | 0.5mlx12 | 23500rpm | 29636xg |
| H0.524 | 0.5mlx24 | 22500rpm | 38487xg |
| H0.548 | 0.5mlx48 | 16000rpm | 22324xg |
| H0212 | 1.5/2.2mlx12 | 22500rpm | 38487xg |
| H0224 | 1.5/2.2mlx24 | 17500rpm | 29890xg |
| H0236 | 1.5/2.2mlx36 | 16000rpm | 25473xg |
| H0248 | 1.5/2.2mlx48 | 15500rpm | 26672xg |
| H0312 | 3mlx12 Vacuum Test Tube | 8000rpm | 4866xg |
| H0324 | 3mlx24 Vacuum Test Tube | 7000rpm | 4821xg |
| H0512 | 5mlx12 | 17000rpm | 21971xg |
| H0524 | 5mlx24 | 13500rpm | 17115xg |
| H0712 | 5mlx12 Vacuum Test Tube | 8000rpm | 7119xg |
| H0724 | 5mlx24 Vacuum Test Tube | 7000rpm | 5259xg |
| H1012 | 10mlx12 | 15500rpm | 23261xg |
| H1024 | 10mlx24 | 12500rpm | 16770xg |
| H1508 | 15mlx8 | 13000rpm | 17572xg |
| H3006 | 30mlx6 | 15000rpm | 22640xg |
| H5006 | 50mlx6 | 13000rpm | 18762xg |
| H5008 | 50mlx8 | 12000rpm | 16904xg |
| H1004 | 100mlx4 | 12000rpm | 16904xg |
| H1006 | 100mlx6 | 12000rpm | 16904xg |
| NO1: Swing Rotor Cross | 100mlx4 | 5000rpm | 4500xg |
| NO2: Swing Rotor Cross | 300mlx4 | 4500rpm | 3645xg |
| NO2: Swing Rotor Cross | Adapter: 250mlx4, 100mlx4, 50ml(conical)x12, 10ml Vacuum Test Tubex40 15ml(conical)x20, 3/5/7ml Vacuum Test Tubex56, 5ml((RIA tube))x76 | Adapter: 250mlx4, 100mlx4, 50ml(conical)x12, 10ml Vacuum Test Tubex40 15ml(conical)x20, 3/5/7ml Vacuum Test Tubex56, 5ml((RIA tube))x76 | Adapter: 250mlx4, 100mlx4, 50ml(conical)x12, 10ml Vacuum Test Tubex40 15ml(conical)x20, 3/5/7ml Vacuum Test Tubex56, 5ml((RIA tube))x76 |
| NO3: Microplate | 96wellx2/96wellx2x2 | 5000rpm | 4081xg |
Manufacturer catalogue checked 2026-09-28.
