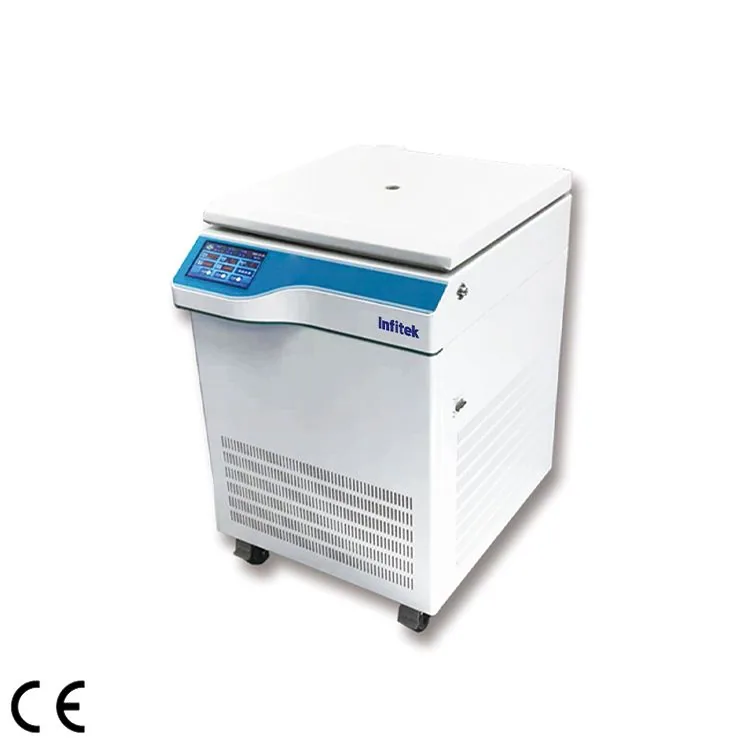

Infitek High Speed Refrigerated Centrifuge, CFGR-24JLP
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek High Speed Refrigerated Centrifuge, CFGR-24JLP is listed in VVON's laboratory centrifuges range for Bangladesh. Published models: CFGR-24JLP. Published details include Max.Speed: 24000rpm; Max.RCF: 40217xg. Compare RCF, rotor format, sample capacity and temperature control. For a quotation, send the sample type, tube sizes, required RCF, rotor and refrigeration needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | CFGR-24JLP |
|---|---|
| Max.Speed | 24000rpm |
| Max.RCF | 40217xg |
| Max.Capacity | 750mlx4 |
| Speed Accuracy | ±10rpm |
| Temp.Range | -20℃~40℃ |
| Temp.Accuracy | ±1℃ |
| Timing Range | 1s～99h59min59s/Jog (short spin) |
| Sound Emission | ≤ 58dB |
| Electricity | AC 220V, 50Hz, 10A |
| Power | 2000W |
| Dimension(W*D*H) | 750*590*890mm |
| N.W./G.W. | 125kg/155kg |
| Package Dimension(W*D*H) | 840*710*1050mm |
| Rotor | Capacity | Max. Speed | Max. RCF |
|---|---|---|---|
| Angle Rotor | Blood Capillary 175mmx36 tube | 12000rpm | 16904×g |
| Angle Rotor | 0.2mlx4x8tube | 14500rpm | 16219×g |
| Angle Rotor | 0.2mlx8x8tube | 13000rpm | 14926×g |
| Angle Rotor | 0.5mlx12 | 24000rpm | 30910×g |
| Angle Rotor | 0.5mlx24 | 23000rpm | 40217×g |
| Angle Rotor | 0.5mlx48 | 16000rpm | 22324×g |
| Angle Rotor | 1.5/2.2mlx12 | 23000rpm | 40217×g |
| Angle Rotor | 1.5/2.2mlx24 | 17500rpm | 29890×g |
| Angle Rotor | 1.5/2.2mlx36 | 16000rpm | 25473×g |
| Angle Rotor | 1.5/2.2mlx48 | 15500rpm | 26672×g |
| Angle Rotor | 3mlx12 Vacuum Test Tube | 8000rpm | 4866×g |
| Angle Rotor | 3mlx24 Vacuum Test Tube | 7000rpm | 4821×g |
| Angle Rotor | 5mlx12 | 17000rpm | 21971×g |
| Angle Rotor | 5mlx24 | 13500rpm | 17115×g |
| Angle Rotor | 5mlx12 Vacuum Test Tube | 8000rpm | 7119×g |
| Angle Rotor | 5mlx24 Vacuum Test Tube | 7000rpm | 5259×g |
| Angle Rotor | 10mlx12 | 15500rpm | 23261×g |
| Angle Rotor | 10mlx24 | 12500rpm | 16770×g |
| Angle Rotor | 15mlx8 | 13000rpm | 17572×g |
| Angle Rotor | 30mlx6 | 15000rpm | 22640×g |
| Angle Rotor | 50mlx6 | 13000rpm | 18762×g |
| Angle Rotor | 50mlx8 | 12000rpm | 16904×g |
| Angle Rotor | 100mlx4 | 12000rpm | 16904×g |
| Angle Rotor | 100mlx6 | 12000rpm | 16904×g |
| NO1: Swing Rotor Cross | 750mlx4 | 4200rpm | 3727×g |
| NO1: Swing Rotor Cross | Adapter: 500mlx4, 250mlx4(conyn tube), 100mlx12, 50ml(conical)x20, 50ml(round bottom)x28, 15/20ml(conical)x56, 15ml vacuum test tube x76, 5ml vacuum test tube x96, 5ml((RIA tube))x148 | Adapter: 500mlx4, 250mlx4(conyn tube), 100mlx12, 50ml(conical)x20, 50ml(round bottom)x28, 15/20ml(conical)x56, 15ml vacuum test tube x76, 5ml vacuum test tube x96, 5ml((RIA tube))x148 | Adapter: 500mlx4, 250mlx4(conyn tube), 100mlx12, 50ml(conical)x20, 50ml(round bottom)x28, 15/20ml(conical)x56, 15ml vacuum test tube x76, 5ml vacuum test tube x96, 5ml((RIA tube))x148 |
| NO2: Swing Rotor Cross | 500mlx4 | 4200rpm | 3451×g |
| NO2: Swing Rotor Cross | Adapter: 250mlx4, 100mlx8, 50mlx16, 10ml vacuum test tube x56, 15ml(conical)x40, 3/5/7ml vacuum test tube x68, 5ml((RIA tube))x96 | Adapter: 250mlx4, 100mlx8, 50mlx16, 10ml vacuum test tube x56, 15ml(conical)x40, 3/5/7ml vacuum test tube x68, 5ml((RIA tube))x96 | Adapter: 250mlx4, 100mlx8, 50mlx16, 10ml vacuum test tube x56, 15ml(conical)x40, 3/5/7ml vacuum test tube x68, 5ml((RIA tube))x96 |
| NO3: Swing Rotor Cross | 300mlx4 | 4500rpm | 3645×g |
| NO3: Swing Rotor Cross | Adapter: 250mlx4, 100mlx4, 50ml(conical)x12, 10ml vacuum test tube x40, 15ml(conical)x20, 3/5/7ml vacuum test tube x56, 5ml((RIA tube))x76 | Adapter: 250mlx4, 100mlx4, 50ml(conical)x12, 10ml vacuum test tube x40, 15ml(conical)x20, 3/5/7ml vacuum test tube x56, 5ml((RIA tube))x76 | Adapter: 250mlx4, 100mlx4, 50ml(conical)x12, 10ml vacuum test tube x40, 15ml(conical)x20, 3/5/7ml vacuum test tube x56, 5ml((RIA tube))x76 |
| NO4: Microplate | 96wellx2/96wellx2x2 | 5000rpm | 4081×g |
| NO5: Microplate | 96wellx4/96wellx4x2 | 4000rpm | 3667×g |
Manufacturer catalogue checked 2026-09-28.
