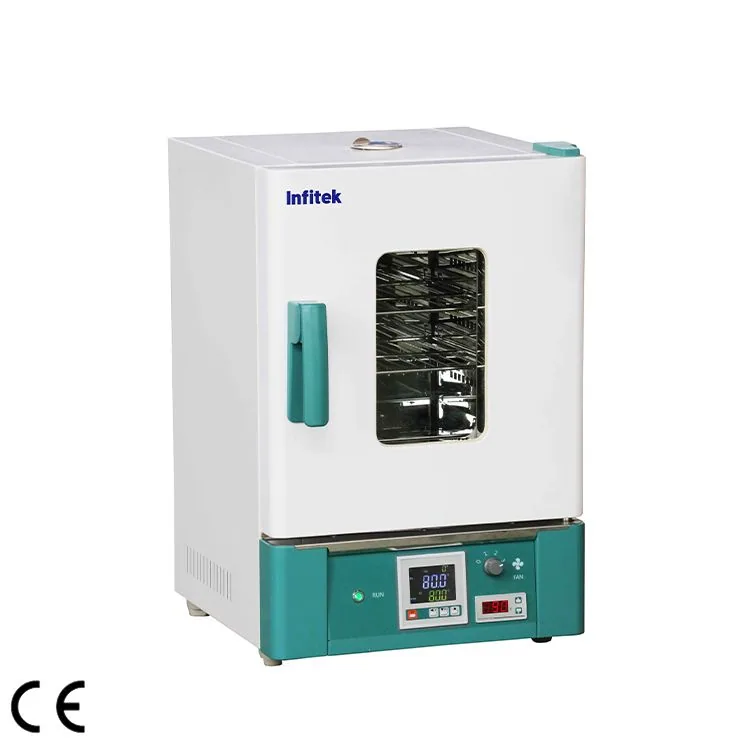

Infitek Heating Incubator, ICB-F Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Heating Incubator, ICB-F Series is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-F30, ICB-F45, ICB-F65, ICB-F85, ICB-F125, ICB-F230. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-F30 | ICB-F45 | ICB-F65 | ICB-F85 | ICB-F125 | ICB-F230 |
|---|---|---|---|---|---|---|
| Capacity (L) | 30 | 45 | 65 | 85 | 125 | 230 |
| Circulation Mode | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection | Forced convection |
| Dimension (W*D*H) / Internal (mm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 | 600*500*750 |
| Dimension (W*D*H) / External (mm) | 460*510*695 | 500*550*735 | 550*550*840 | 590*610*830 | 636*680*915 | 735*835*1115 |
| Temperature / Range (℃) | RT+5-120 | RT+5-120 | RT+5-120 | RT+5-120 | RT+5-120 | RT+5-120 |
| Temperature / Fluctuation (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Temperature / Resolution (℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Uniformity (℃) | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
| Temperature / Sensor | PT100 | PT100 | PT100 | PT100 | PT100 | PT100 |
| Controller / Temp. control mode | Dual-stage Intelligent PID | Dual-stage Intelligent PID | Dual-stage Intelligent PID | Dual-stage Intelligent PID | Dual-stage Intelligent PID | Dual-stage Intelligent PID |
| Controller / Temp. setting mode | Touch button setting | Touch button setting | Touch button setting | Touch button setting | Touch button setting | Touch button setting |
| Controller / Temp. display mode | Measured temperature: Upper LCD; Set temperature: Lower LCD | Measured temperature: Upper LCD; Set temperature: Lower LCD | Measured temperature: Upper LCD; Set temperature: Lower LCD | Measured temperature: Upper LCD; Set temperature: Lower LCD | Measured temperature: Upper LCD; Set temperature: Lower LCD | Measured temperature: Upper LCD; Set temperature: Lower LCD |
| Controller / Timer | 0-9999min (with timing wait function) | 0-9999min (with timing wait function) | 0-9999min (with timing wait function) | 0-9999min (with timing wait function) | 0-9999min (with timing wait function) | 0-9999min (with timing wait function) |
| Controller / Operation function | Fixed temperature operation, Timing function, Auto stop | Fixed temperature operation, Timing function, Auto stop | Fixed temperature operation, Timing function, Auto stop | Fixed temperature operation, Timing function, Auto stop | Fixed temperature operation, Timing function, Auto stop | Fixed temperature operation, Timing function, Auto stop |
| Controller / Additional functions | Digital temperature limiter, 4-level 3-speed adjustable fan (No fan speed control for Model 230), Sensor deviation correction, Temp. overshoot self-tuning, Internal parameter locking, Power-off parameter memory | Digital temperature limiter, 4-level 3-speed adjustable fan (No fan speed control for Model 230), Sensor deviation correction, Temp. overshoot self-tuning, Internal parameter locking, Power-off parameter memory | Digital temperature limiter, 4-level 3-speed adjustable fan (No fan speed control for Model 230), Sensor deviation correction, Temp. overshoot self-tuning, Internal parameter locking, Power-off parameter memory | Digital temperature limiter, 4-level 3-speed adjustable fan (No fan speed control for Model 230), Sensor deviation correction, Temp. overshoot self-tuning, Internal parameter locking, Power-off parameter memory | Digital temperature limiter, 4-level 3-speed adjustable fan (No fan speed control for Model 230), Sensor deviation correction, Temp. overshoot self-tuning, Internal parameter locking, Power-off parameter memory | Digital temperature limiter, 4-level 3-speed adjustable fan (No fan speed control for Model 230), Sensor deviation correction, Temp. overshoot self-tuning, Internal parameter locking, Power-off parameter memory |
| Structure / Inner chamber | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel | Mirror stainless steel |
| Structure / Outer shell | Cold-rolled steel with electrostatic spray coating | Cold-rolled steel with electrostatic spray coating | Cold-rolled steel with electrostatic spray coating | Cold-rolled steel with electrostatic spray coating | Cold-rolled steel with electrostatic spray coating | Cold-rolled steel with electrostatic spray coating |
| Structure / Insulation layer | High-quality foam board | High-quality foam board | High-quality foam board | High-quality foam board | High-quality foam board | High-quality foam board |
| Structure / Heater | Stainless steel electric heating tube | Stainless steel electric heating tube | Stainless steel electric heating tube | Stainless steel electric heating tube | Stainless steel electric heating tube | Stainless steel electric heating tube |
| Structure / Exhaust hole | φ35mm top (with function of test hole) | φ35mm top (with function of test hole) | φ35mm top (with function of test hole) | φ35mm top (with function of test hole) | φ35mm top (with function of test hole) | φ35mm top (with function of test hole) |
| Standard/Maximum Shelf | 2/5 | 2/6 | 2/8 | 2/8 | 2/11 | 2/17 |
| Load per Shelf | 15kg | 15kg | 15kg | 15kg | 15kg | 15kg |
| Shelf Spacing | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Safety Device | Independent digital temperature limiter, Over-temperature audio-visual alarm | Independent digital temperature limiter, Over-temperature audio-visual alarm | Independent digital temperature limiter, Over-temperature audio-visual alarm | Independent digital temperature limiter, Over-temperature audio-visual alarm | Independent digital temperature limiter, Over-temperature audio-visual alarm | Independent digital temperature limiter, Over-temperature audio-visual alarm |
| Electricity / Voltage / Frequency | AC 220V, 50/60Hz | AC 220V, 50/60Hz | AC 220V, 50/60Hz | AC 220V, 50/60Hz | AC 220V, 50/60Hz | AC 220V, 50/60Hz |
| Electricity / Current rating | 1.8A | 2.3A | 3.2A | 4.1A | 5A | 6.8A |
| Electricity / Power rating | 0.4kW | 0.5kW | 0.7kW | 0.9kW | 1.1kW | 1.5kW |
| Package Dimension (W*D*H) (mm) | 540*575*855 | 580*615*895 | 635*625*995 | 680*685*1000 | 710*730*1100 | 857*885*1287 |
| N.W. / G.W. (kg) | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 |
| Optional Accessories | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller | Shelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller |
Manufacturer catalogue checked 2026-09-28.
