Brand: Infitek | Category: Scientific & Laboratory Equipment

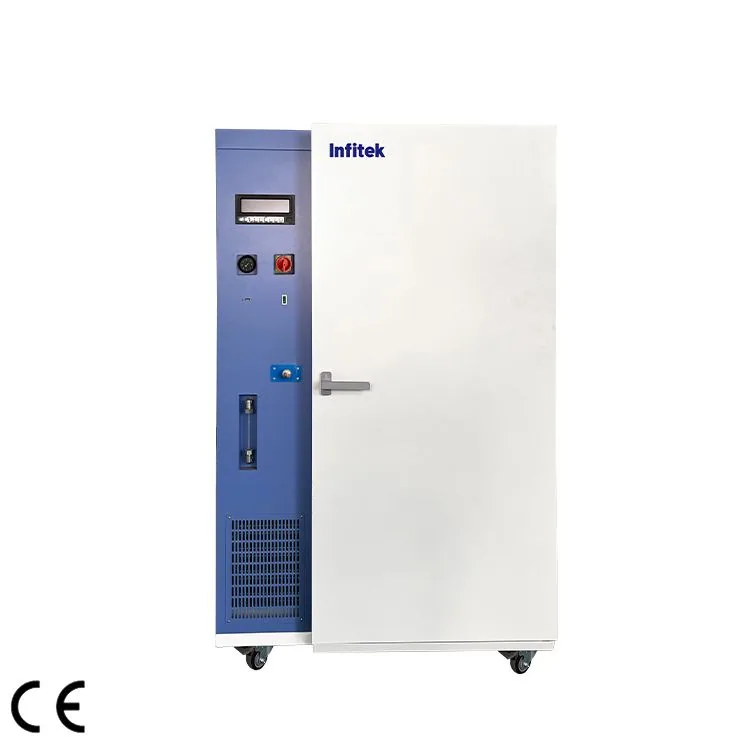

Infitek Climate Chamber, ICB-CC-YC Series is listed in VVON's laboratory incubators & growth chambers range for Bangladesh. Published models: ICB-CC253YC, ICB-CC412YC, ICB-CC722YC, ICB-CC1022YC. Compare chamber capacity and required temperature, atmosphere, humidity or agitation. For a quotation, send the application, working volume, temperature and atmosphere requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | ICB-CC253YC | ICB-CC253YC | ICB-CC412YC | ICB-CC722YC | ICB-CC722YC | ICB-CC1022YC |
|---|---|---|---|---|---|---|
| Capacity (L) | 253 | 253 | 412 | 722 | 722 | 1022 |
| Circulation Mode | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) | Forced Convection (Balanced Type) |
| Dimension (W*D*H) / Internal (mm) | 640*460*860 | 640*460*860 | 560*530*1390 | 980*530*1390 | 980*530*1390 | 980*750*1390 |
| Dimension (W*D*H) / External (mm) | 800*780*1570 | 800*780*1570 | 1025*810*1735 | 1445*810*1735 | 1445*810*1735 | 1445*1030*1735 |
| Temperature / Range (℃) | With lighting:5~50; Without lighting: 0~50 | With lighting:5~50; Without lighting: 0~50 | With lighting:5~50; Without lighting: 0~50 | With lighting:5~50; Without lighting: 0~50 | With lighting:5~50; Without lighting: 0~50 | With lighting: 10~50; Without lighting: 5~50 |
| Temperature / Resolution (℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Temperature / Fluctuation (℃) | ±0.8 | ±0.8 | ±0.8 | ±0.8 | ±0.8 | ±1 |
| Humidity / Range | 30%RH~90%RH | 30%RH~90%RH | 30%RH~90%RH | 30%RH~90%RH | 30%RH~90%RH | 30%RH~90%RH |
| Humidity / Fluctuation | ±3%RH~±5%RH | ±3%RH~±5%RH | ±3%RH~±5%RH | ±3%RH~±5%RH | ±3%RH~±5%RH | ±3%RH~±5%RH |
| Light Intensity Control (5-level adjustable) | 320μmol/m²/s (15 cm from light source) | 320μmol/m²/s (15 cm from light source) | 320μmol/m²/s (15 cm from light source) | 320μmol/m²/s (15 cm from light source) | 320μmol/m²/s (15 cm from light source) | 320μmol/m²/s (15 cm from light source) |
| Operating Ambient Temperature (℃) | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 |
| Shelves (Standard) | 2 | 3 | 3 | 3 | 3 | 3 |
| Shelf-type Lamp Holder | Two layers | Three layers | Three layers | Three layers | Three layers | Three layers |
| Test Hole (mm) | φ40 | φ40 | φ40 | φ40 | φ40 | φ40 |
| Electricity / Voltage/ Frequency | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz | AC 220V, 50Hz |
| Electricity / Consumption (W) | 2300 | 2875 | 2875 | 2875 | 4025 | 4370 |
| Safety Protection / Refrigeration System | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. | Compressor overheating, over-current and over-pressure protection; condenser fan overheating protection. |
| Safety Protection / Others | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection; Water shortage protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection; Water shortage protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection; Water shortage protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection; Water shortage protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection; Water shortage protection. | Main power phase sequence and phase loss protection; Leakage and short-circuit protection; Overload protection; Water shortage protection. |
Manufacturer catalogue checked 2026-09-28.
