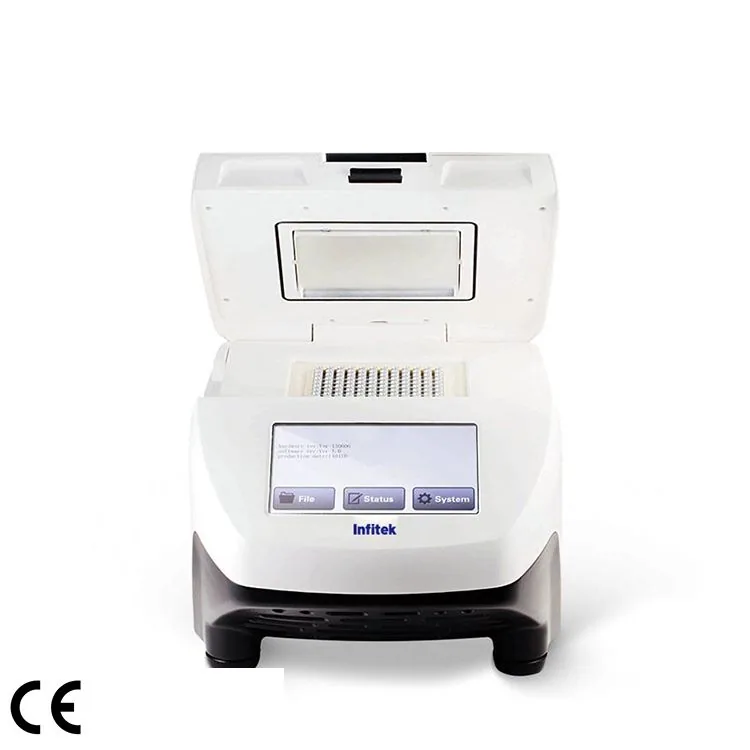

Infitek Gradient PCR Machine, PCRTC-GP
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Gradient PCR Machine, PCRTC-GP is listed in VVON's pcr & nucleic acid equipment range for Bangladesh. Published details include Sample Capacity: 96×0.2mL PCR tube | 12×0.2mL PCR-8 strips | 1×0.2mL 96-well PCR plate; Heating Temperature Range: 0-105℃. Compare sample throughput, reaction format, detection channels and workflow compatibility. For a quotation, send the application, sample throughput, plate or tube format and detection requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | PCRTC-GP |
|---|---|
| Sample Capacity | 96×0.2mL PCR tube | 12×0.2mL PCR-8 strips | 1×0.2mL 96-well PCR plate |
| Heating Temperature Range | 0-105℃ |
| Lid Temperature Range | 30-115℃ |
| Temperature Display Accuracy | ±0.1℃ |
| Temperature Control Accuracy | ±0.1℃ |
| Temperature uniformity[at 55℃] | ±0.2℃ |
| Max. Heating/Cooling Rate | 5℃/Sec |
| Gradient Temperature Setting Range | 30-105℃ |
| Gradient Range | 1-42℃，Turn off gradient on input 0 |
| Adapter block material | Aluminum |
| Display | 7″ LCD 1024×600 |
| Input | Touch panel |
| Communication interface | USB/Wifi |
| Number of program storage | 20000+（USB FLASH） |
| User defined file system | Up to 30 steps and 99 cycles in a single program |
| Power off protection | Yes |
| Power Supply | 100~120V/200~240V，50/60Hz 600W |
| Dimension [D×W×H] | 296x370x295mm |
| Weight | 9.5kg |
Manufacturer catalogue checked 2026-09-28.
