Brand: Infitek | Category: Medical Equipment

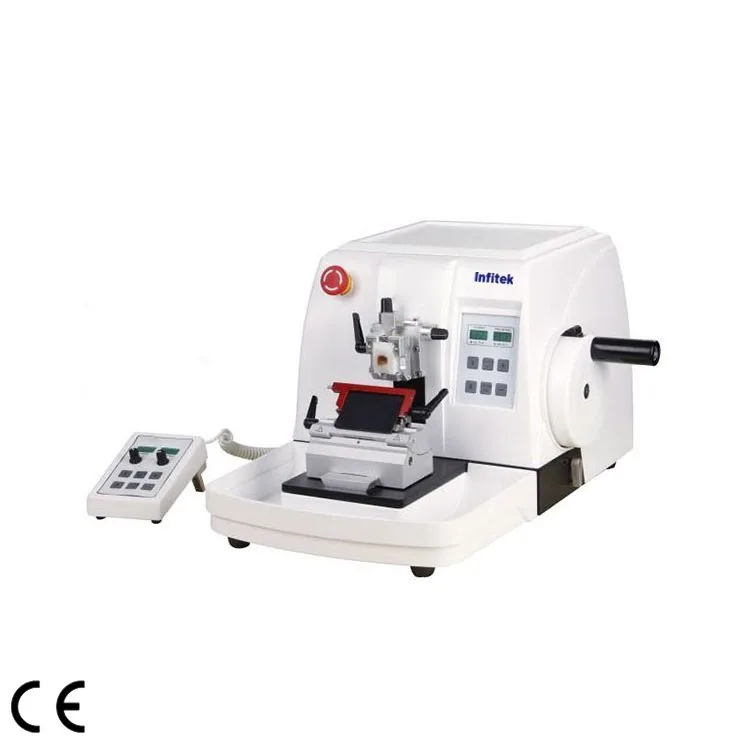

Infitek Fully Automated Microtome, RMT-FA398 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: RMT-FA398. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RMT-FA398 |
|---|---|
| Section Thickness Setting Range | 0.25—100μm; 0.25—2.5μm increment 0.25μm; 2.5—5μm increment 0.5μm; 5.0—10μm increment 1μm; 10—30μm increment 2μm; 30—60μm increment 5μm; 60—100μm increment 10μm |
| Trimming Thickness Setting Range | 1—600μm; 1—10μm increment 1μm; 10—20μm increment 2μm; 20—50μm increment 5μm; 50—150μm increment 10μm; 150—600μm increment 50μm |
| Retraction Setting Range | 0—50μm ( 0 is off ); 5-10-15—50 (optional) |
| Minimum Setting of Sectioning Thickness | 0.25μm |
| Horizontal Feed | 28mm |
| Vertical Specimen Stroke | 70mm |
| Maximum movement of tool holder base | 60mm (front to back) |
| Maximum left and right movement of the knife holder | 23mm |
| Specimen Orientation | XY – 8° |
| Maximum Specimen Size | Standard wax block clip 39mm×40mm （Other sizes available） |
| Feed rate | slow speed: 15000um/s, fast speed: 3500um/s |
| Automatic sectioning speed | adjustable from level 0 to 15 |
| Emergency braking system | Yes |
| Slice accuracy | ±5% |
| Automatic slicing speed | adjustable from 0-15 levels |
| Working Voltage | AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz |
| Power | 150W |
| Dimensions | 580× 475× 340mm(W×D×H) |
| Net Weight | 41kg |
Manufacturer catalogue checked 2026-09-28.
