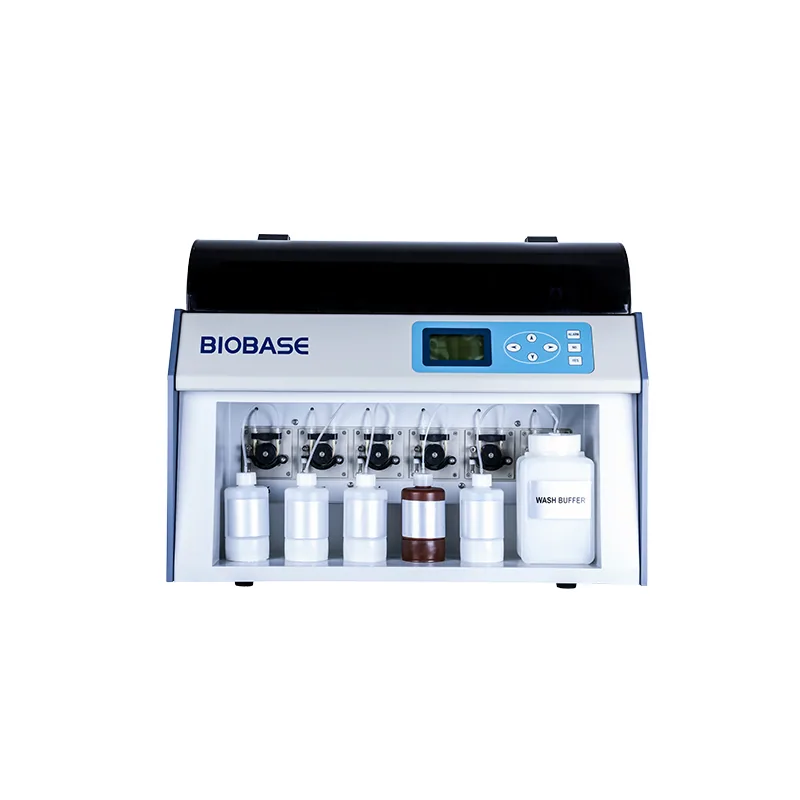

Brand: BIOBASE | Category: Medical Equipment
BIOBASE Auto Blot System (Western Blot System) is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: XD236. Published details include Test Strip Capacity: 1-36 or 1-30 strip; Programming Capacity: ≥ 38+2 (fixed procedure). Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | XD236 |
|---|---|
| Test Strip Capacity | 1-36 or 1-30 strip |
| Programming Capacity | ≥ 38+2 (fixed procedure) |
| Number of Programmable Steps | 20 steps* 6 working phases |
| Liquid Dispensation System | Standard 6-channel pumps liquid dispensing system |
| Pump Dispensing Range / Increment | 250μl ~ 3000μl, 1μl increment |
| Accuracy of The Pump Dispensing | ±3.0% (dispensing volume 2000μl ) |
| Precision of The Pump Dispensing | CV ≤ 5.0% (dispensing volume 2000μl) |
| Quantitative Correction | Quantitative correction |
| Incubation Time / Increment | 0~24 hours / 1 min increment; can be recycled |
| Incubation Time Display | Hours, minutes and seconds |
| Shaking Speed | 3 gear optional |
| Temperature Control of Shaker | Accuracy ± 1.5 ℃, Fluctuation ≤ 0.2 ℃ at 37 ℃; Accuracy ± 1.5 ℃, Fluctuation ≤ 0.25 ℃ at 30 ℃ or 25 ℃ |
| Display | Dot matrix LCD with backlight |
| Communication | RS232 Interface, Baud 9600, Data bit 8, stop bit 1, parity check: NO |
| Alarming | Alarms for reagents dispensing, waste overflow, work ending etc. |
| Cleaning | Automatic rinsing when necessary |
| Reagent Bottle Capacity | 200ml *5 |
| Wash Bottle Capacity | 1000 ml* 1 |
| Waste Bottle Capacity | 2000ml*1 (airtight negative-pressure liquid waste bottle) |
| Cross Contamination | When negative and positive samples are tested in turn, the negative samples should not show positive bands |
| Working Condition | Indoor use, altitude ≤ 3000m, 5~40 ℃, RH ≤ 80% at temperature < 31 ℃ |
| Power Supply | 110~240V, 50/60Hz, 250VA |
| External Size(W*D*H) | 630*500*400mm |
| Packed Size(W*D*H) | 840*630*840mm |
| Net weight | 33kg |
| Gross weight | 70kg |
Manufacturer catalogue checked 2026-09-28.
