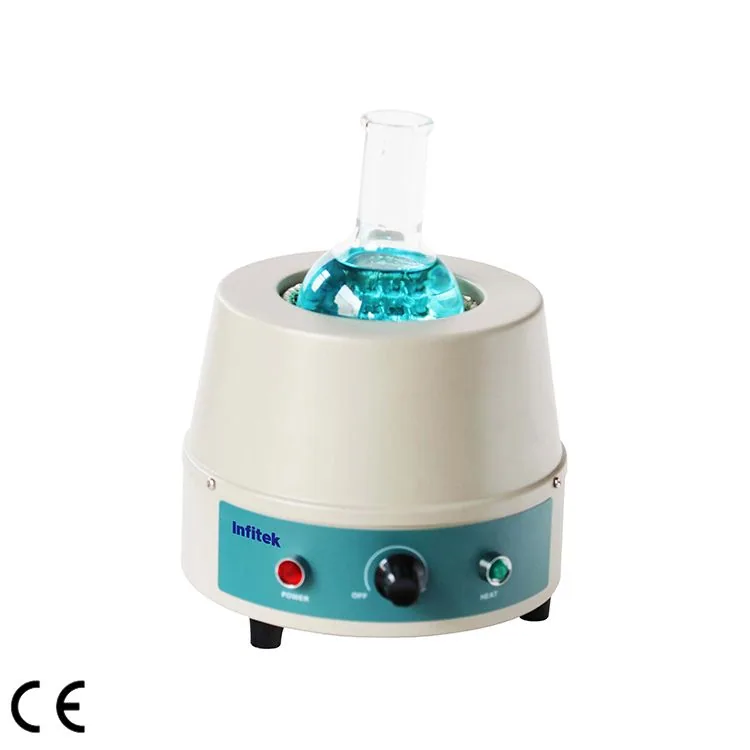

Infitek Electronic Control Heating Mantle, HMA Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Electronic Control Heating Mantle, HMA Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: HMA-1, HMA-2, HMA-5, HMA-10, HMA-20, HMA-40. Compare the remaining models in the specification tables. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HMA-1 | HMA-2 | HMA-5 | HMA-10 | HMA-20 | HMA-40 | HMA-60 | HMA-100 | HMA-200 | HMA-400 |
|---|---|---|---|---|---|---|---|---|---|---|
| Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Heating Mode | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction |
| Surface Max. Temp.(℃) | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Heating element | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire |
| Thermal insulation cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton |
| Shell | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying | Cold rolled steel plate, surface spraying |
| Heat power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 1.2 | 2.5 |
| Working Mode | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous |
| Exterior Size (mm) | ϕ220×165 | ϕ220×165 | ϕ220×165 | ϕ220×165 | ϕ280×220 | ϕ330×230 | ϕ340×245 | ϕ350×250 | ϕ425×320 | ϕ470×340 |
| Packing Size (mm) | 250*250*240 | 250*250*240 | 250*250*240 | 250*250*240 | 290x290x300 | 340x340x350 | 360*360*310 | 390x390x310 | 430x430x350 | 510x510x380 |
| Voltage(V) | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 100 ~ 120V or 200 ~ 240V | 200 ~240V | 200 ~240V | 200 ~240V | 200 ~240V |
| N.W.(Kg) | 2.5 | 2.5 | 2.5 | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 9.8 | 16 |
| G.W. (Kg) | 2.8 | 2.8 | 2.8 | 2.8 | 6 | 7 | 8 | 9.2 | 12 | 20 |
Manufacturer catalogue checked 2026-09-28.
