Brand: Infitek | Category: Scientific & Laboratory Equipment

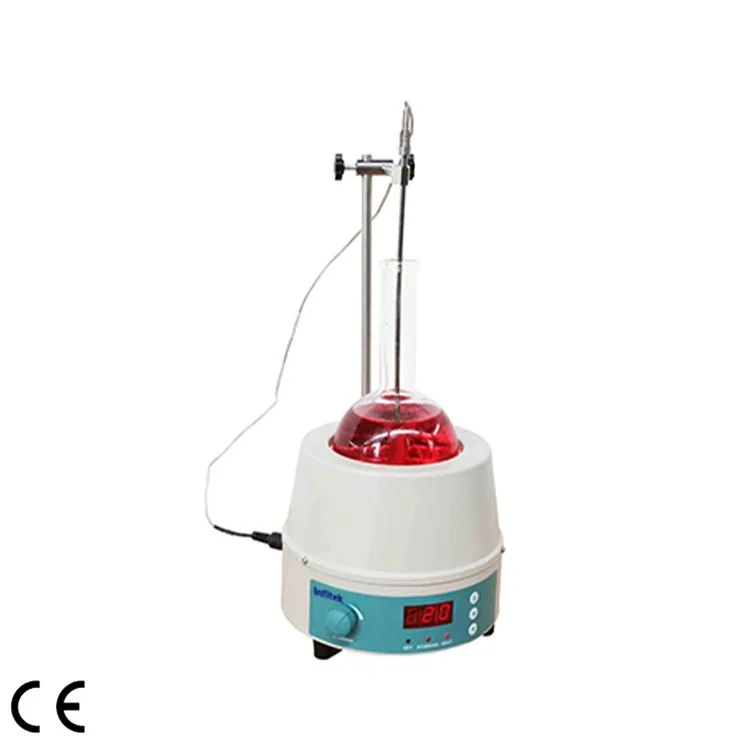

Infitek Digital Magnetic Stirring Heating Mantle, HMSD Series is listed in VVON's stirrers shakers & homogenisers range for Bangladesh. Published models: HMSD-1, HMSD-2, HMSD-5, HMSD-10, HMSD-20, HMSD-40. Compare the remaining models in the specification tables. Match mixing method, sample volume, speed range and vessel compatibility. For a quotation, send the sample type, sample volume, mixing method and vessel format. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HMSD-1 | HMSD-2 | HMSD-5 | HMSD-10 | HMSD-20 | HMSD-40 | HMSD-60 | HMSD-60 | HMSD-100 | HMSD-200 | HMSD-400 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Function / Capacity(ml) | 50 | 100 | 250 | 500 | 1000 | 2000 | 3000 | 3000 | 5000 | 10000 | 20000 |
| Function / Heating Mode | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction | Surface heat-conduction |
| Function / Surface Max. Temp.( ℃) | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ | 450℃ |
| Function / Temperature control range | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ | RT+20～250℃ |
| Function / Speed range | 0～1600rpm | 0～1600rpm | 0～1600rpm | 0～1600rpm | 0～1600rpm | 0～1600rpm | 0～1600rpm | 0～1600rpm | 0～1600rpm | 0～1600rpm | 0～1600rpm |
| Structure / Heating element | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire | Nichrome wire |
| Structure / Stir bar | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE |
| Structure / Shell(Insulation Layer) | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton | High quality aluminum silicate cotton |
| Structure / Motor power | 0.01kW | 0.01kW | 0.01kW | 0.01kW | 0.01kW | 0.01kW | 0.01kW | 0.01kW | 0.01kW | 0.01kW | 0.01kW |
| Structure / Heating power (kW) | 0.08 | 0.1 | 0.15 | 0.25 | 0.35 | 0.45 | 0.6 | 0.8 | 0.8 | 1.2 | 2.5 |
| Controller / Working mode | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous | Continuous |
| Specification / Exterior size (mm) | ø220×165 | ø220×165 | ø220×165 | ø220×165 | ø280×220 | ø330×230 | ø340×245 | ø350×250 | ø350×250 | ø425×320 | ø470×340 |
| Specification / Packing size (mm) | 260*260*220 | 260*260*220 | 260*260*220 | 260*260*220 | 290×290×300 | 340×340×350 | 360×360×300 | 390×390×310 | 390×390×310 | 430×430×350 | 700×575×460 |
| Specification / Voltage(V) | 100～120V or 200～240V | 100～120V or 200～240V | 100～120V or 200～240V | 100～120V or 200～240V | 100～120V or 200～240V | 100～120V or 200～240V | 200～240V | 200～240V | 200～240V | 200～240V | 200～240V |
| Specification / N.W. (Kg) | 2.5 | 2.5 | 2.5 | 2.5 | 5.5 | 6.5 | 7.5 | 8 | 8 | 9.8 | 16 |
| Specification / G.W. (Kg) | 3 | 3 | 3 | 3 | 6 | 7 | 8 | 9.2 | 9.2 | 12 | 20 |
Manufacturer catalogue checked 2026-09-28.
