Brand: Infitek | Category: Scientific & Laboratory Equipment

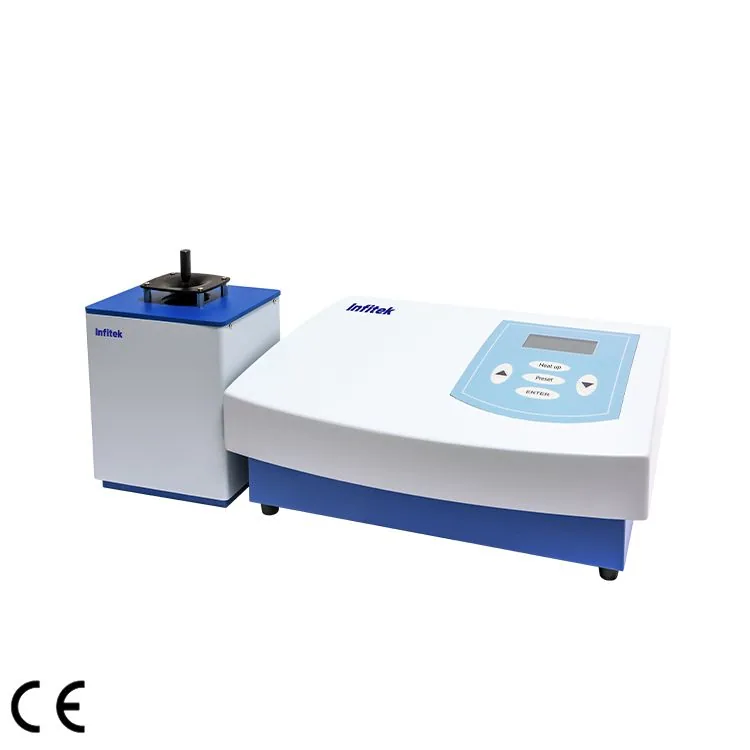

Infitek Dropping-point and softening-point apparatus, MTP-DP1 is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: MTP-DP1. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MTP-DP1 |
|---|---|
| Measuring range | Room temperature~300℃ |
| Minimum digital display | 0.1℃ |
| Linear heating rates | 0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0 ℃/min |
| Furnace temperature | ≤200℃±0.5℃; >200℃ ±1℃ |
| The dimension of cup | Φ9.9mm (inside diameter), R4.6 ±0.1mm (bottom radius) |
| Hole size | Φ2.80mm (dropping-point), Φ6.35mm (softening-point), Φ5.00mm (user choose) |
| Ball | Lead ball (Φ3mm, 3.2±0.1g, according to ASTM); Steel ball (3.8”, according to GB2728-1988; 5/6” user choose) |
| Package Dimension (W*D*H) | 740*390*300mm |
| G.W. | 12.6kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Infitek equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
